Datamax I-Class Mark II Operator's Manual page 30

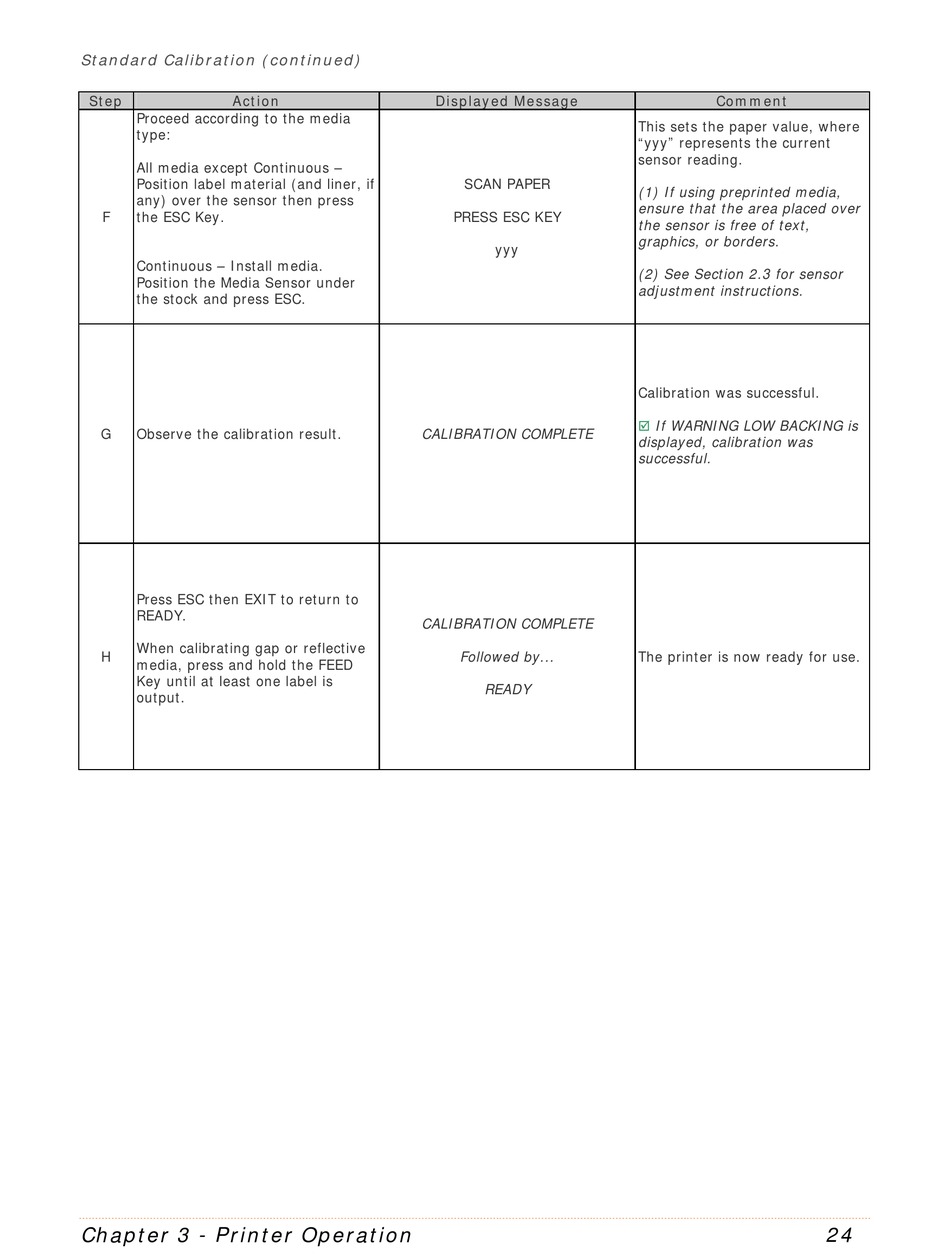

Standard Calibration (continued)
Step Action
Proceed according to the media
type:
All media except Continuous –
Position label material (and liner, if
any) over the sensor then press
F the ESC Key.
Continuous – Install media.
Position the Media Sensor under
the stock and press ESC.
G Observe the calibration result.
Press ESC then EXIT to return to
READY.
When calibrating gap or reflective
H
media, press and hold the FEED
Key until at least one label is
output.
Chapter 3 - Printer Operation
Displayed Message
SCAN PAPER
PRESS ESC KEY
yyy
CALIBRATION COMPLETE
CALIBRATION COMPLETE
Followed by...
READY
Comment
This sets the paper value, where
"yyy" represents the current
sensor reading.
(1) If using preprinted media,
ensure that the area placed over
the sensor is free of text,
graphics, or borders.
(2) See Section 2.3 for sensor
adjustment instructions.
Calibration was successful.
If WARNING LOW BACKING is

displayed, calibration was
successful.
The printer is now ready for use.
24
