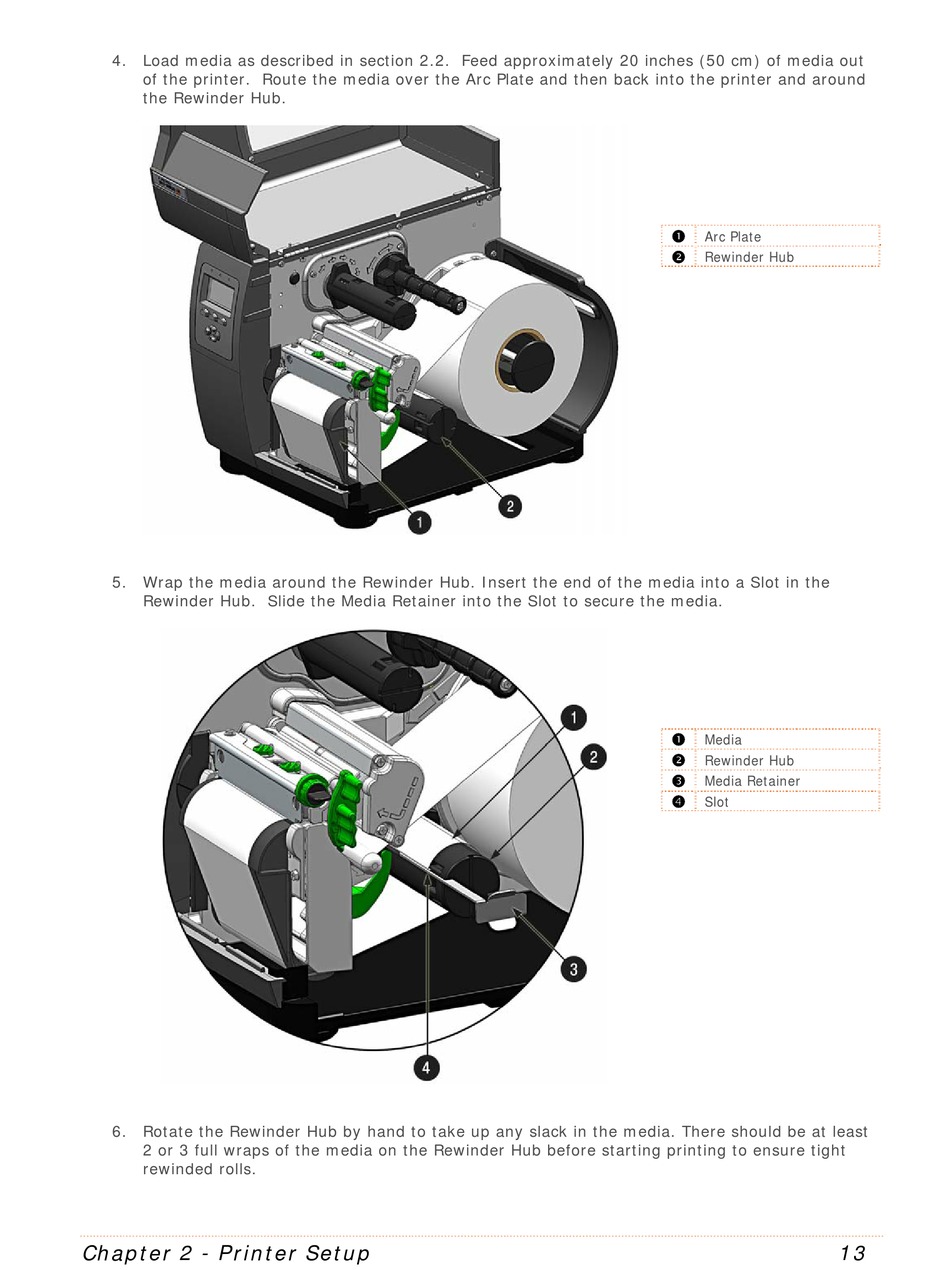

4. Load media as described in section 2.2. Feed approximately 20 inches (50 cm) of media out
of the printer. Route the media over the Arc Plate and then back into the printer and around
the Rewinder Hub.
5. Wrap the media around the Rewinder Hub. Insert the end of the media into a Slot in the
Rewinder Hub. Slide the Media Retainer into the Slot to secure the media.
6. Rotate the Rewinder Hub by hand to take up any slack in the media. There should be at least
2 or 3 full wraps of the media on the Rewinder Hub before starting printing to ensure tight
rewinded rolls.
Chapter 2 - Printer Setup

Arc Plate

Rewinder Hub

Media

Rewinder Hub

Media Retainer

Slot
