Datamax I-Class Mark II Operator's Manual page 16

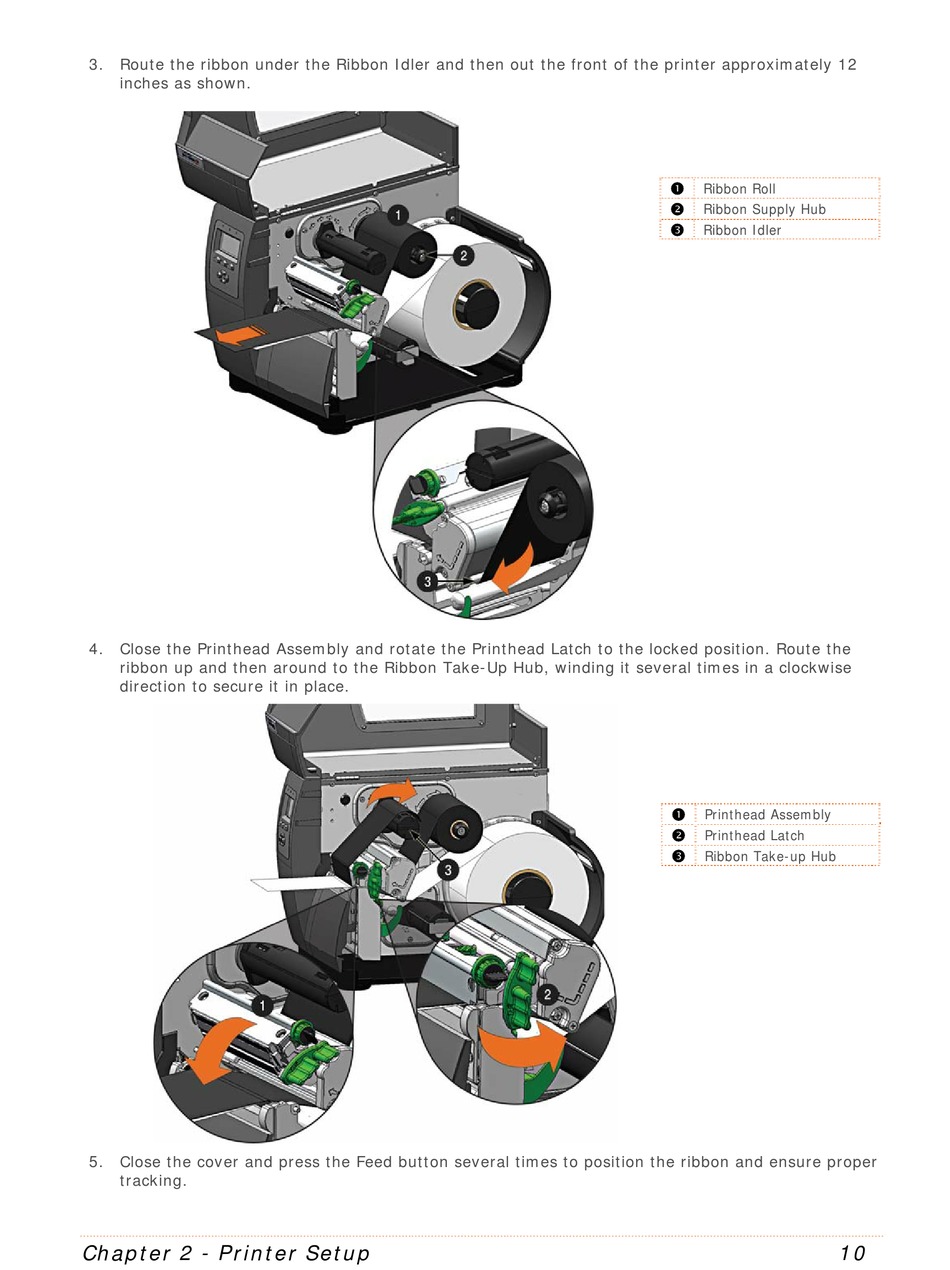

3. Route the ribbon under the Ribbon Idler and then out the front of the printer approximately 12
inches as shown.
4. Close the Printhead Assembly and rotate the Printhead Latch to the locked position. Route the
ribbon up and then around to the Ribbon Take-Up Hub, winding it several times in a clockwise
direction to secure it in place.
5. Close the cover and press the Feed button several times to position the ribbon and ensure proper
tracking.
Chapter 2 - Printer Setup

Ribbon Roll

Ribbon Supply Hub

Ribbon Idler

Printhead Assembly

Printhead Latch

Ribbon Take-up Hub
10
