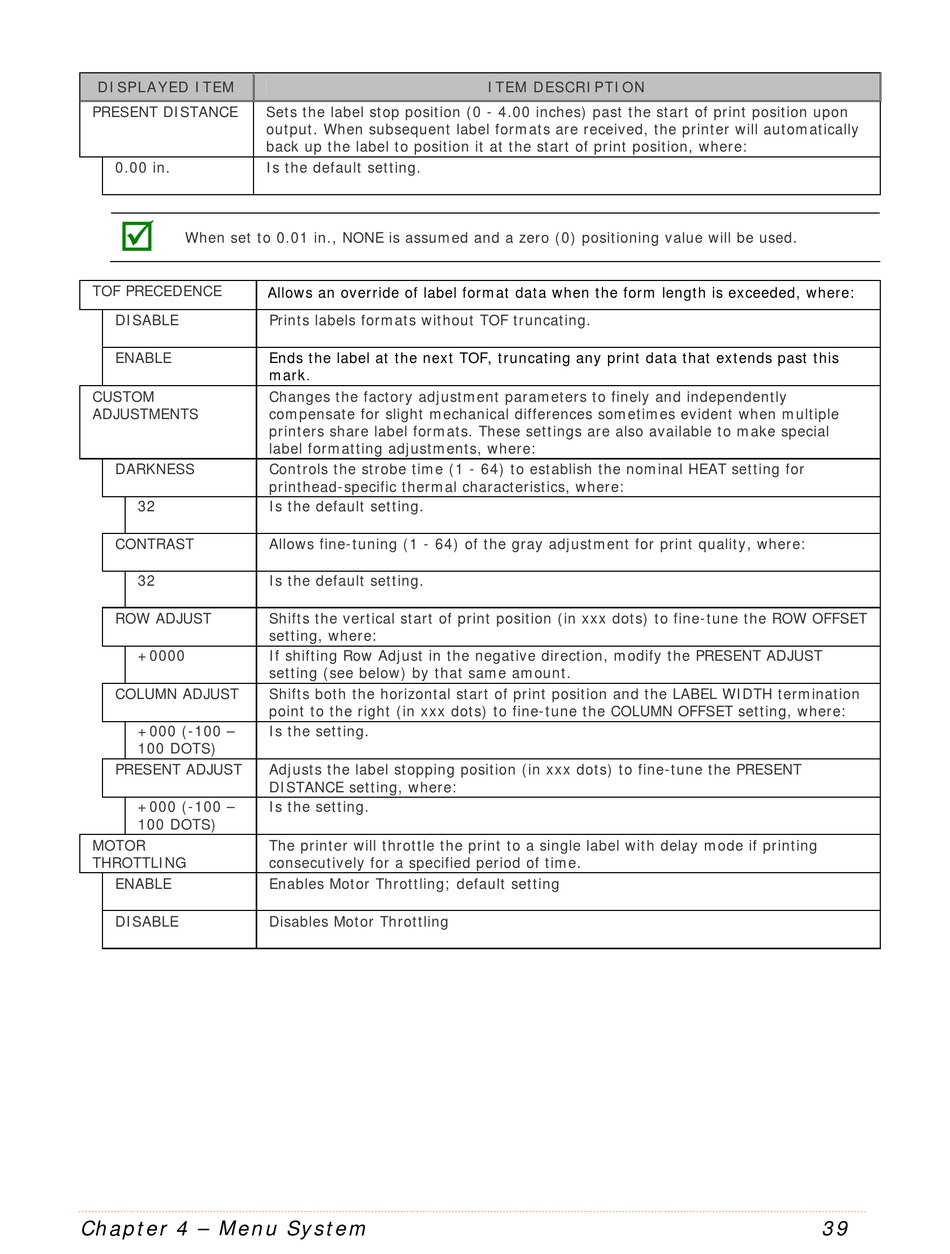

DISPLAYED ITEM
PRESENT DISTANCE
0.00 in.
When set to 0.01 in., NONE is assumed and a zero (0) positioning value will be used.
TOF PRECEDENCE
DISABLE
ENABLE
CUSTOM
ADJUSTMENTS
DARKNESS
32
CONTRAST
32
ROW ADJUST
+0000
COLUMN ADJUST
+000 (-100 –
100 DOTS)
PRESENT ADJUST
+000 (-100 –
100 DOTS)
MOTOR
THROTTLING
ENABLE
DISABLE
Chapter 4 – Menu System
Sets the label stop position (0 - 4.00 inches) past the start of print position upon
output. When subsequent label formats are received, the printer will automatically
back up the label to position it at the start of print position, where:
Is the default setting.
Allows an override of label format data when the form length is exceeded, where:
Prints labels formats without TOF truncating.
Ends the label at the next TOF, truncating any print data that extends past this
mark.
Changes the factory adjustment parameters to finely and independently
compensate for slight mechanical differences sometimes evident when multiple
printers share label formats. These settings are also available to make special
label formatting adjustments, where:
Controls the strobe time (1 - 64) to establish the nominal HEAT setting for
printhead-specific thermal characteristics, where:
Is the default setting.
Allows fine-tuning (1 - 64) of the gray adjustment for print quality, where:
Is the default setting.
Shifts the vertical start of print position (in xxx dots) to fine-tune the ROW OFFSET
setting, where:
If shifting Row Adjust in the negative direction, modify the PRESENT ADJUST
setting (see below) by that same amount.
Shifts both the horizontal start of print position and the LABEL WIDTH termination
point to the right (in xxx dots) to fine-tune the COLUMN OFFSET setting, where:
Is the setting.
Adjusts the label stopping position (in xxx dots) to fine-tune the PRESENT
DISTANCE setting, where:
Is the setting.
The printer will throttle the print to a single label with delay mode if printing
consecutively for a specified period of time.
Enables Motor Throttling; default setting
Disables Motor Throttling
ITEM DESCRIPTION
39
