JMA-5104/5106/5110
MARINE RADAR
EQUIPMENT
INSTRUCTION
MANUAL

Advertisement

   Related Manuals for JRC JMA-5104

   Summary of Contents for JRC JMA-5104

  • Page 1

    JMA-5104/5106/5110 MARINE RADAR EQUIPMENT INSTRUCTION MANUAL...

  • Page 2: Inside

    ──ABOUT YOUR SAFETY── Cautions for high voltage High voltages from hundreds volts to tens of thousands volts are to be applied to the electronic equipment such radio and radar devices. You do not face any danger during normal operation, but sufficient cares are required for maintenance, inspection and adjustment of their internal components.

  • Page 3

    FIRST AID TREATMENTS ☆ ☆ ☆ ☆ First-aid treatments As far as the victim of electric shock is not in dangerous condition, do not move him and practice artificial respiration on him immediately. Once started, it should be continued rhythmically. (1)...

  • Page 4

    ☆ ☆ ☆ ☆ When pulse is beating but breathing has stopped Tilt the victim's head back as far as this face looks back. (A pillow may be inserted under his neck.) Push his jaw upward to open his throat wide (to spread his airway). Pinch the victim's nostrils and take a deep breath, block his mouth completely with yours and blow into his mouth strongly.

  • Page 5

    ☆ ☆ ☆ ☆ When both pulse and breathing have stopped When no pulse has come not to be felt, his pupils are open and no heartbeat is heard, cardiac arrest is supposed to have occurred and artificial respiration must be performed. Place your both hands, one hand on the other, on the lower one third area of his breastbone and compress his breast with your elbows applying your weight on his breast so that it is dented about 2cm (repeat compressing his breast 50 times or so a minute).

  • Page 6

    PREFACE Thank you very much for purchasing the JRC marine radar equipment, JMA-5104, JMA-5106 and JMA-5110. This equipment is a marine radar equipment designed to obtain safe operation of marine ships. The equipment consists of a radar signal transceiver unit, a LCD display unit and a scanner unit as its main units.

  • Page 7

    ● ● ● ● Before Operation● ● ● ● Pictorial Indication Various pictorial indications are included in this manual and are shown on these equipment so that you can operate them safely and correctly and prevent any danger to you and / or to other persons and any damage to your property during operation.

  • Page 8

    ● ● ● ● Cautions to be used during operation● ● ● ● The customer should refrain from inspecting or repairing the internal parts of this equipment. Inspection or repair other than by specialized service personnel may cause death or a serious injury of any person. Please contact the sales department of Japan Radio Co., Ltd.

  • Page 9

    Make sure that the main power is turned off before maintaining the equipment. In particular, when a rectifier is used, a voltage is output from the rectifier even if the power of the display is turned off and the radar is stopped. If maintenance work is performed without turning off the main power, there is a risk of equipments breaking down, and dying or getting a serious injury of any person by electric shock.

  • Page 10

    Do not touch the insides of the scanner unit, transceiver and display unit. Touching any high voltage area, you will get an electric shock. maintenance, inspection and adjustment of internal parts of these equipment, consult with our sales office or distributor in your district. Since the scanner unit radiator rotates, do not approach it.

  • Page 11

    Only specialized personnel shall perform installation work. Installation work performed by personnel other than specialized personnel may cause breakdown of the equipment, poor performance, fire, severe elec-tric shock and other property and human damages. When you directly connect with the ship's power supply without using the optional rectifier, measure the voltage between the hull's earth and the positive side of ship's power spply, and the hull's earth and the negative side of this.

  • Page 12

    Use these radar only as assisting devices for navigation. Also, the officer should make the final decision for maneuvering by himself. If you make the final decision of maneuvering only on the information which a radar display, it may become the cause of accidents, such as collision and stranding.

  • Page 13

    The processing unit is not waterproof. Use correct fuse ratings. The use of incorrect ratings may cause an equipment failure. The GPS compass JLR-10 of JRC always can output absolute azimuth without gyro setting. Therefore, do not set a gyro value when connecting JLR-10.

  • Page 14

    EQUIPMENT APPEARANCE Scanner Unit Type NKE-2042 (2 feet) Scanner Unit Type NKE-2062 (4 feet)

  • Page 15

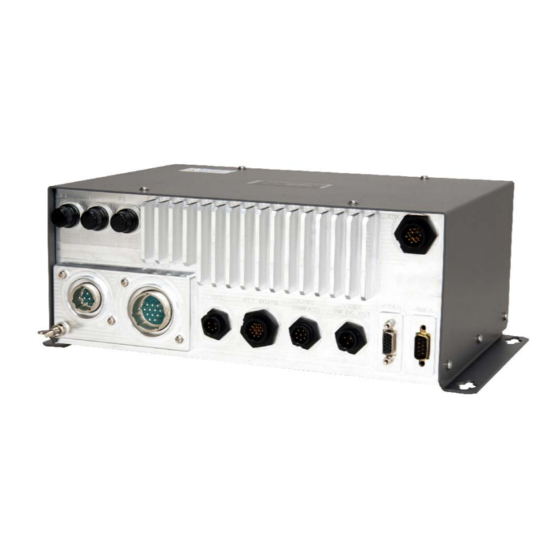

    Scanner Unit Type NKE-2102 (6 feet) Processing Unit Type NDC-1260...

  • Page 16

    Display Unit Type NWZ-146 (Landscape) and Keyboard Unit NCE-7640...

  • Page 17

    Display Unit Type NWZ-146 (Portrait) and Keyboard Unit NCE-7640...

  • Page 18: Table Of Contents

    Contents PREFACE ······························································································································I Before Operation···················································································································II Cautions to be used during operation··················································································III EQUIPMENT APPEARANCE ···························································································· IX Chapter 1 Introduction··································································· 1 Functions ································································································································1 Features··································································································································1 Composition····························································································································2 Configuration ··························································································································4 General System Diagram·····································································································11 Chapter 2 Names and Functions in the Keyboard Unit and the Menu Structure ·· 14 Functions of the Keyboard ···································································································14 2.1.1 Outline of the keyboard functions ···········································································14...

  • Page 19: Table Of Contents

    1. Turning on the power [STBY] ············································································36 2. Transmitting [TX/PRF] ·······················································································36 3.2.2 Tuning [AUTO-TUNE] ·····························································································36 1. Switching the tuning mode·················································································36 2. Turning the tuning control [AUTO-TUNE]··························································36 3.2.3 Observation and image adjustment [+RANGE-] ····················································36 3.2.4 Data acquisition and measuring ·············································································36 3.2.5 Operation termination and stop [STBY], [TX/PRF]·················································37 1.

  • Page 20

    6. Using EBL2 as a floating EBL ···········································································52 7. Setting EBL display····························································································53 3.5.7 Changing the bearing presentation method of the PPI screen [AZI MODE]·········54 3.5.8 Changing the center of the PPI screen [OFFCENT]··············································55 1. Setting a position to which the center is moved ················································55 2.

  • Page 21: Table Of Contents

    2. Erasing the MOB mark ······················································································70 3.5.20 Using the WAYPOINT function [MENU] ·································································71 1. Displaying WAYPOINT ······················································································71 2. Erasing WAYPOINT···························································································71 3.5.21 Own ship display function [MENU] ·········································································72 Switching own ship display ·····················································································72 3.5.22 Function to convert time difference display to latitude/longitude display [MENU] ······72 1.

  • Page 22: Table Of Contents

    Scanner Unit·························································································································93 Display Unit···························································································································93 Special Parts·························································································································94 Circuit Blocks for Repair·······································································································95 Actions to Deal with Abnormalities and Breakdown····························································96 Chapter 6 After-sales Service ····················································· 97 When asking for repair ····························································································97 Recommendation of maintenance inspection ························································97 RADAR FAILURE CHECKLIST ·············································································98 Chapter 7 Disposal······································································ 99 Equipment Disposal ·············································································································99 Disposal of Used Batteries···································································································99 Disposal of Used Magnetron································································································99...

  • Page 23: Table Of Contents

    Attaching a cable between a processing unit and a scanner unit (CFQ-6912-20/30) ·····129 9.3.9 Connecting a GPS receiver and NMEA equipment·············································131 1. Connecting GPS receiver of JRC····································································131 2. Connecting another manufacturer's GPS receiver or NMEA data output equipment ·······131 3. NMEA0183 standard input/output sentences ·················································133 9.3.10 Connecting a GPS compass (JLR-10) ·································································134...

  • Page 24: Table Of Contents

    9.6.1 General adjustment·······························································································152 9.6.2 Adjusting a scanner unit························································································152 1. Adjusting AVR output voltage of a modulator··················································152 2. Adjusting a tuning indication level of a receiver ··············································152 9.6.3 Adjusting an indicator unit ·····················································································153 Adjusting AVR output ····························································································153 Initialization ·························································································································154 9.7.1 Adjusting a receiver [+RANGE-] [TX/PRF] [AUTO-TUNE] [MENU] ····················155 1.

  • Page 25: Table Of Contents

    9.8.17 Setting information in a DGPS receiver································································178 1. Setting a DPGS mode [MENU] ·······································································178 2. Setting a frequency used by a beacon station [MENU] ··································178 3. Setting a baud rate for communication with a beacon station [MENU]··········178 4. Setting a DPGS mode [MENU] ·······································································179 5.

  • Page 26: Table Of Contents

    [Fig. 101 INTERCONNECTION DIAGRAM OF JMA-5104] [Fig. 102 INTERCONNECTION DIAGRAM OF JMA-5106] [Fig. 103 INTERCONNECTION DIAGRAM OF JMA-5110] [Fig. 104 PRIMARY POWER SYSTEM DIAGRAM OF JMA-5104] [Fig. 105 PRIMARY POWER SYSTEM DIAGRAM OF JMA-5106] [Fig. 106 PRIMARY POWER SYSTEM DIAGRAM OF JMA-5110] [Fig.

  • Page 28: Chapter 1 Introduction

    Chapter 1 Introduction 1.1 Functions This device is a marine radar device that utilizes a scanner unit including transmitter and receiver and 10.4 inch liquid crystal display unit and uses a compact raster scan method for achieving a fully semiconductor adopted (except for special electron tubes) system. This equipment comprises radar as defined in the Wireless Telegraphy Act.

  • Page 29

    1.3 Composition Radar configuration and ship's power Comprehensive Scanner unit Processing Keyboard Display unit Ship's power supply model name unit unit JMA-5104 NKE-2042 DC (12V/24V/32V ) JMA-5106 NKE-2062 NDC-1260 NCE-7640 NWZ-146 DC (12V/24V/32V) JMA-5110 NKE-2102 DC (24V/32V) When an optional rectifier unit is used: (AC100V/110V/115V/200V/220V/230V) 50/60Hz single...

  • Page 30

    NKE-2042 (spare parts for 4kw scanner unit) included in the same package as scanner unit 7ZXRD0012 Item name Quantity JRC code Remarks (model name) For modulator Fuse (SM6.3) 5ZFAD00543 (processing unit F2 : 6.3A) input For motor Not required −...

  • Page 31

    1.4 Configuration Fig. 1.1 OUTLINE DRAWING OF SCANNER UNIT NKE-2042...

  • Page 32

    Fig. 1.2 OUTLINE DRAWING OF SCANNER UNIT NKE-2062...

  • Page 33

    Fig. 1.3 OUTLINE DRAWING OF SCANNER UNIT NKE-2102...

  • Page 34

    Fig. 1.4 OUTLINE DRAWING OF PROCESSING UNIT NDC-1260...

  • Page 35

    Fig. 1.5 OUTLINE DRAWING OF KEYBOARD UNIT NCE-7640...

  • Page 36

    Fig. 1.6 OUTLINE DRAWING OF DISPLAY UNIT NWZ-146 (LANDSCAPE)

  • Page 37

    Fig. 1.7 OUTLINE DRAWING OF DISPLAY UNIT NWZ-146 (PORTRAIT)

  • Page 38: General System Diagram

    ALL CABLES OF THE RADAR ARE TO BE RUN AWAY FROM THE CABLES OF RADIO EQUIPMENT. (EX. RADIOTELEPHONE.COMMUNICAITONS RECEIVER AND DIRRECTION FINDER.ETC.) ESPECIALLY INTER-WIRING CABLES BETWEEN SCANNER UNIT AND DISPLAY UNIT OF THE RADAR SHOULD NOT BE RUN PARALLEL WITH THE CABLES OF RADIO EQUIPMENT. Fig. 1.8 GENERAL SYSTEM DIAGRAM OF JMA-5104...

  • Page 39

    Scanner unit (NKE-2062) 27rpm 4ft/6ft Interunit cable (20m) CFQ-6912-20 Landscape or Portrait Display unit (NWZ-146) 10.4 inches VGA signal out color LCD Power cable (for 5m) CFQ-6911-5 CFQ-6900(power cable) From DC10.8V to DC42V CFQ-6901(signal cable) (Cable length 20m) From DC21.6V to DC42V Keyboard unit (NCE-7640) Option (Cable length 30m)

  • Page 40

    Scanner unit (NKE-2102) 27rpm 10kW Interunit cable (20m) CFQ-6912-20 Landscape or Portrait Display unit (NWZ-146) 10.4 inches VGA signal out color LCD CFQ-6900(power cable) CFQ-6901(signal cable) Power cable (for 5m) CFQ-6911-5 Keyboard unit (NCE-7640) Option From DC21.6V to DC42V GYRO in NSK unit H-7ZCNA0855 (SYNC/STEP)

  • Page 41: Functions Of The Keyboard

    Chapter 2 Names and Functions in the Keyboard Unit and the Menu Structure 2.1 Functions of the Keyboard The normal operations of this radar equipment can be performed using the switches, volume knob, jog dial, and track ball on the keyboard unit. The operations are simple, however it is important to understand that the function of each operation unit is to obtain the required information on the LCD screen of the display unit.

  • Page 42

    Rain/snow reflection knob Sensitivity knob Tuning knob Sea clutter knob (17) (9) ( Jog dial Track ball...

  • Page 43: Configuration And Functions Of The Keys On Keyboard

    2.1.2 Configuration and functions of the keys on keyboard Nineteen keys on keyboard are available in total. The keys on keyboard are classified into two major types based on the operation mode; keys in short mode and keys in long mode short mode long mode.

  • Page 44

    During menu operation Short mode : During item selection on a menu, this key stops the current item selection. When item selection is completed, this key returns control to the menu one level above. State other than menu operation Short mode : When this key is pressed while the cursor overlaps with the ATA symbol, this operation erases the ATA symbol.

  • Page 45

    (15) [TRAILS] key Short mode : Switches to time track/continuous track/time track + continuous track/non-display. Long mode : Displays a track menu (track erase, track time setting change, and so on). (16) [CSR POS] key Short mode : Outputs the information of the bearing and distance from the current own ship's position to cursor position.

  • Page 46: Structure And The Functions Of Knobs

    2.1.3 Structure and the functions of knobs Four knobs are available. The knobs are classified into three main modes based on the operation. One type is a knob knob knob knob operation mode and other two are a short mode operation mode short mode and a long mode long mode, similar to the key operations.

  • Page 47: Structure And Functions Of The Jog Dial, Structure And Functions Of The Track Ball

    2.1.4 Structure and functions of the jog dial Two jog dial operation modes are available. One mode is roration mode roration mode roration mode roration mode, and other mode is short mode short mode short mode short mode. Rotation mode : In this mode, items displayed on EBL/VRM/ATA display/menu changes when the jog dial is turned.

  • Page 48: Description Of Screen Display

    2.2 Description of Screen Display Function setting status <Horizontal display> Sea clutter/rain and snow reflection suppression mode display Own ship information Distance range Own ship course Fixed distance scale interval Own ship speed Transmission status display Position information/navigation equipment Motion display Latitude PPI azimuth display Longitude...

  • Page 49

    <Vertical display> Function setting status Sea clutter/rain and snow reflection suppression mode display Distance range Fixed distance scale interval Transmission status display Motion display PPI azimuth display Guard zone operation displayed Zoom function display Interference suppression function display Day/night mode display Target expansion function display Correlation processing function display Pulse width display...

  • Page 50: Menu Functions, Menu Structure

    2.3 Menu Functions This radar equipment has the functions available through menus in addition to the functions available on the keyboard unit and volume knobs. This section describes the structure of the menus, the functions, and the setting method. 2.3.1 Menu structure This radar equipment can display information in Japanese, English, and other languages (French, Spanish, Italian, Danish, and Norwegian) on the screen by switching.

  • Page 51

    General menu [MENU] (1/1 page) 1st level 2nd level → BASIC (3rd level menu available) MENU BASIC BASIC > INTERFERENCE Sets operation and processing mainly related to radar images. DISP OPTIONS > TGT EXPANSION OFF TX PLAN > PROCESS INFORMATION > PROC SW RANGE 3.0 HELP >...

  • Page 52

    Installation setting menu [MENU] (1/3 pages) 1st level 2nd level → GYRO SETTING INSTALLATION INSTALLATION GYRO SETTING GYRO SETTING 123.4° Sets gyro data. 123.4° SIMULATION RADAR > RADAR > > > ATA SETTING > ATA SETTING > DATA/IN OUT > DATA/IN OUT > BAUD RATE >...

  • Page 53

    Installation setting menu [MENU] continued (2/3 pages) 1st level 2nd level → GPS SETTIGN (3rd and 4th level menus available) INSTALLATION GYRO SETTING 123.4° GPS SETTING > Sets initial values in the GPS receiver. SIMULATION GPS SETTING2 > RADAR > DGPS SETTING >...

  • Page 54

    Installation setting menu [MENU] Continued (3/3 pages) 1st level 2nd level → DISPLAY MOUNT INSTALLATION DISPLAY MOUNT GYRO SETTING 123.4° GYRO SETTING 123.4° Sets a display orientation of the display unit. SIMULATION SIMULATION RADAR > RADAR > > > ATA SETTING > ATA SETTING >...

  • Page 55

    Menu by a direct key [TRAILS] (1/1 page) 1st level 2nd level → TRAIL INTERVAL TRAILS TRAILS TRAIL INTERVAL TRAIL INTERVAL Sets a time interval of time trail. TRAIL REF LVL 8 TRAIL SUPRESS 0.0NM TRAIL SUPRESS 0.0NM TRAIL CLEAR TRAIL CLEAR RANGE TRAIL CLEAR...

  • Page 56

    Menu by a direct key [DIMM] : Setting day/night mode and color and brightness of the selected screen 1st level 2nd level → DAY/NIGHT DAY/NIGHT DAY/NIGHT MODE DAY1 MODE DAY1 Select one of the four day/night modes. COLOR > DAY1 BRILLIANCE >...

  • Page 57

    Menu by a direct key [ALARM ACK] : Setting various alarm functions 1st level 2nd level → BUZZER ALARM BUZZER BUZZER > VOLUME Sets a buzzer volume. ALARM > ERROR LOG > → ALARM ALARM ERROR LOG CLR> ALARM ZONE Sets various alarms.

  • Page 58

    Menu by a direct key [ATA] (1/3 pages) : Setting functions : This menu is displayed at installation of the option only. 1st level 2nd level → VECTOR VECTOR TRUE VECTOR TRUE Sets a vector. VECTOR LENGTH 6MIN RELATIVE 6MIN TRUE 0.0NM 0.0NM...

  • Page 59

    Menu by a direct key [ATA] (2/3 pages) : Setting functions : This menu is displayed at installation of the option only. 1st level 2nd level → CPA RING VECTOR TRUE VECTOR TRUE Sets a CPA ring. VECTOR LENGTH 6MIN VECTOR LENGTH 6MIN 0.0NM 0.0NM...

  • Page 60

    Menu by a direct key [ATA] (3/3 pages) : Setting functions : This menu is displayed at installation of the option only. 1st level 2nd level → TARGET NUMBER VECTOR TRUE VECTOR TRUE Sets a display method of a target number. VECTOR LENGTH 6MIN VECTOR LENGTH 6MIN 0.0NM...

  • Page 61

    Menu initialization by pressing a key at Power ON 1st level → INITIALIZE ALL INITIALIZE ALL INITIALIZE ALL SETTING Performs initialization operation. ARE YOU SURE? ↑ Display method Set the power to ON by pressing the [ACQ/ENT] key and [MENU] together. Setting menu language by pressing a key at Power ON 1st level →...

  • Page 62: Chapter 3 Operation Procedures, Operation Flow

    Chapter 3 Operation Procedures 3.1 Operation Flow Power-on and start ▼ Tuning ▼ Observation and image adjustment ▼ Data acquisition and measuring ▼ Operation termination and stop This chapter explains operations roughly divided into the following: - Power-on operation - Basic operation - General operation - Function key operation Power-on operation must be set before this radar is turned on/off or the equipment is operated.

  • Page 63: Power-on Operation, Tuning [auto-tune, Observation And Image Adjustment [+range

    3.2 Power-on Operation 3.2.1 Power-on and start 1. Turning on the power [STBY] To turn on the power, press the [STBY] key. When the power is turned on, the countdown timer is displayed on the screen, and the standby state is placed after 1 minute and 30 seconds. The total duty time and total transmitting time are displayed.

  • Page 64: Operation Termination And Stop [stby], [tx/prf

    3.2.5 Operation termination and stop [STBY], [TX/PRF] 1. Canceling transmission [STBY] Press the [STBY] key. Transmission is canceled and the screen enters the standby state. 2. Turning off the power Press the [STBY] key and [TX/PRF] key at the same time. The radar enters the stopped state and all the functions stop.

  • Page 65: Preparation For Observation, Changing The Brightness Of The Keyboard [dimm, Switching The Display Language [dimm

    3.3 Preparation for Observation 3.3.1 Changing the brightness of the LCD (a) Turning the BRILL control of the display clockwise increases the brightness. Turning it counterclockwise decreases the brightness. Use the BRILL control to change the brightness of the overall LCD. 3.3.2 Changing the brightness of the keyboard [DIMM] (a) Pressing the [DIMM] key changes the brightness of the keyboard.

  • Page 66: Setting The Volume Of The Buzzer [alarm Ack

    LANGUAGE SELECTION 言語選択 SELECT YOUR LANGUAGE 表示言語を選んでください ENGLISH NORSK FRANCAIS ESPANYOL ITALIANO DANISH 日本語 (b) When the language selection menu is displayed, select the target language using [JOG DIAL], and then press the [JOG DIAL] or [ACQ/ENT] key. The message is displayed asking if you want the selected language.

  • Page 67: Outside, Switching The Day/night Mode [dimm

    3.3.5 Switching the day/night mode [DIMM] This radar permits the settings of four patterns of the screen brightness and display colors. The four patterns are day 1, day 2, night 1, and night 2. The switching of the above four patterns instantaneously selects the mode that can choose the screen brightness and display color.

  • Page 68: Hl/cursor/wpt

    (e) Subsequently, the right menu below is displayed. Operate [JOG DIAL] to select the color to be set, and then press the [JOG DIAL] or [ACQ/ENT] key to determine the selection. DAY1 DAY1 INSIDE BLUE INSIDE BLUE OUTSIDE BLUE BLACK BLUE ECHO COLOR...

  • Page 69: Table Of Contents

    DAY1 DAY1 INSIDE INSIDE OUTSIDE ECHO ECHO TRAIL-TIME TRAIL-TIME TRAIL-CONT TRAIL-CONT HL/CURSOR/WPT 4 HL/CURSOR/WPT 4 EBL/VRM/RR EBL/VRM/RR ATA WHITE ATA WHITE ATA RED ATA RED CHARACTOR CHARACTOR PANEL DIMMER PANEL DIMMER Note PANEL DIMMER of this menu as well as the description Brightness can be set by the lowest line of 3.3.2 "Changing the brightness of the keyboard [DIMM]".

  • Page 70: Basic Operation, Transmitting [tx/prf, Halting Transmission [stby, Changing The Range [+range

    3.4 Basic Operation 3.4.1 Transmitting [TX/PRF] (a) Press the [TX/PRF] key. The standby state is changed to the transmitting state. 3.4.2 Halting transmission [STBY] (a) Press the [STBY] key. The transmitting state is changed to the standby state. The screen displays "STBY." 3.4.3 Changing the range [+RANGE-] (a) Press the [+RANGE-] key.

  • Page 71: General Operation, Eliminating Radar Interference [menu

    3.5 General Operation 3.5.1 Eliminating radar interference [MENU] If radar interference occurs, take the following steps to set an interference elimination level: (a) Press the [MENU] key to display MENU . (b) Select BASIC and then INTERFERENCE pressing the [JOG DIAL] or [ACQ/ENT] key after each selection.

  • Page 72: When It Is Raining Or Snowing [auto-rain

    3.5.2 When it is raining or snowing [AUTO-RAIN] Do not set the rain/snow clutter function to too high a suppression level. Otherwise, not only echoes from rain/snow but also the targets of ships or dangerous objects are suppressed, which may disturb the detection. Set the best suppression level whenever you use the ran/snow clutter suppression function.

  • Page 73: When The Sea Is Rough [auto-sea

    3.5.3 When the sea is rough [AUTO-SEA] Do not set the sea clutter suppression function to a level at which it clears all sea clutters in short range. Otherwise, not only echoes from waves but also the targets of ships or dangerous objects are suppressed, which may disturb the detection.

  • Page 74: Using The Trackball [track Ball

    3.5.4 Using the trackball [TRACK BALL] [TRACK BALL] enables you to easily measure a distance to a target and the bearing at the same time. Operate [TRACK BALL] to position the cursor to the target. The distance to the target and the bearing are displayed at the right bottom of the screen.

  • Page 75: Using Vrm [vrm1/vrm2], [jog Dial

    3.5.5 Using VRM [VRM1/VRM2], [JOG DIAL] VRM is a line for measuring a distance to the target that is displayed on the PPI screen. Since the size of the circle of VRM can be changed freely through [JOG DIAL], a distance to an arbitrary target can be measured.

  • Page 76

    4. Measuring the distance from own ship using VRM#1 [VRM1/VRM2] (a) Press the [VRM1/VRM2] key to reverse the value of VRM#1. (b) In this status, turn [JOG DIAL] to adjust the line of VRM#1 to the target, and read the value of VRM#1 to measure the distance to the target.

  • Page 77

    VRM2 display with EBL2 in floating EBL mode 6. Setting KM as range units The range units of VRM1 or VRM2 can be switched to KM or NM. The range units can be set for VRM1 and VRM2 separately. The units "KM" or "NM" is displayed following VRM1/VRM2. Take the following steps to select the range units of VRM: Take the following steps to select the range units of VRM: Take the following steps to select the range units of VRM:...

  • Page 78: Using Ebl (electronic Bearing Cursor) [ebl1/ebl2], [track Ball

    3.5.6 Using EBL (electronic bearing cursor) [EBL1/EBL2], [TRACK BALL] EBL (electronic bearing cursor) is a line for measuring the bearing of the target that is displayed on the PPI screen. Since the angle of the line of EBL can be changed freely through [JOG DIAL], the bearing of an arbitrary target can be measured.

  • Page 79

    If only EBL#1 or EBL#2 is displayed, press the [EBL] key to reverse the value of EBL#1/EBL#2. In this status, pressing the [EBL1/EBL2] key erases the non-reversed EBL. 4. Measuring the bearing from own ship using EBL#1 [EBL1/EBL2] (a) Press the [EBL1/EBL2] key to reverse the value of EBL#1. (b) In this status, turn [JOG DIAL] to adjust the line of EBL#1 to the target, and read the value of EBL#1 to measure the bearing to the target.

  • Page 80

    DISP OPTIONS EBL BEARING TRUE FROATING EBL VRM2 UNITS WAYPOINT POSITION LL-TD CONV> As shown in the figure below, EBL2 moves to the cursor position. If VRM2 is displayed at the same time, the center of VRM2 also moves to the fulcrum of EBL2. With EBL2 being placed in floating EBL mode 7.

  • Page 81

    Take the following steps to switch between the relative bearing and true bearing of EBL: Take the following steps to switch between the relative bearing and true bearing of EBL: Take the following steps to switch between the relative bearing and true bearing of EBL: Take the following steps to switch between the relative bearing and true bearing of EBL: (a) Press the [MENU] key to display MENU .

  • Page 82

    To place the screen in Course Up mode, press the [AZI MODE] key on the keyboard several times until the display at the upper left of the screen changes to "CUP." Caution ● ● ● ● Course up reset is only available in Course Up mode. Hold down the [AZI MODE] key except course reset mode, the mode is shifted to gyro setting mode.

  • Page 83

    Note Even if the center of the PPI screen is moved, this radar does not erase the images on the PPI screen including the display of trails and the likes. You can observe the heading of another ship at any time by freely moving the center of PPI screen. Caution ●...

  • Page 84

    2. Setting a trail interval [TRAILS] (a) Hold down the [TRAILS] key to display the TRAILS menu. (b) Operate [JOG DIAL] to select TRAIL INTERVAL , and then press the [JOG DIAL] or [ACQ/ENT] key. (c) The menu below is displayed. Turn [JOG DIAL] to set a value 30 to 59 seconds or 1 to 99 minutes, and then press the [JOG DIAL] or [ACQ/ENT] key to determine the setting.

  • Page 85

    (a) Hold down the [TRAILS] key to display the TRAILS menu. (b) Operate [JOG DIAL] to select TRAIL REF LVL , and then press the [JOG DIAL] or [ACQ/ENT] key. (c) The menu below is displayed. Select the threshold (level) you want to set, and then press the [JOG DIAL] or [ACQ/ENT] key to determine the selection.

  • Page 86

    TRAILS TRAIL INTERVAL 6M TRAIL REF LVL 8 RANGE TRAIL 0.0NM CLEAR KEEP CLEAR 3.5.10 Using the target expansion function [MENU] The image expansion function extends the images of echoes on the PPI screen into the angle direction and distance direction. Caution ●...

  • Page 87

    Changing the pulse length (a) Press the [GAIN/PL] control during transmission. The pulse length display at the right bottom of the screen changes. At the same time, the pulse length changes, and the size of the echoes on the screen changes. 3.5.12 Using the zoom function [MENU] The zoom function can double the size of the PPI screen on the basis of own ship position.

  • Page 88

    3.5.13 Highlighting a target by decreasing unnecessary noise (image processing) [MENU] Caution ● ● ● ● Do not use this function to view the radar beacon, the START signal, or a target moving at a high speed on the radar screen. ●...

  • Page 89

    (c) The menu below is displayed. Turn [JOG DIAL] to select PROC1 , PROC2 , PROC3 , PROC1+3 , or PROC2+3 , and then press the [JOG DIAL] or [ACQ/ENT] key to determine the selection. BASIC PROCESS PROC1 PROC2 PROC3 FULL PROC1+3 PROC2+3...

  • Page 90

    3.5.14 Switching true/relative motion display [TM/RM] The motion mode determines whether to display the moving of the own ship and another target in relative motion or true motion. 1. Switching the motion mode (a) Press the [TM/RM] key. The screen display and function changes in the following sequence: "RM"...

  • Page 91

    The own ship's position is reset to the position at switching to true motion display, and the own ship starts moving from the position. Allowable combinations of azimuth modes and motion modes Available azimuth modes vary depending on the motion mode. H-UP N-UP C-UP...

  • Page 92

    3.5.15 Suppressing the power consumption of the radar [MENU] Use the intermittent transmitting function to suppress the power consumption. The transmitting state and standby state are automatically switched while the intermittent transmitting function is used. The intermittent transmitting function can freely set the periods of the transmitting state and standby state.

  • Page 93

    TX PLAN TX PLAN TX PERIOD 10 SCAN 1~99 SCAN 3 MIN When the period of the transmitting state is set, the transmitting state is placed only while the antenna rotates the set number of times and then automatically switched to the standby state. After the standby state is placed for the set time, it is switched to the transmitting state again.

  • Page 94

    3.5.16 Monitoring the heading of other ships (targets) [ALARM ACK] A guard zone can be set for warning the invasion of other ships or targets. There are two guard zone modes - one mode issues an alarm when a ship or target gets into the specified guard zone, and the other mode issues an alarm when a ship or target gets out of the specified guard zone.

  • Page 95

    (d) Operate [TRACK BALL] to set the range outside the guard zone and the starting angle of the guard zone, and then press the [JOG DIAL] or [ACQ/ENT] key. (e) Operate [TRACK BALL] to set the ending angle of the guard zone, and then press the [JOG DIAL] or [ACQ/ENT] key to determine the setting.

  • Page 96

    Caution ● ● ● ● An alarm level 0 to 15 can be set as the volume of the alarm. As a lower value is specified, the alarm responds to a weaker target. Be careful that if a set alarm level is too high, the alarm may not work when it should.

  • Page 97

    Parallel line cursor display <Changing the spacing of parallel line cursors> The bearing and the spacing of parallel line cursors can be changed in EBL2 mode and VRM2 mode, respectively. 3.5.19 Using the MOB function [MOB] MOB is also called a falling-into-sea mark. If a person or object falls into the sea, press the [MOB] key.

  • Page 98: Using The Waypoint Function [menu

    Caution ● ● ● ● The MOB mark is displayed only on condition that a navigator is connected and latitude/longitude information is input. The MOB function does not work unless latitude/longitude information is input. 3.5.20 Using the WAYPOINT function [MENU] When the radar receives BWC or RMB from the navigator, it displays the distance to the destination, the bearing, and the latitude and longitude of the destination in the numeric value display area.

  • Page 99: Own Ship Display Function [menu

    3.5.21 Own ship display function [MENU] When you display the own ship's position through the navigator, use this function to determine whether to select the latitude/longitude display or the conventional time difference display LORAN-C. Switching own ship display Take the following steps to switch own ship's position information to the latitude/longitude display or the time difference display: (a) Press the [MENU] key to display MENU .

  • Page 100: Cursor/own-ship Position Output Function [csr Pos

    2. Setting time difference (TD1 or TD2) (a) Press the [MENU] key to display MENU . (b) Select DISP OPTIONS and then LL-TD CONV pressing the [JOG DIAL] or [ACQ/ENT] key after each selection. (c) Turn [JOG DIAL] to select LORAN-C TD1 or LORAN-C TD2 . (d) Turn [JOG DIAL] to set the value of TD1 or TD2, and then press the [JOG DIAL] or [ACQ/ENT] key to determine the setting.

  • Page 101

    Caution ● ● ● ● The initial setting item determines whether to output the above data. For details, see the initial setting item 9.8.29, "Setting a NMEA data output frequency [MENU]."...

  • Page 102: Use Of Function Keys

    3.6 Use of Function Keys 3.6.1 Overview The purpose of function keys is to always get the best radar images by : - Storing and using complex radar signal processing settings in the optimum status by usage, - Calling optimum signal processing settings for the sea conditions, weather, ship dimensions, and the like.

  • Page 103: Operation Procedures

    3.6.2 Operation procedures 1. Calling a function Each time the Each time the [FUNC] key is pressed, the cursor moves in the following sequence: Each time the Each time the key is pressed, the cursor moves in the following sequence: key is pressed, the cursor moves in the following sequence: key is pressed, the cursor moves in the following sequence: STANDARD →...

  • Page 104

    (d) The menu below is displayed. Select the signal processing you want to set by turning [JOG DIAL], and then press the [JOG DIAL] or [ACQ/ENT] key to determine the setting. You can select the settings of signal processing as shown below. OFF : STAND : Use for standard situation...

  • Page 105

    Function key menu lists (display only) Level 1 menu Level 2 menu Level 3 menu All the level 3 menus at left are only for FUNCTION STANDARD VIDEO display. STANDARD > MODE COAST INTERFERENCE The settings of menu items can be FUNC1 >...

  • Page 106: Other Procedures Required, Confirming Software Versions [menu, Confirming The Operating Status Of Connected Units [menu

    3.7 Other Procedures Required 3.7.1 Confirming software versions [MENU] The versions of software installed in the processor, antenna, and operation unit can be displayed. If a failure occurs, inform our engineer of the software versions as well as details on the failure. Take the following steps to confirm the software versions: Take the following steps to confirm the software versions: Take the following steps to confirm the software versions:...

  • Page 107

    3.7.3 Displaying magnetron current [MENU] [+RANGE-] The current value of magnetron is displayed. The status of magnetron can be interpreted by the value. Take the following steps to display magnetron current. Take the following steps to display magnetron current. Take the following steps to display magnetron current. Take the following steps to display magnetron current.

  • Page 108: Confirming Error Logs [alarm Ack

    3.7.4 Confirming error logs [ALARM ACK] If any of the sensors malfunctions, the error log function lists faulty locations. If a failure occurs, inform our engineer of the error log contents as well as details on the failure. Take the following steps to confirm error logs: Take the following steps to confirm error logs: Take the following steps to confirm error logs: Take the following steps to confirm error logs:...

  • Page 109: Clearing The Error Log [alarm Ack, Operating The Self-diagnostic Function [menu, Displaying The Help Menu

    TRX-MHV Moduration error of transmitter or reciever SSW OFF Safety switch OFF of scanner unit TRX-HL Standard rotation signal error of scanner unit TRX-AZI Rotation signal error of scanner unit TRX-REV Reverse rotation error of scanner unit TRX-TRIGER Transmission trigger error of scanner unit TRX-VIDEO Video error of scanner unit PRC-HL...

  • Page 110: Replacing The Battery (bt)

    HELP INITIALIZE ALL ACQENT+MENU SELF TEST EBL+VRM LANGUAGE DIMM DISP MOUNT UP TUNE DISP MOUNT R RAIN DISP MOUNT REV SEA DISP MOUNT L GAIN 3.7.8 Replacing the battery (BT1) The battery (BT1) needs to be replaced regularly to hold the set information. (a) Replacing the battery (BT1) The battery is provided in the main control circuit (CMC-1190).

  • Page 111

    3.7.9 Procedure if an incomprehensible symptom occurs during use of the radar If a symptom such as the distortion of screen display or the refusal of switch operation takes place during use of the radar, perform the initialization procedure below. Caution ●...

  • Page 112: Operating A Second Keyboard Unit [gain/pl] [jog Dial

    3.8 Options 3.8.1 Operating a second keyboard unit [GAIN/PL] [JOG DIAL] By adding the optional keyboard (NCE-7640), either of the two keyboards can be used independently to control one antenna. When one keyboard is being used, it will not be possible to use the other keyboard, with the exception of a few functions (e.g., the keyboard switching operation and changing from transmission to standby).

  • Page 113

    Immediately after switching the keyboards, the modes of the [GAIN/PL], [AUTO-TUNE], [AUTO-SEA] and [AUTO-RAIN] knobs may be different from what they were before switching. Sensitivity might also be lowered, and this could cause a collision. Each time the active keyboard is switched, be sure to readjust the four knobs above so that they are at their optimum settings.

  • Page 114: Chapter 4 How To Interpret The Ppi Screen

    Chapter 4 How to Interpret the PPI Screen 4.1 Height of and the Distance to the Target The maximum distance to a target that can be observed with a radar depends not only on the power of the radar's transmitter, beam width of the scanner unit, and the receiver's sensitivity but also on height of a target, distance to a target and height of scanner unit line etc.

  • Page 115: Returns From A Target, Propagation Path Of Radio Waves

    4.2 Returns from a Target The intensity of returns from a target is related not only to the size of the target but also to the materials and shape of the components making up the target. Accordingly, larger objects do not necessarily develop strong returns.

  • Page 116: Sea Returns, False Echoes

    4.3.1 Sea returns On a wavy sea surface, an echo appears on the PPI screen as a bright defused image at the center of the screen. This echo is developed by returns from the sea surface. The features of the echo depend on the size and range of the wave, and the wind direction.

  • Page 117

    (d) Multiple echo Multiple echoes are developed by multiple reflections caused by a building or large vessels that has large vertical surfaces. These echoes are spaced at an equal interval, with the one that is closest to the own ship being the true echo. (e) Radar interference If there is a radar that uses the same frequency as that of the own ship near the own ship, interferences caused by that radar appear on the PPI screen.

  • Page 118: Display Of Radar Transponder

    4.4 Display of Radar Transponder SART (Search and Rescue Radar Transponder) is life preserving device approved by GMDSS which is used for locating survivors in the event of a disaster or distress. SART operates in the 9GHz frequency band. When it receives a radar signal (interrogating radio wave) of 9GHz transmitted by a rescue ship or aircraft radar, SART transmits a series of respouse signals to the searchers to indicate the distress position.

  • Page 119: Chapter 5 Maintenance And Inspection

    Chapter 5 Maintenance and Inspection 5.1 General Maintenance The customer should refrain from inspecting or repairing the internal parts of this equipment. Inspection or repair other than by specialized service personnel may cause death or a serious injury of any person. Please contact the sales department of Japan Radio Co., Ltd.

  • Page 120: Display Unit

    5.2 Scanner Unit When performing maintenance or inspection of the scanner unit, be sure to shut off the main power source. If the scanner suddenly rotates and it hits the human body violently, there is a risk of dying or getting a serious injury of any person. Be sure to shut off the main power source when approaching the scanner unit for the purposes of maintenance or inspection.

  • Page 121: Special Parts

    5.4 Special Parts JMA-5104 Model Name Type Manufacturer Location of use JRC Code Number V201 Magnetron MSF1421B New JRC Scanner unit 5VMAA00049 A101 Circulator H-6AJRD00001 Toshiba Scanner unit 6AJRD00001 A102 Diode limiter NJS6930 New JRC Scanner unit 5EZAA00024 E301 Front end...

  • Page 122: Circuit Blocks For Repair

    5.5 Circuit Blocks for Repair NKE-2042 Name Unit/ type of circuit Remarks Modulator circuit CME-322 Receiver CAE-475 Motor unit H-7BDRD0023 NKE-2062 Name Unit/ type of circuit Remarks Modulator circuit CME-323 Receiver CAE-475-1 Motor unit CBP-153 NKE-2102 Name Unit/ type of circuit Remarks Modulator circuit CPA-248...

  • Page 123: Actions To Deal With Abnormalities And Breakdown

    Fuse F2 and F3 have blownb. b. Breakdown in the motor unit The scanner unit does not rotate. (JMA-5104: CML-674 H-7BDRD0023 inside the scanner unit, JMA-5106/5110: CBP-153/167) a. Breakdown of the receiver (JMA-5104: CAE-475, JMA-5106/5110: CAE-475-1) b. Breakdown of the main control circuit (CMC-1190).

  • Page 124: Chapter 6 After-sales Service

    If the failure occurred under proper operation in accordance with the instruction manual, the dealer or JRC shall repair the product without charging. In case of any other failure occurred due to mis-operation or natural disaster, the repair work will be charged.

  • Page 125: Radar Failure Checklist

    RADAR FAILURE CHECKLIST When ordering for repair, check the following items, fill in the sheet and send it to us. If there is any uncertain items, contact your ship and give us correct information on the product. Ship name: Phone: Fax:...

  • Page 126: Chapter 7 Disposal, Equipment Disposal, Disposal Of Used Batteries, Disposal Of Used Magnetron

    Chapter 7 Disposal 7.1 Equipment Disposal Dispose of this equipment by following the ordinances or regulations of the local authorities in charge of the disposal site. 7.2 Disposal of Used Batteries Before disposing of used lithium batteries, insulate by affixing tape to the positive and negative terminals or by other means.

  • Page 127: Chapter 8 Specifications, General Specifications

    <Relative humidity> Scanner unit : 93% maximum at +40 ˚C Display unit : 93% maximum at +40 ˚C 9) Tolerance of input voltage <JMA-5104 / JMA-5106> DC 12V/24V/32V (from DC 10.8 to 42V) <JMA5110> DC 24V/32V (from DC 21.6 to 26.4V) AC 100/110/115/200/220/230V ±...

  • Page 128: Scanner Unit Specification

    8.2 Scanner Unit Specification 8.2.1 Scanner unit (NKE-2042 : Redome type) 1) Dimensions Height : 275mm, Diameter of radome : 620mm 2) Mass Approx. 10.5kg 3) Polarization Horizontal 4) Beam width Horizontal (-3dB) 4˚ Vertical (-3dB) 25˚ Side lobe level Less than -21dB within 10˚...

  • Page 129

    11) Front end module Built in 12) IF amplifier Logarithmic amplifier, Noise figure 6dB maximum. 13) Tuning Manual/Auto 8.2.3 Scanner unit (NKE-2102 : 10kW rotation type) 1) Dimensions Height : 448mm, Swing circle : 1910mm 2) Mass Approx. 33kg 3) Polarization Horizontal 4) Beam width Horizontal (-3dB)

  • Page 130: Processing Unit Specifications

    Floor setting type 4) Range scale/rings 0.125nm/0.065nm, 0.25nm/0.125nm, 0.5nm/0.1nm, 0.75nm/0.25nm, 1.5nm/0.5nm, 3nm/0.5nm, 6nm/1nm, 12nm/2nm, 24nm/4nm, 48nm/8nm, 72nm/12nm(except JMA-5104) 5) Range accuracy Better than ±1.5% of maximum range in use or ±70m whichever is greater 6) Bearing scale 360˚ scale graduate at intervals of 1˚...

  • Page 131

    Radar trails Gradation 1 level (time wakes, continuance, trails) Color Time trails : 1 color (sky, white, green) Continuance trails : 1 color (sky, white, green) Fixed marker / VRM1/2 / EBL1/2 Color cyan Character Color white Heading line/cursor Color white Background color inside PPI black, bule, gray...

  • Page 132: Keyboard Unit Specifications

    8.4 Keyboard Unit Specifications 1) Dimensions Width : 290mm Height : 45mm Depth : 123mm 2) Mass 1.0kg 3) Controls and keys Gain control Tuning control Anti-clutter sea control Anti-clutter rain control Power on/STBY switch (ON/OFF) X-MIT key MOB key EBL key (ON/OFF/SELECT) VRM key (ON/OFF/SELECT) Dimmer key...

  • Page 133: Display Unit Specifications

    8.5 Display Unit Specifications 1) Dimensions Landscape Width : 290mm Height : 290mm Depth : 165mm Portrait Width : 230mm Height : 325mm Depth : 165mm 2) Mass 2.8kg 3) Power DC 12V in 4) Resolution 640 x 480 pixels input signal 5) Signal impedance Video (R, G, B) : 75 Ω...

  • Page 134: Interunit Cable, Rectifier Unit, Flash Mounting Kit, Nsk Unit

    8.6 Option 8.6.1 Interunit cable Interunit calbe 8.6.2 Rectifier unit Rectifier unit NBA-797 8.6.3 Flash mounting kit 1) Flash mounting kit (For display unit) MPTG31339 2) Flash mounting kit (For keyboard unit) MPTG31340 8.6.4 MARPA MARPA NCA-868 1) Acquisition Acquisition mode Manual (10 targets max) Manual canceling of unnecessary target By 1 target each or all targets...

  • Page 135

    8.6.6 Sub indicator unit signal out Signal Trigger, video, bearing pulse and reference pulse 8.6.7 Sub keyboard unit Sub keyboard unit NCE-7640...

  • Page 136: Cable Length Between Equipment Units

    Maximum cable length Standard cable length 1) From scanner unit to indicator unit * In case of JMA-5104 or JMA-5106, the input voltage beyond 24V is required for 30m. 2) From indicator unit to rectifier unit 3) From indicator unit to keyboard unit...

  • Page 137: Chapter 9 Installation

    Chapter 9 Installation This chapter has been written for the service technicians to read in case of installation. Only specialized personnel shall perform installation work. Installation work performed by personnel other than specialized personnel may cause breakdown of the equipment, poor performance, fire, severe elec-tric shock and other property and human damages.

  • Page 138: Installing The Scanner Unit, Selecting The Installation Location

    9.2 Installing the Scanner Unit 9.2.1 Selecting the installation location The scanner unit shall be installed where there are not large obstacles in the direction of the ship's heading line in the same plane. If there is a large impediment in the same plane as the scanner unit, this may cause the generation of folse echoes.

  • Page 139

    Take the following into consideration when selecting the installation location: (1) Consider the weight of the scanner unit and decide what height it can be raised for installation in the ship. (2) Height at which the scanner unit is installed has to do with the maximum detectable range, the higher its position is the better.

  • Page 140: Installation Procedure

    (9) Note the swing circle of the scanner and allow a distance of at least (swing circle/2)+200 mm between scanner swing center and other installations (say, mast or radio antenna). Scanner swing circle in the radar of JMA-5106/5110 is shown in the following table. Scanner unit Feet Swing circle (mm)

  • Page 141

    2. Suspending the Scanner The scanner is supplied assembled, with felt wound around the area where the suspension rope will contact it. Engage the sling with the scanner as shown in the following figure. Scanner Suspention If felt is not provided where the rope contacts the scanner, or if the scanner is supported near the both ends of the radiator, you may damage the unit.

  • Page 142

    9.2.3 Connection of cables to be assembled 1. Radome scanner unit (NKE-2042)

  • Page 143

    When mounting the scanner unit, please check the maximum length of the holding bolts. If the bolts are too long, it gives severe damage to inside of the scanner. When mounting the scanner unit, please use the attached bolts. The mounting base thickness must not exceed 15mm (0.6inch).

  • Page 144

    2. Rotary scanner unit (NKE-2062/NKE-2102)

  • Page 146: Installing An Indicator Unit, Specifying The Installation Position, Installation Method

    9.3 Installing an Indicator Unit 9.3.1 Specifying the installation position Provide a distance of 1m or more between a processing unit and a magnetic compass. If a processing unit is installed in a position too close to a magnetic compass, it may affect the magnetic compass.

  • Page 147

    9.3.3 Rear of the processing unit (Fuse) For modulator Sub-indicator unit output/sub-keyboard J9 (option setting) For indicator unit For motor DC Power-On To scanner unit Keyboard Display unit (signal + power) Input from GPS receiver/ GPS compass/ Output to PC plotter NMEA equipment NSK equipment /other NEMA equipment...

  • Page 148: Signals Of Option Connectors

    (7) ALM- : Dry contact output 2 (8) +5V : Power for NSK (+5V) Use the following plug connectors, P3 and P5, for J3 and J5. Connector Type JRC code P3 (for J3) LTWD06BFFA-L180 5JCDX00014 P5 (for J5) LTWD08BFFA-L180 5JCDX00015...

  • Page 149

    Connector for signal output to PC plotter/NMEA equipment (J8) To PC plotter or NMEA equipment (1) NC : Unused (2) RSRXD : RXD signal input (reserved) (3) RSTXD : NMEA signal output (4) NC : Unused (5) GND : Signal GND (6) NC : Unused (7) RSRTS...

  • Page 150: Installing And Display Unit

    9.3.5 Installing and display unit Display unit NWZ-146 is connected with two cables. 1. Setting vertically or horizontally A display unit can be installed vertically or horizontally. When changing the orientation of a display unit from vertically to horizontally or vice versa, remove the four small screws from the rear of the display unit and install it with the required orientation as shown below.

  • Page 151

    Connect two cables from the processing unit. As shown in the photograph below, insert the power cable connector at the rear of the processing unit and turn the plug until it stops, and check that the cable does not come off even if it is pulled.

  • Page 152: Installing A Keyboard Unit

    9.3.6 Installing a keyboard unit A keyboard unit can be installed at any location within a distance of 5m with a processing unit. The cable is attached to the keyboard unit. Connecting a cable Connect one cable to a processing unit. Turn the insertion plug at the rear of the processing unit to the full position and check that the cable does not come off even if it is pulled.

  • Page 153

    9.3.7 Attaching a power cable (CFQ-6911-5) A power cable of 5m length with a connector is attached to this radar equipment. Number of element wires/ Cross section Color Polarity diameter (mm) 50/0.18 1.25 50/0.18 1.25 50/0.18 1.25 Black 50/0.18 1.25 −...

  • Page 154

    When you directly connect with the ship's power supply without using the optional rectifier, measure the voltage between the hull's earth and the positive side of ship's power spply, and the hull's earth and the negative side of this. And check voltage of 50 volts or more is not required.

  • Page 155

    Selecting a cable when a long power cable is required ● The input voltage to an indicator is determined by subtracting the voltage drop up to the power cable from the ship's power supply voltage. Therefore, if the power cable is too thin or too long, the voltage drops substantially, preventing the radar from functioning at its full capacity.

  • Page 156

    9.3.8 Attaching a cable between a processing unit and a scanner unit (CFQ-6912-20/30) (a) Use this cable for connecting a processing unit and a scanner unit. (b) Use a cable with the following connector for this radar equipment. Cable length JRC code Remarks CFQ-6912-20 Standard CFQ-6912-30...

  • Page 157

    Connection table of cable CFQ-6912-20/30 Color Wire material Signal name number Blue thick, gray thick AWG16 Purple thick, brown thick AWG16 White thick, orange thick AWG16 Red thick, green thick AWG16 Black thick, blue thick AWG16 Black AWG22 Drain wire (coaxial) (drain wire: AWG24 Shielding, braided shielding) −...

  • Page 158: Connecting A Gps Receiver And Nmea Equipment

    Insert a cable in J3 from GPS. 2. Connecting another manufacturer's GPS receiver or NMEA data output equipment When connecting NMEA data from the NMEA data output equipment of JRC other than those indicated above or other manufacturer's GPS, use 6-pin connector P3 for J3 (LTWD06BFFA-L180).

  • Page 159

    Method of assembling and connecting P3 (LTWD06BFFA-L180) and P5 (LTWD08BFFA-L180) that are attached...

  • Page 160

    3. NMEA0183 standard input/output sentences ● ● ● ● Input sentences Input sentences Input sentences Input sentences NORMAL INPUT $xxGGA Global Positioning System Fix Data $xxGLL Geographic Position - Latitude/Longitude $xxVTG Course Over Ground and Ground Speed $xxRMC Recommended Minimum Specific GNSS Data $xxBWC Bearing and Distance to Waypoint $xxRMB...

  • Page 161: Connecting A Gps Compass (jlr)

    9.3.10 Connecting a GPS compass (JLR-10) A MARPA unit, which is an optional unit, can be used by connecting GPS compass JLR-10 of JRC. 1. Using a dedicated cable JLR-10 can be connected easily by using the CFQ-6934 dedicated cable of JRC. This cable enables not only receiving of azimuth information from JLR-10 but also receiving of longitude and latitude information as NMEA data.

  • Page 162

    J5. To input NMEA data such as position information from the GPS equipment of JRC or a different manufacturer by acquiring azimuth data from JLR-10, connect a cable from GPS equipment using the connection method that is described in 9.3.9, "Connecting a GPS receiver and NMEA equipment"...

  • Page 163: Connecting An Electromagnetic Compass

    9.3.11 Connecting an electromagnetic compass Caution ● ● ● ● Make correctly connection between the output of ship's power and rectifier unit, and power cable. If neither connection nor voltage is right, it may cause an equipment failure. Azimuth information can be input to a radar indicator unit if the electromagnetic compass is equipped with a NMEA0183 output pin.

  • Page 164: Connecting Gyro

    By purchasing an optional item, NSK Unit NCT-4106, gyro and electromagnetic log can be connected. For connecting, use the CFQ-6998 dedicated cable of JRC that is enclosed by the NCT-4106 or the CFQ-6934 optional cable. NCT-4106 can be connected easily with the processing unit by using this cable.

  • Page 165

    When CFQ-6934 (an optional cabel) is used Photograph 1 Insert the 8-pin connector (IND NSK) of CFQ-6934 (JLR-10/NSK unit dedicated connection cable) to the connector of processing unit Photograph 2 Insert the 8-pin connector (NSK) of CFQ-6934 (JLR-10/NSK unit dedicated connection cable) to the connector of NCT 4106.

  • Page 166

    1. Connections to an external buzzer TB40 of the built-in PCB CSC-631 has a drycontact output, so that if the connection "TB-40 → Power Supply → Positive terminal of the buzzer → Negative terminal of the buzzer → Power supply ground" is made, then a buzzer can be sounded when there is an alarm from the JMA-5100.

  • Page 167

    Although each component of the radar has completely been adjusted in the factory, the adjustments as described in following pages are required after installation. The NSK unit of the radar can be applied to almost all types of gyrocompasses just by changing the settings of keys (step motor type of 24 to 100VDC and synchro motor type with primary exciting voltages of 50 to 115VAC).

  • Page 168

    S5-4 : Gyro direction Normal (clockwise) ....[OFF] Reverse (counterclockwise) ... [ON] S5-5 : Log type Pulse signal ......[OFF] Synchronizing signal ....[ON] S5-6 : Not used S5-7, -8 : Log ratio Pulses/nm (Pulse signal) Rotations/nm (Synchro signal) 360X 180X S5-7 S5-8...

  • Page 169

    [Gyro Log Selection Switches (DIP switch S5)] SYNC STEP 360X 180X Normal (NOR) Gyrational direction (DIRECTION) Reverse (REV) PULSE Type SYNCRO 800P/360X Pulse number 400P/180X (PULSES/NM) 200P/90X 100P/30X...

  • Page 170

    NOTE:When removing or touching the PC4201. NOTE1: Do not forget to select the switch S1( ) to OFF before performing the connection of gyro. Set the gyro power supply switch S1 to OFF If the switch S1( ) is set to ON without the correct setting of S2( ) fuses F1 F4( ) may burn out. or cut-off the gyro signal input to TB10 or When setting the switch S1( ) to ON, following settings must be all completed.

  • Page 171

    Setting the speed log switches 1. This radar uses the six types of standard speed log signals listed bellow. Pulse type : 800 pulses/NM, 400 pulses/NM, 200 pulses/NM, 100 pulses/NM Synchro type : 360X/NM, 180X/NM, 90X/NM, 30X/NM Set gyro select switch assembly S5(⑪) using the S5 setting table. 2.

  • Page 172

    Item PC4201 Gyro select switches (S5, S2, andJP1 located on the PC4201) Repeater motors Gyro commpass S5 setting (For reference only) Manufacturer Excitation voltage setting setting ES-2/11, Synchro motor GLT-100~103/105/106K/107/1104, INMS 115 VAC SYNC SYNC NJZ-501 (R501) (TS63N7E13) 60 Hz Speed log selection (36X) ES-11A, GM-11/11A/21/110/120,...

  • Page 173: Connecting A Pc Plotter And Nmea Equipment

    9.3.13 Connecting a PC plotter and NMEA equipment This equipment can output NEMA0183 data to a PC plotter and NMEA equipment. It is possible to select RS232C output and NMEA output (RS422 level) by setting a jumper pin. 1. Outputting NMEA0183 data to a PC plotter (RS232C output) Set JP1 of the CBD-1638 power terminal block to a jumper between 1 and 2 (initial position).

  • Page 174

    3. Switching RS232C/RS422 signal output Switching signal output from RS232C to RS422 alternately, switch jumper JP1 of power terminal block CBD-1638. RS232C signal output Jumper set between 1 and 2 of TB1 as shown in the photograph. RS422 signal output Jumper set between 2 and 3 of TB1 as shown in the photograph.

  • Page 175: Connecting External Buzzers

    9.3.14 Connecting external buzzers This equipment is equipped with dry contact output for external buzzers. Dry contact is output from a jumper set between pins 6 and 7 from the 8-pin connector of J5. The contact of the output is a capacity up to 1A/30V. If a greater current/voltage is applied, install equipment of adequate contact capacity such as relay in the external section.

  • Page 176: Changing Ship's Power

    For NKE-2042 (4kw radome type scanner unit), fuse insertion is not necessary since F3 (fuse for motor) is not available. List of fuses Scanner unit Input power model voltage Rating JRC code Rating JRC code DC12V 6.3A time-lag 5ZFAD00543 − −...

  • Page 177: Checking And Adjustment After Installation

    9.5 Checking and Adjustment After Installation 9.5.1 Checking after installation (a) After completion of installation, it is necessary to check if all the operations have been carried out according to the instruction. In particular, check if the cables are connected correctly, each unit is installed properly, there is no water leakage from the scanner unit, and cable shielding braiding is installed correctly.

  • Page 178

    9.5.4 Rectifier ● ● ● ● A rectifier can be used for both of the ship's voltage types, AC100/110/115V and 200/220/230V, however, the input pin connection modes must be changed as shown in the diagram below. Change the connection Change the connection according to the input voltage.

  • Page 179: General Adjustment, Adjusting A Scanner Unit

    9.6 Adjustment 9.6.1 General adjustment Adjustment after component replacement This section describes the adjustment required as a result of replacement of the main components. (a) Replacement of magnetron V101 → Tuning preset (b) Replacement of front end E101 → Tuning preset 9.6.2 Adjusting a scanner unit Some scanner unit adjustments are necessary, however, no re-adjustments are necessary since the...

  • Page 180: Adjusting An Indicator Unit

    9.6.3 Adjusting an indicator unit Some adjustments are necessary for the indicator unit, however, no re-adjustments are necessary since the indicator unit is thoroughly adjusted at the factory. However, if adjustments become necessary as a result of operation checking at inspection or fault repair, make the following adjustments.

  • Page 181

    9.7 Initialization This section describes how to initialize radar equipment. Initialization of radar equipment is necessary when using it for the first time. Initialization involves the following tasks. 9.7.1 Adjusting a receiver [+RANGE-] [TX/PRF] [AUTO-TUNE] [MENU] 1. Tuning preset 2. Center frequency adjustment 3.

  • Page 182: Adjusting A Receiver [+range-] [tx/prf] [auto-tune] [menu

    9.7.1 Adjusting a receiver [+RANGE-] [TX/PRF] [AUTO-TUNE] [MENU] 1. Tuning preset On this menu, make a rough tuning adjustment. When this menu is displayed, the automatic tuning setting state is temporarily changed to manual tuning setting during adjustment. At completion of adjustment, the mode is reset to automatic tuning setting. Use the following procedure to perform tuning preset.

  • Page 183

    (b) Display the INSTALLATION menu by pressing the [MENU] key in long mode, select RADAR , RADAR ADJUST , and CENTER FRQ , and press [JOG DIAL] or [ACQ/ENT]. (c) Adjust the frequency by changing the value by turning [JOG DIAL] to the left or right, and end the operation by pressing [JOG DIAL] or [ACQ/ENT].

  • Page 184: Noise Level Adjustment [menu, Azimuth Adjustment [tm/rm] [azi Mode] [menu

    9.7.2 Noise level adjustment [MENU] Adjust the base level of the echo that is displayed on the PPI screen. Caution ● ● ● ● Since this adjustment is made at the factory before delivery, basically, the settings must not be changed. Unnecessary adjustments cause degradation of sensitivity, causing image display abnormality.

  • Page 185: Mile Adjustment [tm/rm] [azi Mode] [menu, Setting A Scanner Unit Height [menu

    B B B B E E E E A A A A R R R R I I I I N N N N G G G G 0 0 0 0 3 3 3 3 4 4 4 4 5 5 5 5 9.7.4 0 mile adjustment [TM/RM] [AZI MODE] [MENU] This operation is to adjust the distance calibration on the PPI screen.

  • Page 186: Setting A Gyro Value [menu] [azi Mode

    9.7.6 Setting a gyro value [MENU] [AZI MODE] After connecting an optional NSK unit, set a master gyro value in the NSK unit. The GPS compass JLR-10 of JRC always can output absolute azimuth without gyro setting. Therefore, do not set a gyro value when connecting JLR-10.

  • Page 187: Various Initial Settings, Sensitivity Preset [auto-sea] [auto-rain] [gain/pl] [menu

    9.8 Various Initial Settings This section describes the various settings required to facilitate the use of radar such as setting of radar signal processing and setting at connection of various types of navigation equipment. 9.8.1 Sensitivity preset [AUTO-SEA] [AUTO-RAIN] [GAIN/PL] [MENU] Set the maximum level indicated when the "Sensitivity"...

  • Page 188

    (In this state, the echo is displayed at the highest level on this PPI screen.) (g) Display the INSTALLATION menu by pressing the [MENU] key in long mode, select RADAR , RADAR ADJUST2 , and STC PRESET , and press [JOG DIAL] or [ACQ/ENT].

  • Page 189: Setting A Close Range Dynamic Range [menu

    Adjust the main bang suppression level by turning [JOG DIAL] and erase the main bang. After completion of adjustment of the suppression level, end the operation by pressing [JOG DIAL] or [ACQ/ENT]. M M M M B B B B S S S S L L L L V V V V L L L L 1 1 1 1 2 2 2 2 8 8 8 8 Consequently, the main bang suppression level has been adjusted.

  • Page 190: Setting A Video Gradation Level [menu, Setting Video Noise Suppression Display [menu

    D D D D R R R R . . . . N N N N E E E E A A A A R R R R R R R R N N N N G G G G . . . . 3 3 3 3 ....

  • Page 191: Setting A Small Target Detection Mode [menu

    Use the following procedure to set a video gradation level. Use the following procedure to set a video gradation level. Use the following procedure to set a video gradation level. Use the following procedure to set a video gradation level. (a) Display the INSTALLATION menu by pressing the [MENU] key in long mode, select RADAR , RADAR SETTING , and...

  • Page 192: Setting A Float Mode [menu, Setting An Inference Suppression Function Level [menu

    9.8.8 Setting a float mode [MENU] Use this function to change a start level of STC near your ship by adjusting the [AUTO-SEA] knob on the keyboard when buoys such as floats are to be displayed and the auto STC function is ON. In general, when buoys such as floats are to be observed by setting the auto STC/auto FTC function to ON, it is recommended to set a tolerant level for the STC near your ship.

  • Page 193: Setting A Short Distance Dynamic Range [menu

    9.8.10 Setting a short distance dynamic range [MENU] Use this function to change a short distance dynamic range by using the [AUTO-SEA] knob. Use the following procedure to set a video gradation level. Use the following procedure to set a video gradation level. Use the following procedure to set a video gradation level.

  • Page 194: Setting Target Expansion Function Control [menu, Setting A Sensitivity Correction Value [menu

    9.8.12 Setting target expansion function control [MENU] Use this function to set whether the target expansion function can be set to ON in the main menu. Use the following procedure to set a video gradation level. l. l. l. Use the following procedure to set a video gradation leve Use the following procedure to set a video gradation leve Use the following procedure to set a video gradation leve (a) Display the INSTALLATION menu by pressing the [MENU] key in long mode, select...

  • Page 195: Setting Transmission Power Control [menu, Setting A Scanner Unit Rotation Speed [menu

    9.8.14 Setting transmission power control [MENU] This function sets transmission power. The following options are available. NORMAL : Normal power HIGH POWER : Although the life span of the magnetron decreases, the sensitivity increases. ECONOMY : Although the sensitivity decreases, the life span of the magnetron increases.

  • Page 196: Setting Information In A Gps Receiver

    ● ● ● ● There is no scanner unit rotation speed function in 4KW. 9.8.16 Setting information in a GPS receiver In this section, initial values are set in a GPS receiver (GPS receiver of JRC). 1. Setting the position of your own ship [MENU] Transmit latitude and longitude information of the position of your own ship to a GPS receiver.

  • Page 197

    (b) When the following menu is displayed, change the numbers using [JOG DIAL], and if a required value is set, end the operation by pressing [JOG DIAL] or [ACQ/ENT]. GPS SETTING POSITION N 36°36.000' E136°36.000' ANTENNA HEIGHT WGS-84 FIX MODE AUTO HDOP LEVEL AVERAGE...

  • Page 198

    List of geodetic information Name WGS-84 WGS-72 Japan North American 1927 (U.S) North American 1927 (Canada & Alaska) European 1950 (Europe) Australian geodetic 1966 (Australia) Ordance Survery of Great Britain (England) NAD-83 - (no use) - (no use) ADINDAN (Etiopia & Sudan) ARC 1950 (Botswana) AUSTRALIAN GEODETIC 1984 (Australia) BERMUDA 1957 (the Bermudas)

  • Page 199

    Name MERCHICH (Morocco) MINNA (Cameroon) NAHRWAN (Oman) NAPARIMA, BWI (Trinidad and Tobago) OLD EGYPTIAN (egypt) OLD HAWAIIAN (the Hawaii Island) PICO DE LAS NIEVES (the Canary Island) PROVISIONAL SOUTH AMERICAN 1956 (South America) PROVISIONAL SOUTH CHILEAN 1963 (Southern Chile) PUETRO RICO (Puerto Rico and V irgin Island) QORNOQ (South Greenland) RT90 (Sweden) SANTA BRAZ (Sao Maguel, Santa Maria Island)

  • Page 200

    4. Setting a position fixing mode [MENU] This function sets a position fixing mode of a GPS receiver and sends the information to a GPS receiver. 2D cannot obtain height information in two-dimensional position fixing. 3D cannot obtain height information in three-dimensional position fixing. AUTO automatically selects the optimum of 2D and 3D position fixing.

  • Page 201

    6. Setting an averaging level [MENU] This function sends time data for averaging position information that is output from a GPS receiver to a GPS receiver. Three types of averaging levels, 2 seconds, 10 seconds, and 40 seconds, are available. A lower value represents faster data updating, however, the position information that is received is uneven.

  • Page 202

    8. GPS receiver master reset [MENU] This function sends master reset to a GPS receiver and initializes the GPS receiver. Normally, customers need not set this information. Normally, customers need not set this information. Normally, customers need not set this information. Normally, customers need not set this information.

  • Page 203

    GPS SETTING POSITION N 36°36.000' E136°36.000' ANTENNA HEIGHT 10M GEODETIC DATUM WGS-84 FIX MODE AUTO HDOP LEVEL AVERAGE MANUAL 2S EXCLUDE SAT 00 00 00 TX COMMAND 00 00 00 TRANSMIT… COMPLETE! 10. Setting UTC time [MENU] This function sends UTC (world time) to a GPS receiver. Use the following procedure to set the UTC setting to a GPS receiver.

  • Page 204

    Use the following procedure to set updated setting values Use the following procedure to set updated setting values..Use the following procedure to set Use the following procedure to set updated setting values updated setting values (a) Display the INSTALLATION menu by pressing the [MENU] key in long mode, select GPS , GPS SETTING2 , TX COMMAND and press [JOG DIAL] or [ACQ/ENT].

  • Page 205: Setting Information In A Dgps Receiver

    9.8.17 Setting information in a DGPS receiver Set initial values in a DGPS receiver (differential GPS receiver of JRC). 1. Setting a DPGS mode [MENU] This function sends the mode setting of a DGPS receiver to the DGPS receiver. Use the following procedure to set the mode setting of a DGPS receiver to the DGPS receiver.

  • Page 206

    DGPS SETTING MODE AUTO FREQUENCY 288.0KHZ BAUDRATE 200BPS 200BPS TX COMMAND 4. Setting a DPGS mode [MENU] This function sends the DPGS ON/OFF (GPS mode) setting to a DGPS receiver. When the DPGS mode is set to ON, high precision position information can be obtained using the information from a beacon station.

  • Page 207: Setting Information In A Waas Receiver

    9.8.18 Setting information in a WAAS receiver Set initial values in WAAS receiver (WAAS receiver of JRC). A WAAS receiver demonstrates high precision position fixing from GPS by receiving, from satellites also, the same information as that received from the DGPS beacon station.

  • Page 208

    (a) Display the INSTALLATION menu by pressing the [MENU] key in long mode, select GPS , WAAS SETTING , NG WAAS , and press [JOG DIAL] or [ACQ/ENT]. (b) When the following menu is displayed, select NO USE or USE by turning [JOG DIAL] and end the operation by pressing [JOG DIAL] or [ACQ/ENT].

  • Page 209: Displaying Gps Receiving Status, Initializing Ata [menu

    9.8.19 Displaying GPS receiving status This function displays receiving status of the GPS receiver (GPS/DGPS/WAAS receiver) connected now. Use the following procedure to display the GPS receiver status. Use the following procedure to display the GPS receiver status. Use the following procedure to display the GPS receiver status. Use the following procedure to display the GPS receiver status.

  • Page 210: Setting A Course Data Input Type [menu

    ATA SETTING LEVEL G VECTOR CONST AUTO ACQ TEST VIDEO NUMBERING AUTO GATE DISP Other items are available on the ATA menu of the second level. Other items and the operation method of ATA are included in the MARPA unit that is sold separately. See the instruction manual of the unit.

  • Page 211: Setting Manual Course Data [menu, Setting A Speed Data Input Type [menu

    9.8.22 Setting manual course data [MENU] When Manual is selected as course data input on the menu shown above, enter a manual course. Use the following procedure to set manual course data input. Use the following procedure to set manual c ourse data input.

  • Page 212: Setting Manual Speed Data [menu, Setting Own Ship's Position Input Selection [menu

    9.8.24 Setting manual speed data [MENU] Input a manual course required when manual is selected as the speed data input on the menu shown above. Use the followi Use the following procedure to set speed data input. Use the followi Use the followi ng procedure to set speed data input.

  • Page 213: Setting Own Ship's Position Input [menu, Setting A Compass Input Baud Rate [menu

    9.8.27 Setting a compass input baud rate [MENU] Set a baud rate of a compass port. Optional NSK unit : 9600BPS GPS compass JLR-10 of JRC : 9600BPS NEMA-0183 input equipment such as electronic compass : 4800BPS Use the following procedure to set speed data input.

  • Page 214: Setting Connection Of The 2nd Keyboard [menu, Setting A Nmea Data Output Frequency [menu

    JLR-10(9600) COMPASS(4800) The signal formats which can be input from J5 of COMPSS port are as follows. NSK (9600) : JRC original format JLR-10 (9600) : JRC original format COMPASS (4800) : MNEA0183 signal, HDT, HDG,VHW, VHW, HDM 9.8.28 Setting connection of the 2nd keyboard [MENU] Set the presence or absence of an optional 2nd keyboard.

  • Page 215: Setting Selection Of A Magnetic Azimuth Sensor Correction Value [menu

    (a) Display the INSTALLATION menu by pressing the [MENU] key in long mode, select DATA/IN OUT and NMEA OUT and press [JOG DIAL] or [ACQ/ENT]. (b) When the following menu is displayed, select the output times to be changed from GGA , GLL , RMC , VTG , OSD , RSD , and TTM by turning [JOG DIAL] and press [JOG DIAL] or [ACQ/ENT].

  • Page 216: Setting Manual Data For A Compass Correction Value [menu

    (b) When the following menu is displayed, select MANUAL or RMC by turning [JOG DIAL] and end the operation by pressing [JOG DIAL] or [ACQ/ENT]. CALIBRATION MAG CORR. MANUAL MANUAL 0.0 ° 9.8.31 Setting manual data for a compass correction value [MENU] Input a manual correction value as the manual correction data input as shown above.

  • Page 217: Setting A Display Direction Of The Indicator [menu

    (b) When the following menu is displayed, select 4800 , 9600 , 19200 , or 38400 by turning [JOG DIAL] and end the operation by pressing [JOG DIAL] or [ACQ/ENT]. BAUD RATE PANEL 4800 4800 4800 9.8.34 Setting a display direction of the indicator [MENU] Set a display direction of the indicator.

  • Page 218: Setting Reading/writing Setting Values To Non-initialization Memory [menu

    (b) When the following menu is displayed, set a required value by turning [JOG DIAL] and end the operation by pressing [JOG DIAL] or [ACQ/ENT]. LCD SETTING HS DISP SATART Use the following procedure to set vertical display timing of the indicator. Use the following procedure to set vertical display timing of the indicator.

  • Page 219: Initializing A Menu Storage Area [menu, Displaying Simulator Images

    LOAD LOAD YOUR MENU SETTING ARE YOU SURE? As a result of the operation indicated above, the data that was set by initialization is returned. 9.8.37 Initializing a menu storage area [MENU] Initialize all the menu areas other than the initialization area (installation setting storage area). Use the following procedure to initialize menu storage areas.

  • Page 220: Special Mode

    Caution ● ● ● ● This function becomes effective only when the radar is in preparation state. When an external simulator is connected, set a special mode of the item and select OFF . 9.8.39 Special mode Use this function to select a mode that allows transmission with the safety switch or the motor line disconnected.

  • Page 221: Resetting Adjustments To The Initial State

    9.9 Resetting Adjustments to the Initial State When detecting any of the following problems, turn off the power once and then turn it on again. Radar is busy. The screen is unstable. The keys are locked. If the problem cannot be solved, initialize the equipment using the following procedure. Caution ●...

  • Page 222

    9.10 Maintenance 9.10.1 General maintenance To operate radar equipment constantly in a good condition, the following maintenance is necessary. Maintain the equipment periodically. Periodic maintenance reduces failures. The following common maintenance points are applied to each unit. 1. Cleaning the equipment Remove dust, stains, and seawater from the cabinet as much as possible.

  • Page 223

    1. Radiation section (a) Radiation side of the radiation section (JMA-5104: All sides of the radome cover) If JMA5106/JMA-5110 (entire area of the radiation section) is contaminated or damaged by smoke, dust, or paint, attenuation and reflection of waves occur, causing deterioration of radar performance.

  • Page 224

    JMA-5110 Carbon brush 54583-01 BRSW00101 * Since the brush of JMA-5104 cannot be replaced, it must be replaced by motor ASSY. (c) Mounting stand Check the scanner unit mounting volts occasionally and paint them every six months to prevent corrosion.

  • Page 225

    9.10.3 Display Cleaning display Caution ● ● ● ● When dust is attached on the LCD display area, the clarity deteriorates and the image becomes dark. Clean the surface with soft cloth (flannel or cotton) gently. The cloth can be dipped with an antistatic agent; however, do not rub the surface strongly.

  • Page 226: Fig. 101 Interconnection Diagram Of

    MODULATOR CCT. CME-322 BLK.T(-) BLK.T BLK.T(-) BLU.T/GRY.T CFQ-6911-5 WHT.T/ORG.T BLU.T/GRY.T PUR.T/BRN.T PUR.T/BRN.T RED.T/GRN.T WHT.T/ORG.T RED.T/GRN.T YEL.T/PNK.T Shilede BLK. CFQ-6912-20/30 BLK.T/SKY.T COAX RECEIVER CCT. CAE-475 Shielded ORG. Shielded wire COAX COAX. 50 ohms Large wire [Fig. 101 INTERCONNECTION DIAGRAM OF JMA-5104]...

  • Page 227: Fig. 102 Interconnection Diagram Of

    PRCESSING UNIT NDC-1260 SCANNER UNIT NKE-2062 FILTER CCT. CFR-194 RED.T RED.T(+) BLK.T/SKY.T RED.T RED.T(+) YEL.T/PNK.T RED.T SHIP'SMAIN RED.T(+) DC10.8V (However, in CFQ-6912-30 use, BLK.T BLK.T(-) DC21.6V 42V) BLK.T FILTER CCT. CFR-193 BLK.T(-) BLK.T BLK.T(-) BLU.T/GRY.T CFQ-6911-5 WHT.T/ORG.T PUR.T/BRN.T BLU.T/GRY.T RED.T/GRN.T PUR.T/BRN.T WHT.T/ORG.T RED.T/GRN.T...

  • Page 228: Fig. 103 Interconnection Diagram Of

    PRCESSING UNIT NDC-1260 SCANNER UNIT NKE-2102 FILTER CCT. CFR-193 RED.T RED.T(+) RED.T RED.T(+) BLU.T/GRY.T RED.T RED.T(+) WHT.T/ORG.T SHIP'SMAIN DC21.6V BLK.T BLK.T(-) BLK.T BLK.T(-) PUR.T/BRN.T BLK.T BLK.T(-) RED.T/GRN.T CFQ-6911-5 BLU.T/GRY.T MODULATOR CCT. CPA-248 PUR.T/BRN.T BLK.T/SKY.T WHT.T/ORG.T YEL.T/PNK.T RED.T/GRN.T YEL.T/PNK.T BLK. CFQ-6912-20/30 Shilede BLK.T/SKY.T COAX...

  • Page 229

    42V) +2.5V J1-1 +2.5V AVR circuit Power supply circuit (CBD-1638) Keyboard unit (NCE-7640) +12V STBY/OFF X-MIT/OFF +12V Oscillator Keyboard circuit (CCK-892) circuit Display unit (NWZ-146) MRPA circuit (CDC-1144) (Option) Main control circuit [Fig. 104. PRIMARY POWER SYSTEM DIAGRAM OF JMA-5104]...

  • Page 230: Fig. 105 Primary Power System Diagram Of

    Display unit (NCD-4310) Scanner unit (NKE-2062) Modulator circuit (CME-323) +330V AVR circuit +15V Relay +12V Relay Main control circuit (CMC-1190) Receiver circuit +3.3V +1.8V J1-2 Ship's main (CAD-475-1) Noise filter (DC +10. 2V to 42V) +2.5V J1-1 Motor unit (CBP-153) Motor control +2.5V AVR circuit...

  • Page 231: Fig. 106 Primary Power System Diagram Of

    Display unit (NCD-4310) Scanner unit (NKE-2102) Modulator circuit (CPA-248) Noise filter Interface Relay +15V +15V Filter circit Relay Main control circuit Interface Safty switch circuit (CMC-1190) Motor +3.3V +1.8V Noise filter J1-2 Ship's main Power supply Controler Moter (DC +10. 2V circuit Driver +13V...

  • Page 232: Fig. 107 Internal Connection Of Scanner Unit

    [Fig. 107 INTERNAL CONNECTION OF SCANNER UNIT NKE-2042]...

  • Page 233: Fig. 108 Internal Connection Of Scanner Unit

    [Fig. 108 INTERNAL CONNECTION OF SCANNER UNIT NKE-2062]...

  • Page 234: Fig. 109 Internal Connection Of Scanner Unit

    Scanner Unit : NAX-16B-6 Transmitter/Receiver NZT-2102 Receiver Unit NRG-226 Internal Connection of Receiver Unit CMA-823 Receiver Circuit 1. TNC CAE-475-1 2. +5V PC 301 3. E 4. NC 5. IF V101 MSF1425B E101 A101 A102 NJT1969 H-6AJRD0001 NJS6930 J1005 J204 H-7ZCRD0872* 1.

  • Page 235: Fig. 110 Circuit Drawing Of Modulator Unit

    [Fig. 110 CIRCUIT DRAWING OF MODULATOR UNIT CME-322]...

  • Page 236: Fig. 111 Circuit Drawing Of Modulator Unit

    [Fig. 111 CIRCUIT DRAWING OF MODULATOR UNIT CME-323]...

  • Page 237

    T1-4 T1-3 T1-2 T1-9 T1-10 T1-11 CD15 U1DL44A SI-3052V CD34 J1001 125U 1.5K TLG124A 0.1U 100U 0.1U 2.2K 10FL2C48A 02CZ36-TE85L AGND 470U 0.1U 2.2K 0.1U 1800U AGND 2SC2983 0.1U CD11 2SC2983 1000U B02P-NV 2SK2995 0.01U 02CZ36-TE85L CD16 U1DL44A 0.1U 0.1U 0.1U 0.1U 5DL2C48A...

  • Page 238

    T1-4 CD17 CD18 J1005 PA1A-12V PA1A-12V FMU-G2FS FMU-G2FS CD19 CD20 100K +15V +15V 0.01U FMU-G2FS FMU-G2FS 350210-2 100K 0.1U CD21 CD35 AGND AGND JP10 SM-1XN02 SM-1XN02 CD22 CD36 10kW JP10 : 1-3SHORT T1-3 MFCH06D510 MFCH06D510 IL-3P-S3EN2 TR10 TR19 2SC2712-YTE85L 2SC2712-YTE85L 3.3K 3.3K JP25...

  • Page 239: Fig. 114 Circuit Drawing Of Modulator Unit

    J204 HP-023Z DSS310-55D223S +15V 2.2U 2.2U 350210-2 To magnetron heater 100U 0.1U +15V AGND To magnetron cathode U1DL44A-TE12L DSS310-55D223S +12V 2SC2712-YTE85L 4.7K 0.01U 0.1U 100U 4.7K +15V AGND H-7LTRD0117 JV1-DC12V AGND 470P DSS310-55D223S 0.1U 100U H-7LZRD0117 0.1U 100U AGND 100P AGND 2SA1162-YTE85L 5.6K...

  • Page 240: Fig. 115 Internal Connection Of Display Unit

    [Fig. 115 INTERNAL CONNECTION OF DISPLAY UNIT NCD-4310]...

  • Page 241: Fig. 116 Circuit Drawing Of Power Supply Unit

    [Fig. 116 CIRCUIT DRAWING OF POWER SUPPLY UNIT CBD-1638]...

  • Page 242

    For further information contact: HEAD OFFICE & Nittochi Nishi-shinjuku bldg, SALES DEPT. 10-1, Nishi-Shinjuku 6-chome, Shinjuku-ku, Tokyo 160-8328 JAPAN Phone : +81-3-3348-0151 : +81-3-3348-3648 MAIN PLANT 1-1, Shimorenjaku 5-chome, Mitaka-shi Tokyo 181-8510 JAPAN Phone : +81-422-45-9111 : +81-422-45-9110 CODE No. 7ZPRD0590...

This manual also for:

Jma-5106, Jma-5110

Comments to this Manuals

Symbols: 0
Latest comments:
