4.1 Configuring DIP Switch Settings

Dismounting the bottom cover of the Bridge Satellite Cradle exposes the DIP switches. You can
change the ON/OFF settings of the DIP switches to set the configuration. Please, set after switching
OFF the power.

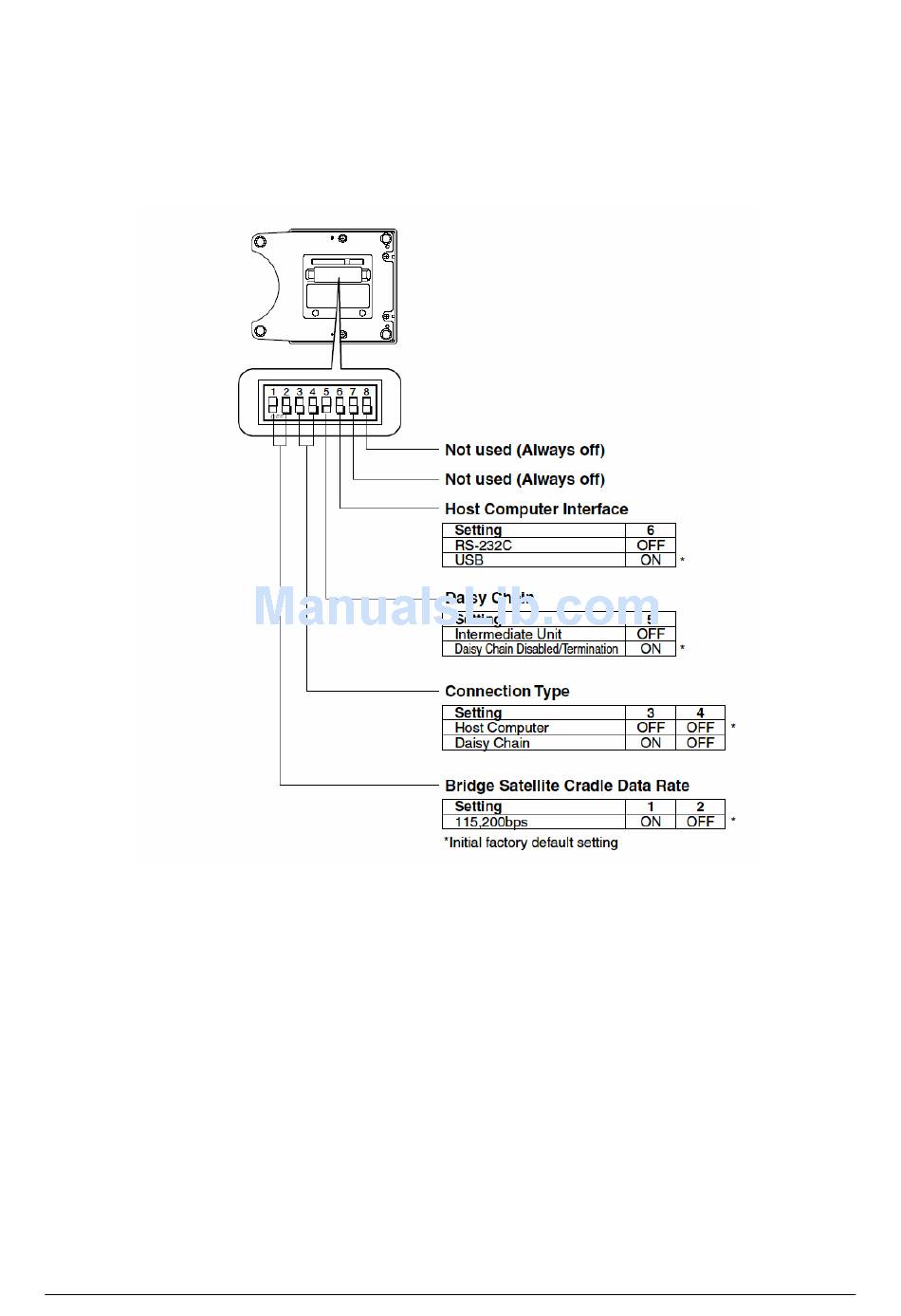

Figure 4.3
Note:
Other DIP switch settings are used for testing and inspection purposes. Because of this, you should
never use any DIP switch settings other than those described above.
24
