4. Setting Up Bridge Satellite Cradle

Use the dedicated AC adaptor (AD-S42120B) available as option for the DT-160IOE Bridge
Satellite Cradle to supply the power to the terminal. Always make sure that the power is being
supplied to the cradle by the AC adaptor before performing any kind of communication with the
terminal. The terminal draws the power via the cradle during communication.
1. After making sure that the Bridge Satellite Cradle power switch is turned off, plug the AC
adaptor into the AC adaptor jack on the back of the cradle.

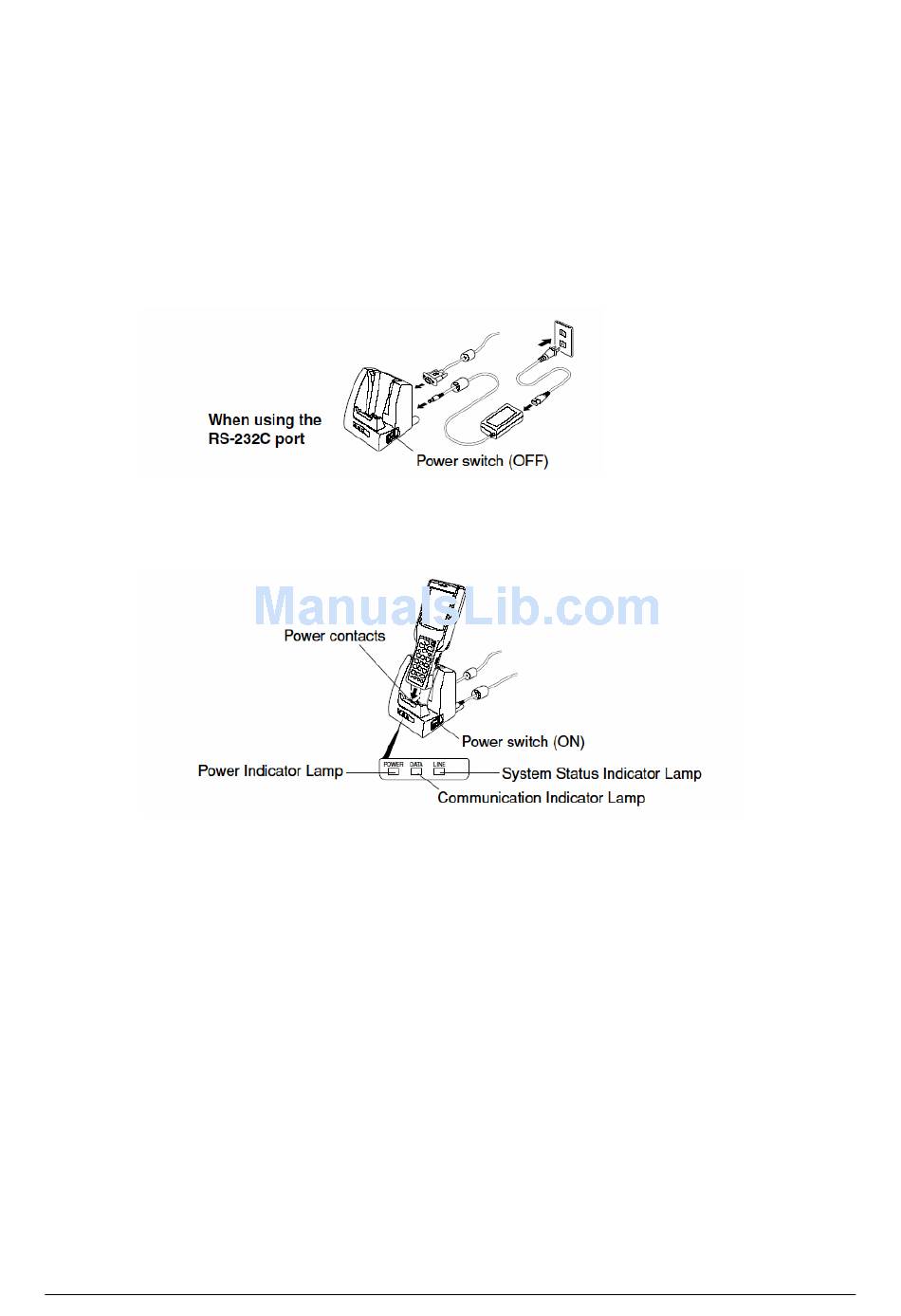

Figure 4.1
2. Next, plug the AC adaptor into a power outlet on wall.
Figure 4.2
3. After making sure that the Bridge Satellite Cradle and your PC are both turned off, remove the
cap from each connection port on the cradle, and then perform one of the following steps to
establish connection between the terminal and the PC. Be sure to keep the connection ports
covered whenever you are not using them.
- RS-232C Connection
Connect an RS-232C cable (DT-887AXA) to the RS-232C port on the cradle. Connect the
other end of the cable to your PC's RS-232C port.
- USB Connection
Connect a USB cable (DT-380USB) to the USB port on the cradle. Connect the other end of
the cable to your PC's USB port.
