M-Vision Cine 320 Series

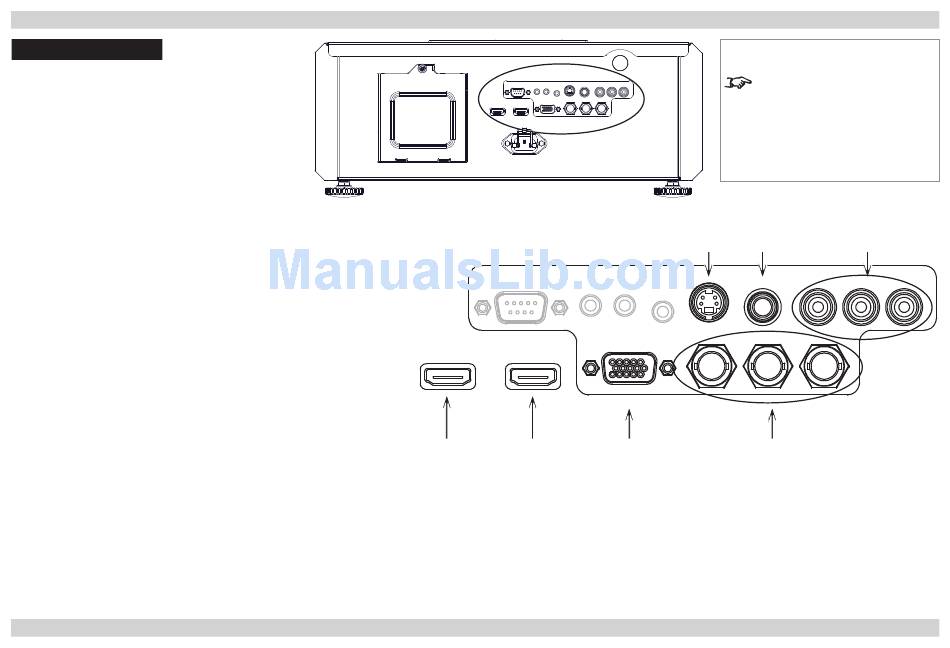

Signal Inputs
HDMI 1 and 2
HDCP-compliant digital video inputs from HDMI or DVI
sources.
RGB
15 pin D-type VGA style input from personal computer
Component 1
RCA phono connectors for RGBS, (using Video input for
sync) or YPbPr
Component 2
BNC connectors for YPbPr
Video
RCA phono connector for composite video or used as
sync input for Component 1
S-Video
Standard 4 pin S-Video connector
.
Rev D July 2014
SIGNAL INPUTS
HDMI 1
HDMI 2
For a complete listing of pin
configurations for all signal and
control connectors, see Wiring
Details later in this guide.
S-Video
Video
RGB
Component 2
Connection Guide
Notes
Component 1
15
