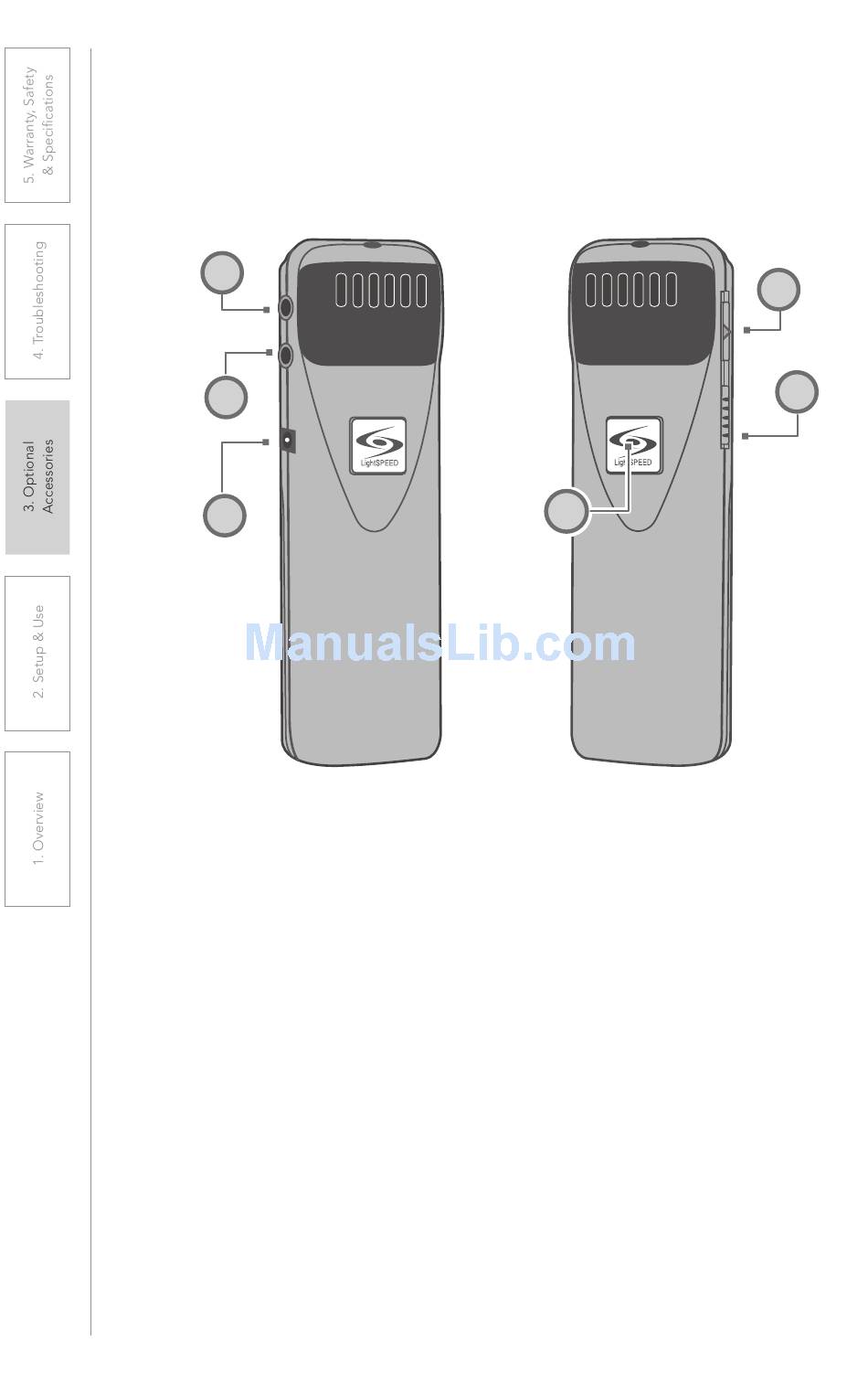

OPTIONAL LT-71: Controls and Connections
1. ON/OFF/MUTE Switch
2. CHANNEL SELECT SWITCH (CH
A/B): Use this to choose Channel
A or B. If you are using a single
microphone, we recommend using
Channel A.
3. POWER/CHARGE INDICATOR: A
BLUE light indicates the REDMIKE
VC is on and fully charged. A RED
light indicates a charge is needed.
4. EXTERNAL MICROPHONE
INPUT (MIC): Use the 3.5mm
MIC jack for the optional TK-250
headset microphone (part# MC-
TK250LTM).
24
4
LT-71
5
6
LT-71
3
5. AUXILIARY (AUX): Plug a laptop,
MP3 player or other audio source
into this jack to wirelessly transmit
the audio signal to be played
through the system.
6. CHARGER INPUT (CHARGER):
Plug the charging cable from the
charger into this jack for daily
charging. The LED on the front will
glow RED to indicate charging.
