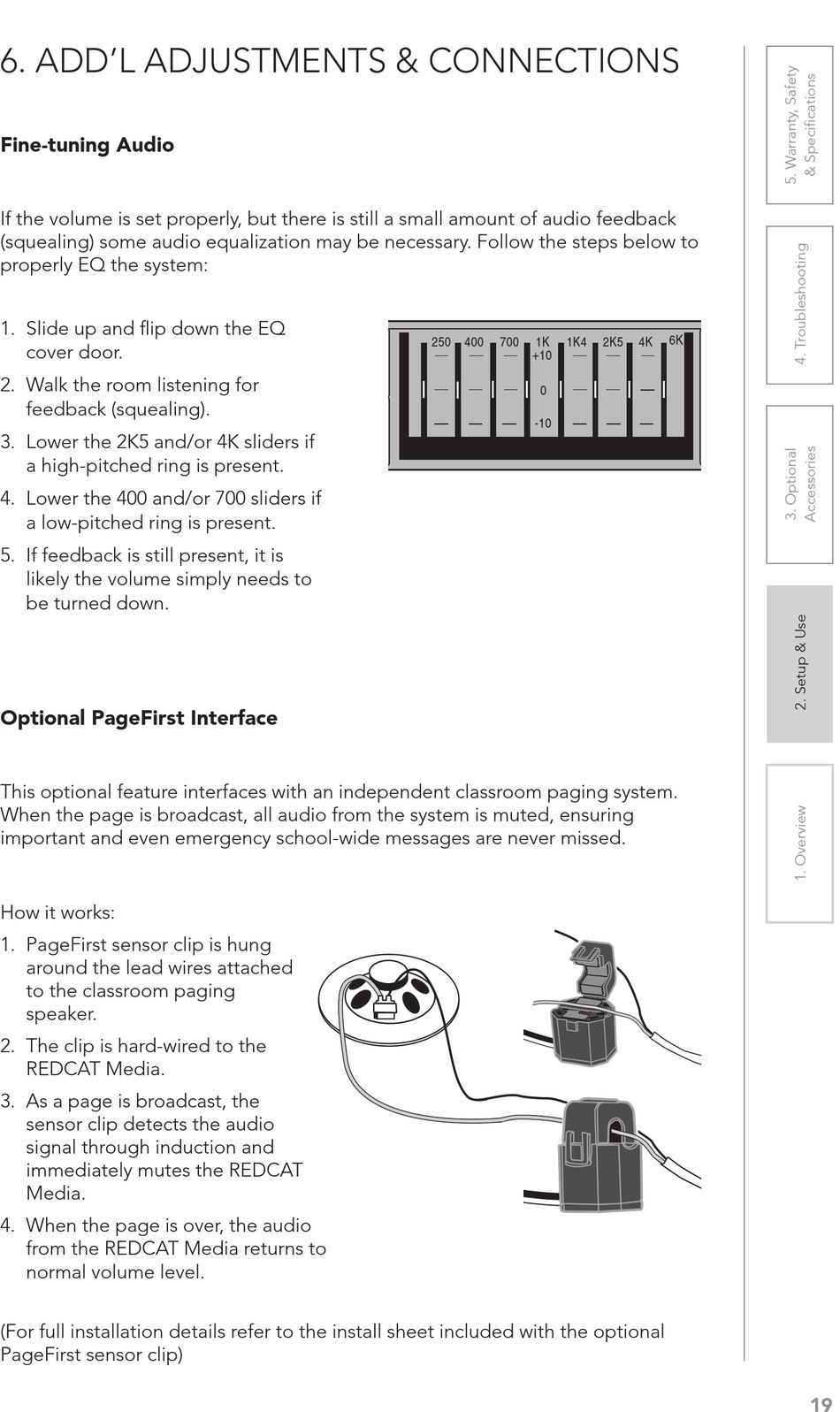

6. ADD'L ADJUSTMENTS & CONNECTIONS
Fine-tuning Audio
If the volume is set properly, but there is still a small amount of audio feedback
(squealing) some audio equalization may be necessary. Follow the steps below to
properly EQ the system:
1. Slide up and flip down the EQ
VOL.
cover door.
COMPUTER
ADJ.
2. Walk the room listening for
feedback (squealing).
800iX
INPUT
3. Lower the 2K5 and/or 4K sliders if
a high-pitched ring is present.
4. Lower the 400 and/or 700 sliders if
a low-pitched ring is present.
5. If feedback is still present, it is
likely the volume simply needs to
be turned down.
Optional PageFirst Interface
This optional feature interfaces with an independent classroom paging system.
When the page is broadcast, all audio from the system is muted, ensuring
important and even emergency school-wide messages are never missed.
How it works:
1. PageFirst sensor clip is hung
around the lead wires attached
to the classroom paging
speaker.
2. The clip is hard-wired to the
REDCAT Media.
3. As a page is broadcast, the
sensor clip detects the audio
signal through induction and
immediately mutes the REDCAT
Media.
4. When the page is over, the audio
from the REDCAT Media returns to
normal volume level.
(For full installation details refer to the install sheet included with the optional
PageFirst sensor clip)
AUDIO INPUTS
L R L
TV/VCR CD/DVD
PAGING INPUT
250 400 700
R
ADJ
6K
1K 1K4 2K5 4K
+10
0
-10
SENSOR
SHORT
SENSOR INPUTS
