EN | 16

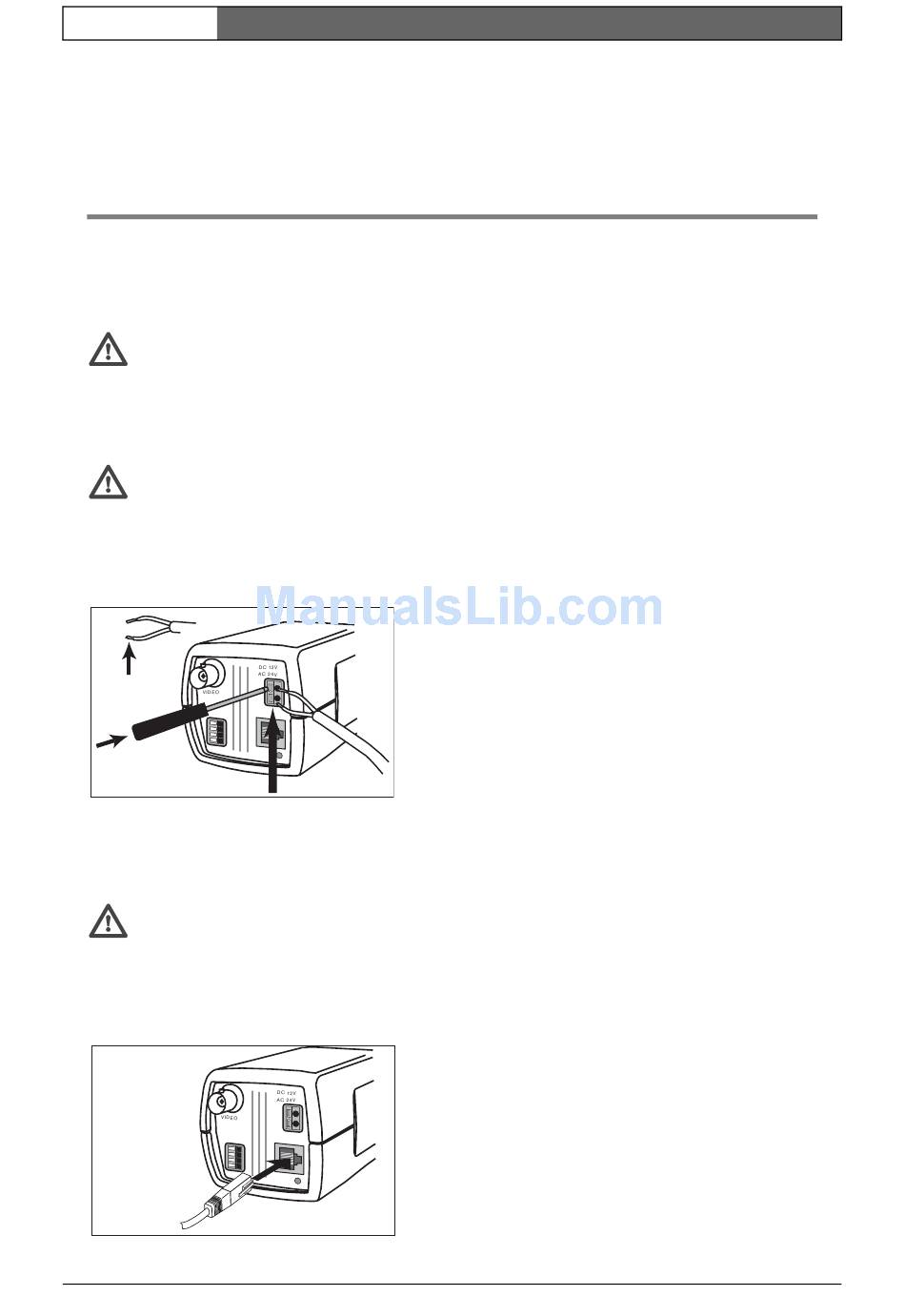

Connections

Power

Caution
Ensure that your power supply matches the rated voltage of your camera
before installing.
Caution
Never supply power via the power connector when power is supplied via
the Ethernet connection (PoE).
10mm
AL AR M

Network (and power)

Caution
Never supply power via the Ethernet connection (PoE) when power is
supplied via the power connector.
AL AR M
UTP Cat 5 RJ45
• use a class 2 power supply
• 24 VAC or 12 VDC
• push in the tabs to open the quick-connectors
• use AWG16 to 22 stranded wire or AWG16 to
ET H
• connect the camera to a 10/100 Base-T
• use a shielded UTP Category 5 cable with
• Power can be supplied to the camera via the
ET H
Dinion IP
(these connections are not polarity sensitive).
26 solid wire; cut back 10mm (0.4") of
insulation.
network.
RJ45 connectors.
Ethernet cable compliant with the Power-over-
Ethernet (IEEE 802.3af) standard.
Bosch Security Systems | 2006-05 | V2.0
| Installation Manual
