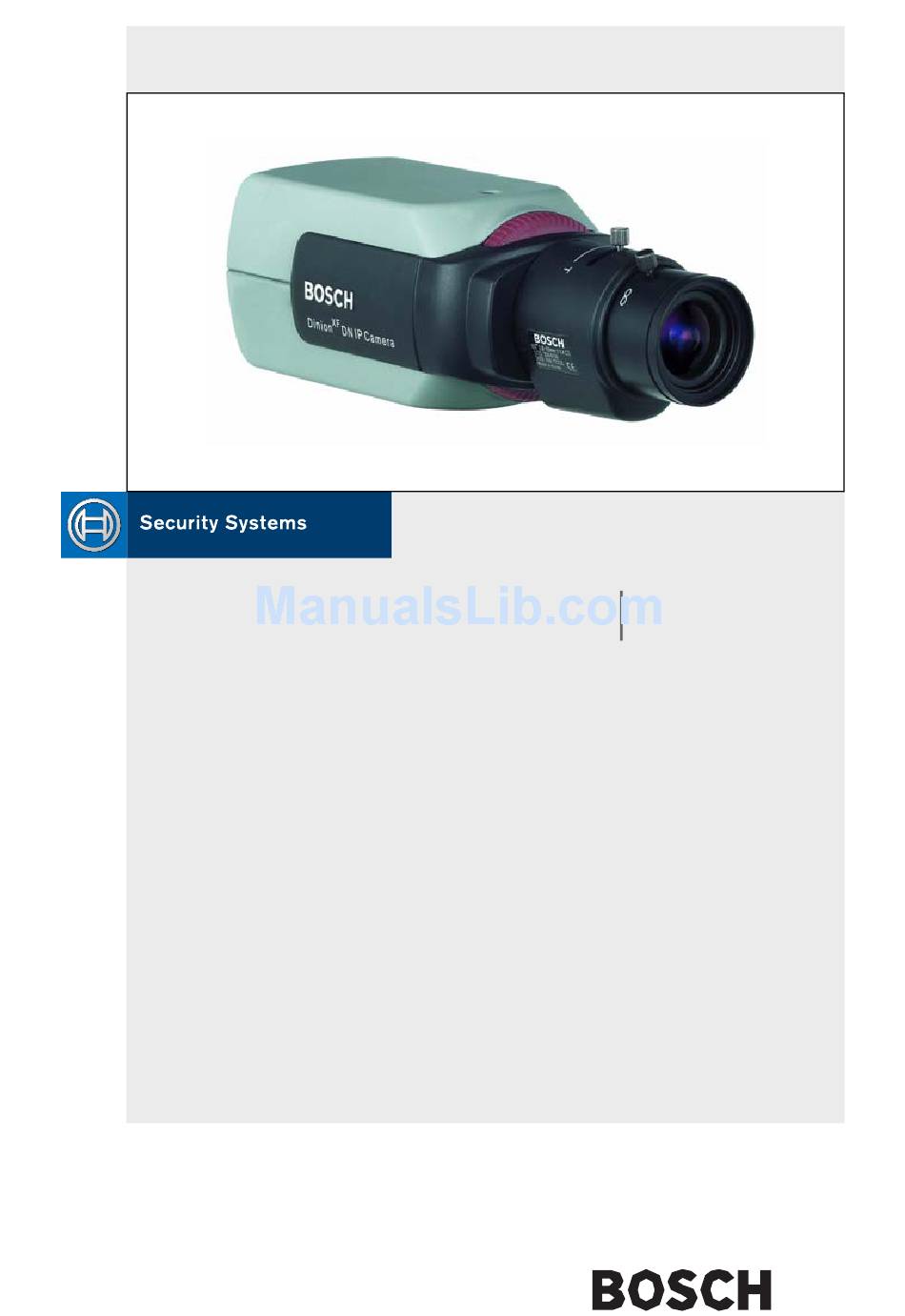

  • Page 1 Dinion IP - NWC-0455 Installation Manual IP Camera...
  • Page 2 | Installation Manual Copyright This user guide is the intellectual property of Bosch Security Systems and is protected by copyright. All rights reserved. No part of this document may be reproduced or transmitted for any purpose, by whatever means, electronic or mechanical, without the express written permission of Bosch Security Systems.

  • Page 3: Table Of Contents

    Back focus adjustment ..................20 Accessing and navigating quick set-up menu ..........21 How to use the navigation keys ..............21 Install menu ......................22 Install lens wizard submenu .................22 Install IP address submenu ................23 Defaults ......................24 Bosch Security Systems | 2006-05 | V2.0...
  • Page 4 Encoder Settings ....................39 Selecting an encoder profile ................40 Changing profiles ...................41 JPEG posting ....................44 Camera settings ....................45 ALC ........................46 Enhance ......................47 Color ........................47 Installer options ....................48 Recording ........................49 Type ........................49 Storage information ..................49 Bosch Security Systems | 2006-05 | V2.0...
  • Page 5 Motion detector ....................66 Sensitivity ......................66 Tamper detection ...................67 Alarm e-mail ......................70 Send alarm e-mail ...................70 Mail server IP address ...................70 Layout ........................70 Attach JPEG from camera ................71 Destination address ..................71 Sender name ....................71 Bosch Security Systems | 2006-05 | V2.0...
  • Page 6 OPERATION WITH DECODER SOFTWARE ........84 MAINTENANCE ..................85 Testing the network connection .................85 Repairs ........................85 Transfer and disposal ..................85 TROUBLESHOOTING ................86 SPECIFICATIONS ................88 Dimensions ......................89 ACCESSORIES ...................90 Recommended lenses ...................90 Power transformers ..................90 GLOSSARY ..................91 Bosch Security Systems | 2006-05 | V2.0...

  • Page 7: Safety Precautions

    10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the equipment. 11. Only use attachments/accessories specified by the manufacturer. Bosch Security Systems | 2006-05 | V2.0...

  • Page 8: Fcc Information

    • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. Bosch Security Systems | 2006-05 | V2.0...
  • Page 9 Bosch could void the user's authority to operate the equipment. For additional information or to speak to a representative, please contact the Bosch Security Systems location nearest to you or visit our web site at www.boschsecuritysystems.com Only for EU countries...
  • Page 10 Dinion IP EN | x | Installation Manual Bosch Security Systems | 2006-05 | V2.0...

  • Page 11: Introduction

    • Event-driven, automatic connection (for example at switch-on and for alarms) • Fast, convenient configuration using the integrated Web server and a browser • Firmware update through flash memory • Convenient upload and download of configuration data Bosch Security Systems | 2006-05 | V2.0...

  • Page 12: Type Number Overview

    If equipment appears to have been damaged during shipment, repack it in the original packaging and notify the shipping agent or supplier. System requirements • Computer with Windows 2000/XP operating system, network access and Microsoft Internet Explorer web browser version 6.0 or later Bosch Security Systems | 2006-05 | V2.0...

  • Page 13: Overview Of Functions

    • Computer with Windows 2000/XP operating system, network access and reception software, for example VIDOS or DIBOS 8.0 • MPEG-4 compatible hardware decoder from Bosch Security Systems (such as VIP XD) as a receiver and a connected video monitor The minimum PC requirements are: •...

  • Page 14: Wide Dynamic Range

    Multicast In suitably configured networks, the multicast function enables simultaneous, real time transmission to multiple receivers. The prerequisite for this is that the UDP and IGMP V2 protocols are implemented on the network. Bosch Security Systems | 2006-05 | V2.0...

  • Page 15: Configuration

    Clicking this icon stores the video sequences and they can be replayed with the MPEG viewer from Bosch Security Systems included with the package. Bosch Security Systems | 2006-05 | V2.0...

  • Page 16: Connections

    • use a shielded UTP Category 5 cable with RJ45 connectors. AL AR M • Power can be supplied to the camera via the Ethernet cable compliant with the Power-over- ET H Ethernet (IEEE 802.3af) standard. UTP Cat 5 RJ45 Bosch Security Systems | 2006-05 | V2.0...

  • Page 17: Video Service Monitor

    C-mount lenses can be mounted using the lens adapter ring. DC-iris lenses are recommended for the best picture performance. The camera automatically detects the type of lens used and optimizes performance accordingly. A spare male lens connector is provided. Bosch Security Systems | 2006-05 | V2.0...

  • Page 18: Mounting The Camera

    Mounting the camera The camera can be mounted from the top or bottom. The bottom mounting is isolated from ground. With outdoor scenes, a DC-iris lens is recommended. Bosch Security Systems | 2006-05 | V2.0...
  • Page 19 Do not obstruct the free flow of air around the camera. Note The camera becomes quite warm when operating; this is normal. However, you should take this into account when touching the camera. Bosch Security Systems | 2006-05 | V2.0...

  • Page 20: Quick Set-Up

    To adjust back focus: 1. Open the slide door at the side of the camera 2. Unlock the back focus locking button. 3. Turn the back focus adjustment as required. Bosch Security Systems | 2006-05 | V2.0...

  • Page 21: Accessing And Navigating Quick Set-Up Menu

    • Press the menu/select key to access the menus or to move to the next or previous menu. • Press the menu/select key for approximately 1.5 seconds to open the Installer menu. • Use the up or down keys to scroll up or down through a menu. Bosch Security Systems | 2006-05 | V2.0...

  • Page 22: Install Menu

    2. Access the Lens Wizard menu. 3. Set Back Focus Now is highlighted in the menu. 4. Turn the back focus adjustment as required. 5. Lock the back focus locking button. 6. Exit the menu. Bosch Security Systems | 2006-05 | V2.0...

  • Page 23: Install Ip Address Submenu

    RIGHT to change position in the address, use UP/ DOWN to select the digit. Use SELECT to exit the address edit screen. Subnet Mask Enter the Subnet mask (default 255.255.255.0) Gateway Enter a Gateway address. Exit Return to the Install menu Bosch Security Systems | 2006-05 | V2.0...

  • Page 24: Defaults

    Restoring the factory defaults may result in the loss of the IP connection. If this occurs, change the IP address of your browser to the factory default value. Only restore the factory defaults when it is absolutely necessary. Bosch Security Systems | 2006-05 | V2.0...

  • Page 25: Dinion Ip | Installation Manual En

    The camera must be assigned a valid IP address to operate on your network. The default address pre-set at the factory is 192.168.0.1 – Start the Web browser. – Enter the IP address of the camera as the URL. Bosch Security Systems | 2006-05 | V2.0...
  • Page 26 Note If the connection is not established, the maximum number of possible connections may already have been reached. The maximum number of connections depends on the device and network configuration. Bosch Security Systems | 2006-05 | V2.0...

  • Page 27: Operation Via The Browser

    You can view the image on a full screen. – Click on one of the MPEG-4 Stream 1, MPEG-4 Stream 2 or M-JPEG tabs below the video image to switch between the different displays for the camera image. Bosch Security Systems | 2006-05 | V2.0...

  • Page 28: Digital I/O

    Recording video sequences Sections of the video sequence that is currently being shown on the Livepage can be saved on the computer's hard drive. The sequences are recorded at the Bosch Security Systems | 2006-05 | V2.0...

  • Page 29: Running Recording Program

    – Click the symbol for recording video sequences again. Saving is terminated. Installing MPEG viewer You can play back saved video sequences using the MPEG viewer from Bosch Security Systems, which can be found on the software CD supplied. Note A corresponding MPEG ActiveX (located on the CD provided with the product) must be installed on the computer in order to play back saved video sequences using the MPEG viewer.

  • Page 30: Selecting Recordings

    • Click a partition name from the list to display the recordings for this partition. • Click a list entry. The playback for the selected sequence starts immediately in the video window. Bosch Security Systems | 2006-05 | V2.0...

  • Page 31: Controlling Playback

    You can control playback by means of the buttons below the video image. The buttons have the following functions: Start playback Pause playback Jump to start of active video sequence or to previous sequence in the list Bosch Security Systems | 2006-05 | V2.0...
  • Page 32 • Right-click a bookmark to delete it. Note Bookmarks are only valid while you are in the Recordings page; they are not saved with the sequences. As soon as you leave the page all bookmarks are deleted. Bosch Security Systems | 2006-05 | V2.0...

  • Page 33: Configuration Via The Browser

    The configuration menu tree allows all parameters of the camera to be configured. The configuration menu is recommended for expert users or system administrators. All unit parameters can be accessed in this mode. Changes that Bosch Security Systems | 2006-05 | V2.0...
  • Page 34 The settings are changed by entering new values or by selecting a pre-defined value in a list field. Saving changes After making changes in a window, click the Set button to send the new settings to the unit and save them there. Bosch Security Systems | 2006-05 | V2.0...

  • Page 35: General Settings

    Enter a name that makes it as easy as possible to identify the location unambiguously. Camera ID Each camera should be assigned a unique identifier that can be entered here as an additional means of identification. Bosch Security Systems | 2006-05 | V2.0...

  • Page 36: Password Protection

    Service or if the unit is not protected by a password. Enter the password for the selected user name here. Confirm password Re-enter the new password to rule out typing mistakes. Bosch Security Systems | 2006-05 | V2.0...

  • Page 37: Language Selection

    This is added automatically. – Enter the current time or click Synchr. PC to apply the system time from your computer to the camera. Bosch Security Systems | 2006-05 | V2.0...

  • Page 38: Time Server

    This field sets the position of the camera name overlay. It can be displayed at the Top, at the Bottom or at a position of your choice using the Custom option. Or it can be set to Off if no overlay of this information is to be shown. Bosch Security Systems | 2006-05 | V2.0...

  • Page 39: Encoder Settings

    A red rectangle indicates that the sequence (live or saved) has been manipulated. Encoder Settings For encoding the video signal, you can select two profiles and change the presets for the profiles. Bosch Security Systems | 2006-05 | V2.0...

  • Page 40: Selecting An Encoder Profile

    • Profile 7: Modem For analog modem connections at 20 kBit/s, resolution 352 × 288/240 pixels • Profile 8: RAM recording Profile is linked to all RAM recordings, resolution 352 × 288/240 pixels Bosch Security Systems | 2006-05 | V2.0...

  • Page 41: Changing Profiles

    Note The profiles are rather complex. They include a number of parameters that interact with one another. Therefore it is generally best to use the default Bosch Security Systems | 2006-05 | V2.0...
  • Page 42 A value of 31 results in a very high refresh rate and lower image quality. Bosch Security Systems | 2006-05 | V2.0...
  • Page 43 352 × 576/480 pixels • 2CIF 704 × 288/240 pixels • 4CIF/D1 704 × 576/480 pixels • 2/3 D1 464 × 576/480 pixels Profile reset Click Default to return the profile to the factory default values. Bosch Security Systems | 2006-05 | V2.0...

  • Page 44: Jpeg Posting

    February 16, 2006 at 12.45 p.m. and 30 seconds. JPEG posting interval Enter the interval in seconds at which the images will be sent to an FTP server. Enter zero if you do not want any images to be sent. Bosch Security Systems | 2006-05 | V2.0...

  • Page 45: Camera Settings

    The numbering follows the labeling of the video inputs on the actual unit. Camera settings Note If the camera is in monochrome mode, all color related menu items are disabled and cannot be accessed. Bosch Security Systems | 2006-05 | V2.0...

  • Page 46: Alc

    – In FORCED mode, the camera remains in high-sensitivity monochrome operation. Note If NightSense™ is active, some noise or spots may appear in the picture. This is normal camera behavior. NightSense™ may cause some motion Bosch Security Systems | 2006-05 | V2.0...

  • Page 47: Enhance

    Autoblack ON automatically increases the visibility of details. Color White Balance – ATW: Auto tracking white balance allows the camera to constantly adjust for optimal color reproduction. – AWB HOLD: Puts the ATW on hold and saves the color settings. Bosch Security Systems | 2006-05 | V2.0...

  • Page 48: Installer Options

    Click the Restore all defaults button to restore the factory defaults. A confirmation screen appears. Allow 5 seconds for the camera to optimize the picture after a mode reset. Bosch Security Systems | 2006-05 | V2.0...

  • Page 49: Recording

    Caution If you switch the storage medium from iSCSI server to RAM recording, the settings on the page iSCSI settings will be lost and can only be restored by reconfiguring them. Storage information Bosch Security Systems | 2006-05 | V2.0...

  • Page 50: Iscsi Settings

    • Click the Close button to close the window. iSCSI settings If you select type iSCSI server as the storage medium, you then need to set up a connection to the desired iSCSI storage device and set the configuration parameters. Bosch Security Systems | 2006-05 | V2.0...

  • Page 51: Scan Iscsi Ip Address

    As soon as a connection has been established, the selected drive is used for recordings. Target IP address Enter the IP address of the required iSCSI server here. Target name Enter the name of the required drive. Bosch Security Systems | 2006-05 | V2.0...

  • Page 52: Target Lun

    • Confirm the decoupling of the current user. The drive is released and can be connected to the NWC-0495. Storage information The status of the currently selected storage medium and the data throughput are displayed here for information. You cannot change any of these settings. Bosch Security Systems | 2006-05 | V2.0...

  • Page 53: Partitioning

    A pie chart indicates how much memory space is partitioned for recordings. Creating a partition Caution Modifications to the size of partitions lead to the entire hard drive being reorganized and the loss of all sequences stored on the drive. Bosch Security Systems | 2006-05 | V2.0...
  • Page 54 • Click the <<Back button in the lower section of the window to view the previous step again. • Click the Cancel button to cancel the process and close the help. Bosch Security Systems | 2006-05 | V2.0...

  • Page 55: Saving Changes

    • Click Finish to complete the configuration. All settings are now transferred to the unit and subsequently become effective. Editing a partition You can modify the configuration of a partition at any time. Bosch Security Systems | 2006-05 | V2.0...

  • Page 56: Deleting Partitions

    0. • Click the Set button to transfer the changes to the unit and to save them. Bosch Security Systems | 2006-05 | V2.0...

  • Page 57: Recording Scheduler

    • Click the Start button to activate the currently selected partition for recording. • Click the Stop button to deactivate the currently selected partition for recording. Recordings that are currently running will be interrupted and the configuration can be modified. Bosch Security Systems | 2006-05 | V2.0...

  • Page 58: Continuous Recording

    • Click the Clear all button to delete all highlighted time intervals. Recording status The graphic indicates the recording activity in this partition. You will see an animated graphic while recording is taking place. Bosch Security Systems | 2006-05 | V2.0...

  • Page 59: Alarm Recording

    (pre- and post-alarm time). Bosch Security Systems | 2006-05 | V2.0...

  • Page 60: Properties

    Consequently, you should back up all important sequences on the computer's hard drive. Bosch Security Systems | 2006-05 | V2.0...
  • Page 61 If the option linear mode is selected, the recording is stopped as soon as the total number of alarm tracks has been recorded. Already Used alarm tracks are displayed in the graphic next to the parameter. Bosch Security Systems | 2006-05 | V2.0...
  • Page 62 You can delete all recordings in a partition at any time. Caution Check the recordings before deleting and back up important sequences on the computer's hard drive. • Click the Format! button to delete all recordings in the currently selected partition. Bosch Security Systems | 2006-05 | V2.0...

  • Page 63: Alarm Settings

    You can select the response of the camera in case of an alarm. In case of an alarm, the camera can automatically establish a connection to a predefined IP address (compatible MPEG-4 compatible hardware receiver or computer with reception Bosch Security Systems | 2006-05 | V2.0...
  • Page 64 Select On if an active connection should be re-established automatically to one of the previously specified IP addresses after each restart, connection breakdown or network failure. Note Stream 2 is always transmitted for automatic connections. This should be taken into account when assigning the profile. Bosch Security Systems | 2006-05 | V2.0...

  • Page 65: Video Content Analysis

    Depending on the Analysis type selected and the relevant configuration, additional information overlays the video image in the small window. If you have selected MOTION+ analysis, for example, the sensor fields will light up in which movement is registered. Bosch Security Systems | 2006-05 | V2.0...

  • Page 66: Analysis Type

    Note Additional analysis algorithms with comprehensive functions such as IVMD are available from Bosch Security Systems. Motion detector For the detector to function, the following conditions must be met: • Analysis must be activated.

  • Page 67: Tamper Detection

    Note The options for tamper detection can only be set for fixed cameras. Dome cameras or other motorized cameras cannot be protected in this manner as Bosch Security Systems | 2006-05 | V2.0...
  • Page 68 Activate this function if tampering associated with exposure to extreme light (for instance, shining a flashlight directly on the objective) should trigger an alarm. The average brightness of the scene provides a basis for recognition. Bosch Security Systems | 2006-05 | V2.0...
  • Page 69 • Click Select area to configure the sensor fields. A new window will open. • If necessary, click Clear all first to clear the current selection (fields marked red). • Left-click the fields to be activated. Activated fields are marked red. Bosch Security Systems | 2006-05 | V2.0...

  • Page 70: Alarm E-Mail

    Mail Transfer Protocol). Outgoing e-mails are sent to the mail server via the address you entered. Otherwise leave the box blank (0.0.0.0). Layout You can select the data format of the alarm message. Bosch Security Systems | 2006-05 | V2.0...

  • Page 71: Attach Jpeg From Camera

    Test the e-mail function by clicking the Send now button. An alarm e-mail is immediately created and sent. Relay Settings Here, you can make the settings for the alarm sources and alarm connections. Bosch Security Systems | 2006-05 | V2.0...

  • Page 72: Alarm Out

    Trigger relay. The Livepage can also be configured to display the name next to the relay icon. Trigger relay Click the button to switch the relay manually (for example for testing purposes or to operate a door opener). Service Settings Bosch Security Systems | 2006-05 | V2.0...

  • Page 73: Network

    IP address of the gateway here. Otherwise, this field can remain empty (0.0.0.0). HTTP browser port Select a different HTTP browser port from the list if required. The default HTTP port is 80. Bosch Security Systems | 2006-05 | V2.0...

  • Page 74: Multicasting

    In addition to a 1:1 connection between an encoder and a single receiver (unicast), the camera can enable multiple receivers to receive the video signal from an encoder simultaneously. This is either done by duplicating the data Bosch Security Systems | 2006-05 | V2.0...
  • Page 75 Port If there are simultaneous data streams at the same multicast address, you must assign different ports to each data stream. Enter the port address for the relevant stream here. Bosch Security Systems | 2006-05 | V2.0...

  • Page 76: Version Information

    The firmware version number of the camera is displayed. Livepage configuration In this window, you can adapt the appearance of the Livepage to meet your requirements. Options are provided here to display various information and Bosch Security Systems | 2006-05 | V2.0...
  • Page 77 Device logo URL fields. Show alarm input Alarm inputs are displayed next to the video image as icons along with their assigned names. If an alarm is active the corresponding icon changes color. Bosch Security Systems | 2006-05 | V2.0...
  • Page 78 Path for JPEG and MPEG files Enter the path for the storage location of individual images and video sequences that you can save from the Livepage. – If necessary, click Search to find a suitable folder. Bosch Security Systems | 2006-05 | V2.0...

  • Page 79: Licenses

    The latest firmware can be obtained from your customer service center or from the Bosch Security Systems download area. Caution Before starting the firmware update, make sure that you have selected the correct upload file! Uploading the wrong files can result in the unit no longer being addressable, requiring it to be replaced.
  • Page 80 – In the address bar of your browser, after the unit IP address enter /main.htm (for example 192.168.0.80/main.htm). – Repeat the upload. Configuration download You can save configuration data for the camera to a computer and load saved configuration data from a computer to the unit. Bosch Security Systems | 2006-05 | V2.0...

  • Page 81: Function Test

    • Can the camera be called remotely? • Does the camera transmit all the data required? • Does the camera respond as desired to alarm events? • Is it possible to control peripheral devices if necessary? Bosch Security Systems | 2006-05 | V2.0...

  • Page 82: Connections Between Video Servers

    With the appropriate configuration, a connection between a transmitter and a receiver is established automatically when an alarm is triggered. After a short time, the live video image from the transmitter is shown on the connected monitor. Bosch Security Systems | 2006-05 | V2.0...

  • Page 83: Connecting With A Web Browser

    – Use the Web browser to connect to the receiver. Its home page is displayed. In the title bar of the Monitor window on the page Connections, click on the X icon to end the display of the video images on the connected monitor. Bosch Security Systems | 2006-05 | V2.0...

  • Page 84: Operation With Decoder Software

    There are many options available for operation and configuration operation when using a camera with VIDOS. Refer to the software documentation for more details. The camera is also designed to operate with the DIBOS 8.0 digital recorder platform. Bosch Security Systems | 2006-05 | V2.0...

  • Page 85: Maintenance

    Defective or superfluous devices and parts should be disposed of professionally or taken to your local collection point for hazardous materials. Bosch Security Systems | 2006-05 | V2.0...

  • Page 86: Troubleshooting

    Troubleshooting If you cannot resolve a fault, please contact your supplier or system integrator or go direct to Bosch Security Systems Customer Service. The version numbers of the internal processors can be viewed on a special page. Please note this information before contacting Customer Service.
  • Page 87 Service and replace if necessary. firmware upload. file. Incorrect update file. Enter the IP address followed by / main.htm in your web browser and repeat the upload. Bosch Security Systems | 2006-05 | V2.0...

  • Page 88: Specifications

    0° to 40° C (32° to 104° F) temperature Controls OSD with softkey operation LAN interface 1 × Ethernet 10/100 Base-T, automatic adaptation, half/full duplex, RJ-45 Video encoding MPEG-4, JPEG protocols Video data rate 9,600 KBit/s ... 10 MBit/s Bosch Security Systems | 2006-05 | V2.0...

  • Page 89: Dimensions

    1 ... 50/60 fields/s adjustable (PAL/NTSC) Field/image-based coding Network protocols TCP, UDP, IP, HTTP, IGMP V2, ICMP, ARP Dimensions (4.646") (3.346") (1.339") 1/4"-20 UNC 1/4"-20 UNC (1.889") (4.843") (2.638") Dimensions in mm (inches). Bosch Security Systems | 2006-05 | V2.0...

  • Page 90: Accessories

    1/3-inch, 3.0 - 8 mm, DC-iris, CS-mount F/1.0-360, 4-pin Power transformers • TC 120PS Power Supply Unit – 110-120 VAC/15 VDC, 50/60 Hz, 300mA • TC 220PS Power Supply Unit – 230 VAC/15 VDC, 50 Hz, 10 VA Bosch Security Systems | 2006-05 | V2.0...
