Quick Start Guide
1

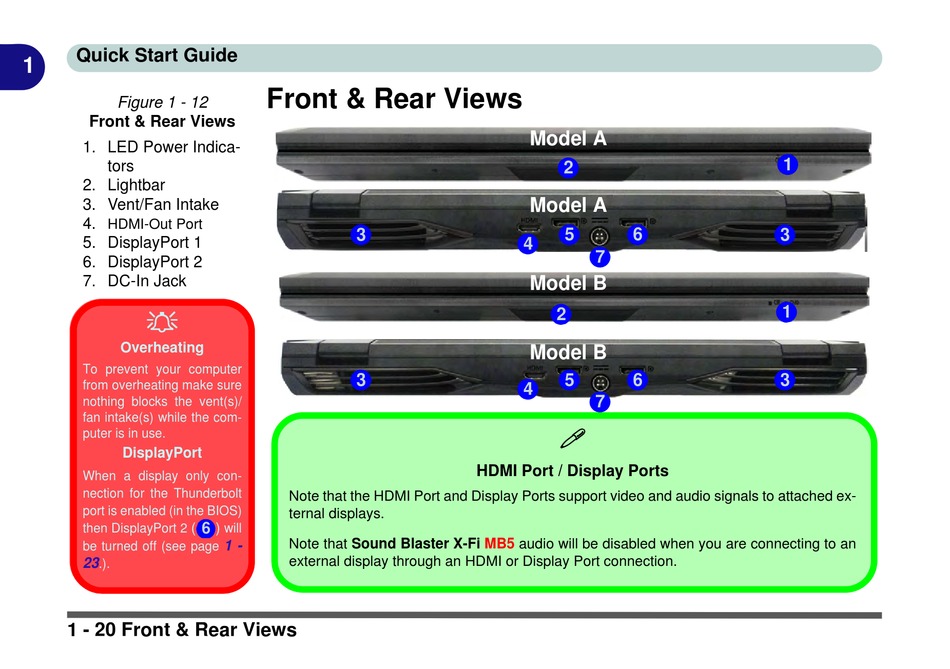

Figure 1 - 12
Front & Rear Views
1. LED Power Indica-
tors
2. Lightbar
3. Vent/Fan Intake
4.
HDMI-Out Port
5. DisplayPort 1
6. DisplayPort 2
7. DC-In Jack

Overheating
To prevent your computer
from overheating make sure
nothing blocks the vent(s)/
fan intake(s) while the com-
puter is in use.
DisplayPort
When a display only con-
nection for the Thunderbolt
port is enabled (in the BIOS)
( 6
then DisplayPort 2
be turned off (see page
23
.).
1 - 20 Front & Rear Views
Front & Rear Views
3
3
Note that the HDMI Port and Display Ports support video and audio signals to attached ex-
ternal displays.
)
will
Note that Sound Blaster X-Fi
1 -
external display through an HDMI or Display Port connection.
Model A
2
Model A
5 6
4
7
Model B
2
Model B
5 6
4
7

HDMI Port / Display Ports
MB5 audio will be disabled when you are connecting to an
1
3
1
3
