Component Descriptions

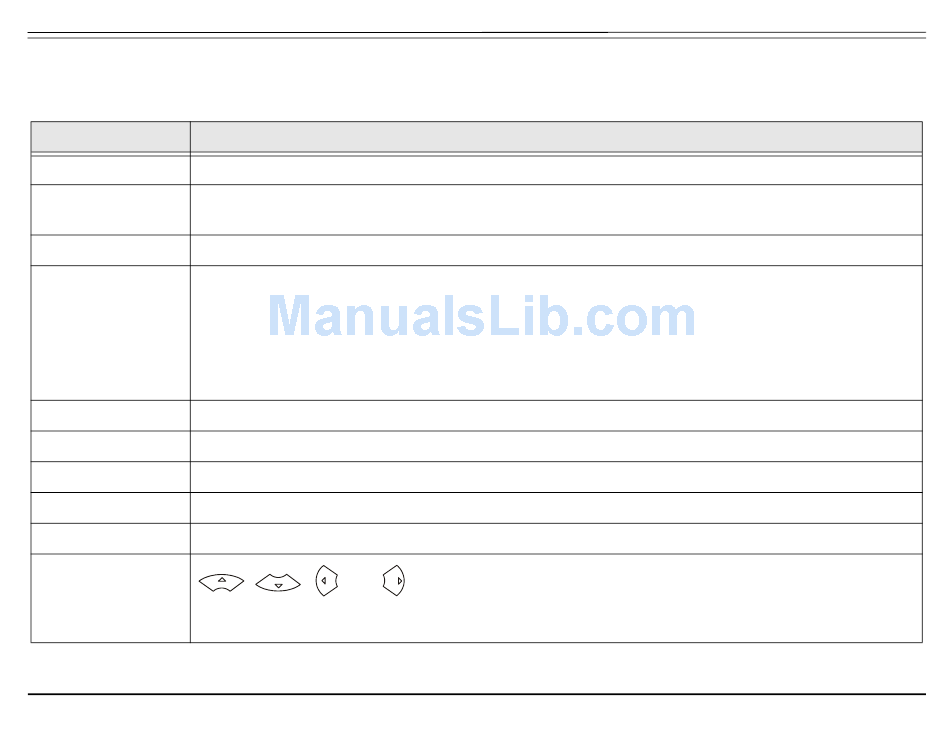

The following table defines controls, buttons and keys found on the T207M, T208M, T207M/NP, and T208M/BL.
Component
Dial Pad (Key Pad) Digit keys used for dialing phone numbers or extension numbers.
Fixed Function Nine keys for basic features: MSG, CONF, DIR, HEADSET, XFER, REDIAL, HOLD, MUTE, SPKR
Keys (see
Fixed key OK (see
Graphic Display Displays pertinent calling/menu/line information, based on the phone status (e.g., idle, busy,
dialing...).
T207M and 207M/NP display size: three lines (128x32 pixels): System lines (1st and 2nd lines), and
function options (on 3rd line) according to phone status. See
T208M and T208M/BL display size: six lines (128x64 pixels): System lines (1st, 2nd, 3rd, 4th and 5th
lines), and function options (on 6th line) according to phone status. See
Handset Works as typical phone handset.
Handset Latch Used to catch the handset when wall mounted or for elevated (60° or higher) desktop mounts.
Hook Switch On-hook or off-hook for handset.
Loudspeaker Output sound device used in hands-free operation, paging and ringing.
Microphone Input sound device used in hands-free operation.
Navigator Keys
the display. Used for selecting without choosing or activating the option. See
Navigator Keys on page
Phone Overview
Component Descriptions
page 20).
Using the Fixed and Navigator Keys on page
and
17.
Description
17).
Up/down, right/left arrows used to move from one option to another on
11 T200M Series User Guide (Coral Sea Softswitch)
page 16.
page 16.
Using the Fixed and
