Paper Deck Removal Procedures

External Covers

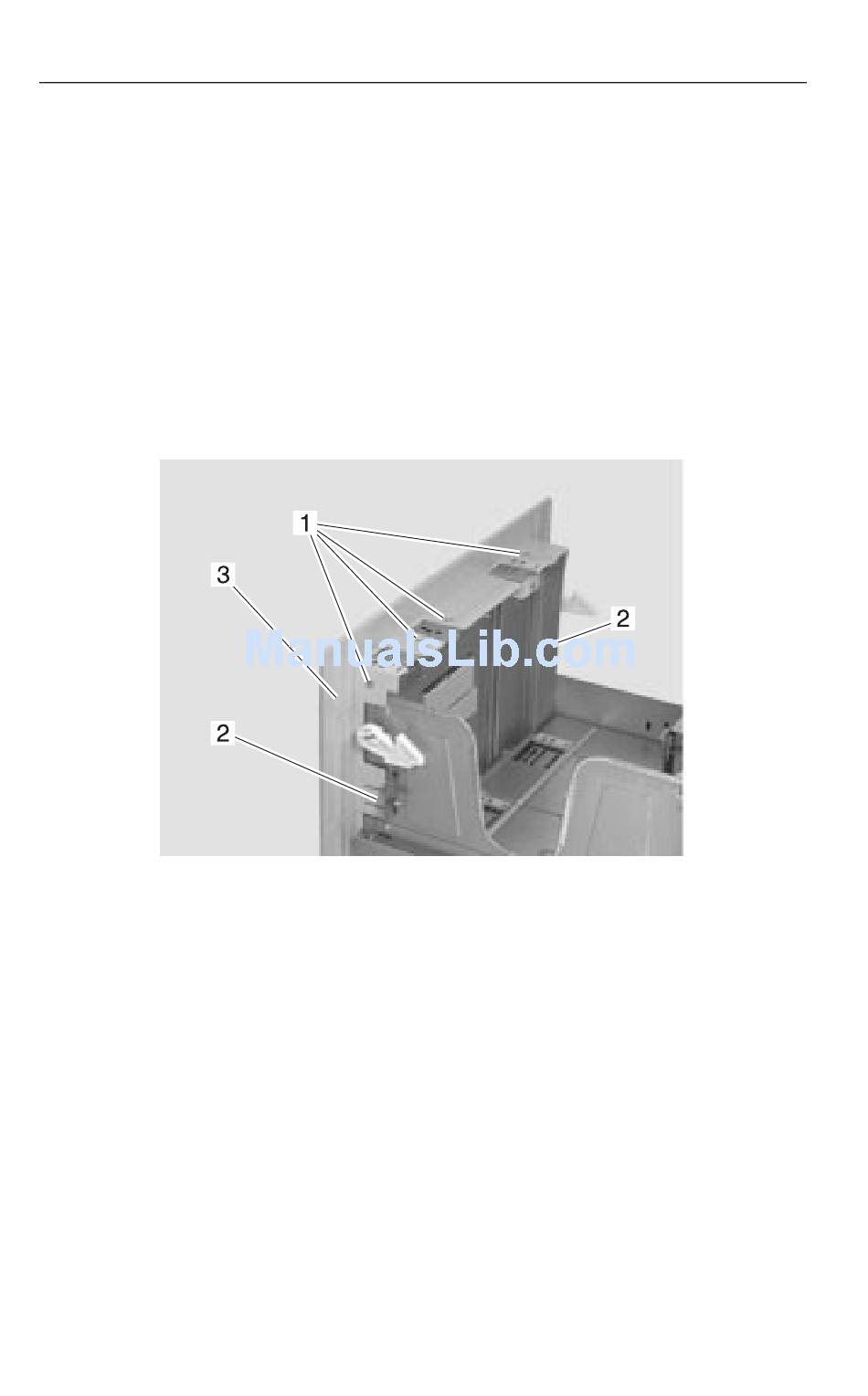

Front Cover Removal

1. Pull out the tray.
2. Remove the paper guide.
3. Remove the 4 screws (1), undo the left and right latches (2),
and take off the front cover (3).

Left Cover Removal

1. Remove the 2 screws (1).
2. Remove the latch (2) and take off the left cover (3).
4-89
