5. Remove the fuser roller heater.
6. Remove the thermoswitch.
7. Remove the thermistor.

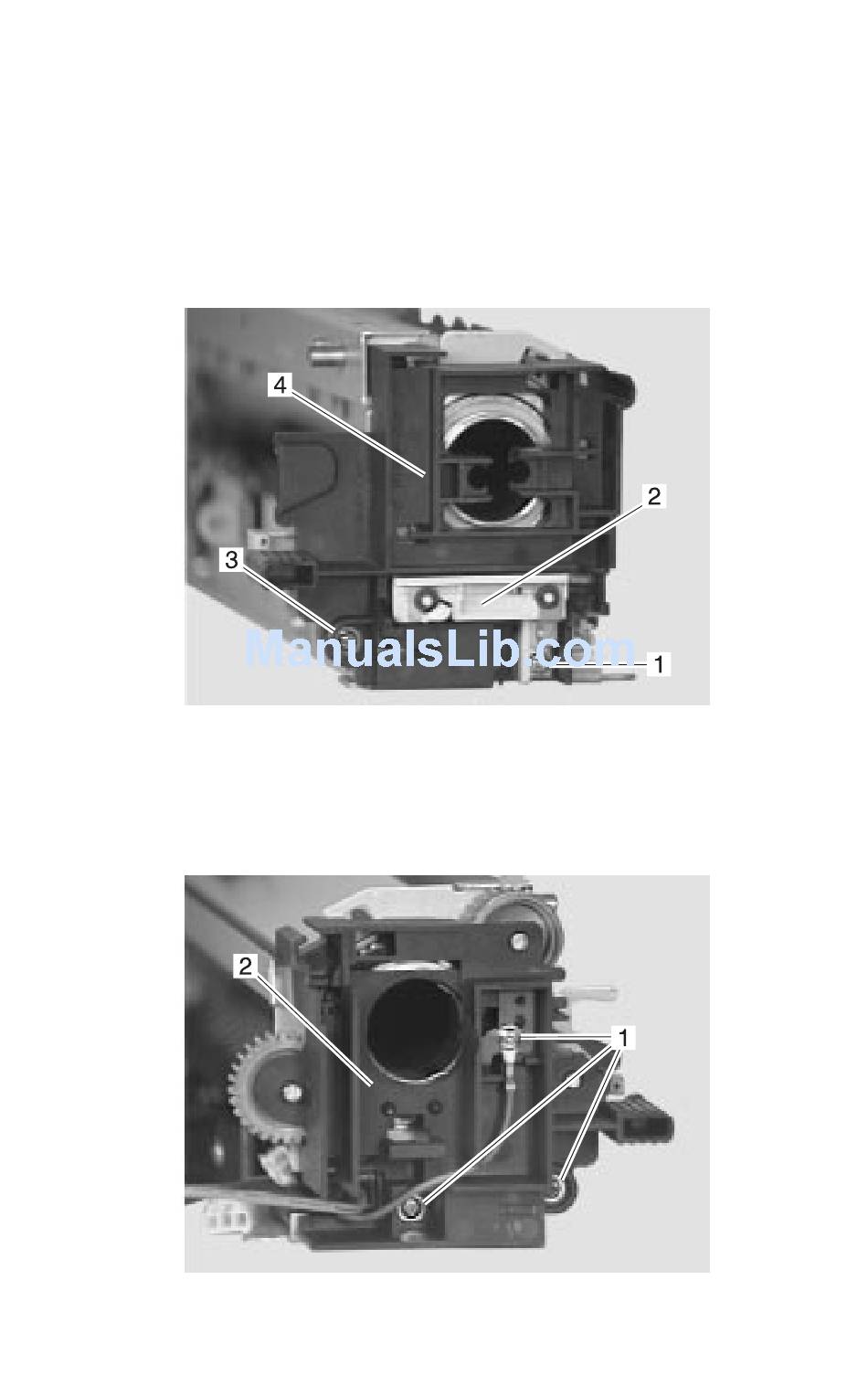

8. Remove the screw (1) and diode holder (2).
9. Remove the screw (3) and the fuser right cover (4).
10. Remove the 3 screws (1) and the fuser left cover (2).
11. Remove the 4 gears.
Repair Information 4-52
