System Menu

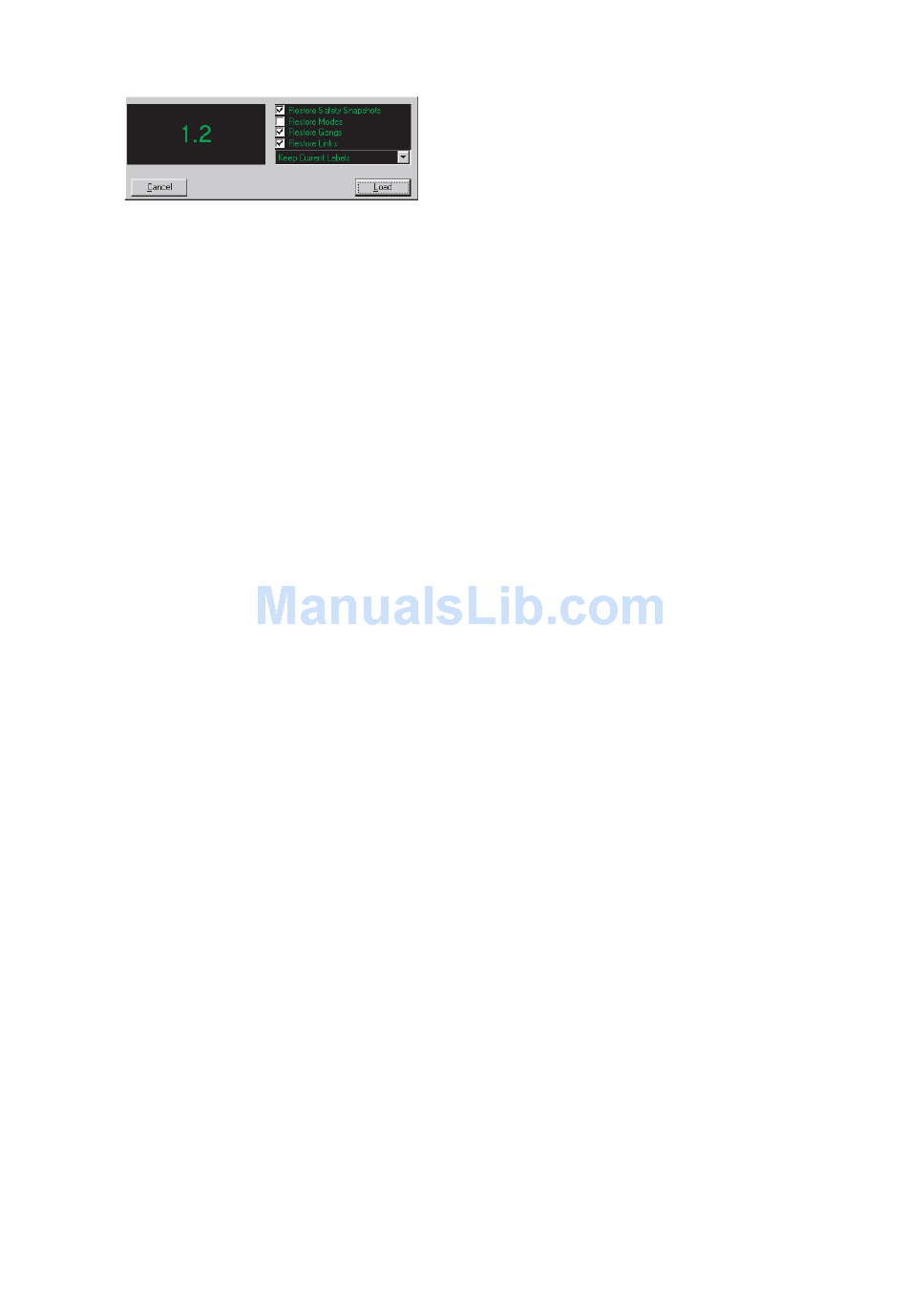

Click the Load Revision button. The Restoring Modes dialogue box will be displayed.
Click the check boxes as required. Safety Snapshots loads the pre-automation control settings that were stored
with the Mix and modes will reset the Automation Modes of controls to those that were kept in the Mix being
loaded. Click on OK.
Configuration Filing
There are five types of configuration file used by Encore:
Desk Setups
This contains the number of type of path and thereby dictates the type of task that Logic MMC will be used for.
The Desk Setup contains all the information relating to the configuration of each path, including the processing
allocated, the order of processing, the settings for each processing element at the time the Desk Setup was
saved, path names, routing to and from other paths, input and/or output routing (patching) and the assignment
of paths to the console surface. The main utility for changing the base Desk Setup is Desk Edit.
IO Configuration
This contains the configuration of the input and output ports that are available to the system, including port
names, mono/stereo port types, SRC configuration, delay available on a port, dither on a port and if a relay is
associated with a port. The main utility for changing the IO Configuration is IO Config.
GPI
This is the GPI (General Purpose Interface) file which contains the configuration of the relays and opto-isolators.
The utility for changing the GPI configuration is IO Config.
Snapshots
Snapshots are used to save control settings that can be recalled at a later time. A Snapshots file can contain any
number of Snapshots. If Snapshots are recalled when a Mix/Pass is being made then the values will be written to
controls that are in Record. The contents of a Snapshots file can be managed using the Snapshot utility.
User Defaults
The User Defaults are used to change the values that controls have by default (i.e. line-up settings). A file of User
Defaults is changed using the Defaults Manager.
AES
This contains any user settings for any AES digital boxes that may be connected to the system. The contents of
this file are managed using the 'AES Config' utility on the Tools menu.
Currently Loaded File
Above the selection box for each file type is a black rectangle. This shows the currently loaded file. This can be
blank for I/O Configurations, Snapshots and User Defaults, indicating that no file of the relevant type is
currently loaded.
To select a Desk Setup to work with click the Show All Desk Setups check box and click the required file name in
the Desk Setup list. The red rectangle will highlight the Desk Setup list. The filing buttons will now operate on the
selected Desk Setup.
If the Desk Setup is not Loaded, but the Edit button is used to launch Desk Edit, the file will be Loaded when it is
saved in the Desk Edit.
