AMS Neve Logic MMC User Manual page 19

The Logic MMC Console
Master Automation
MASTER
KEEP
TOUCH
MIX
ISOLATE
AUTO
COLLECT
RUN
TOUCH

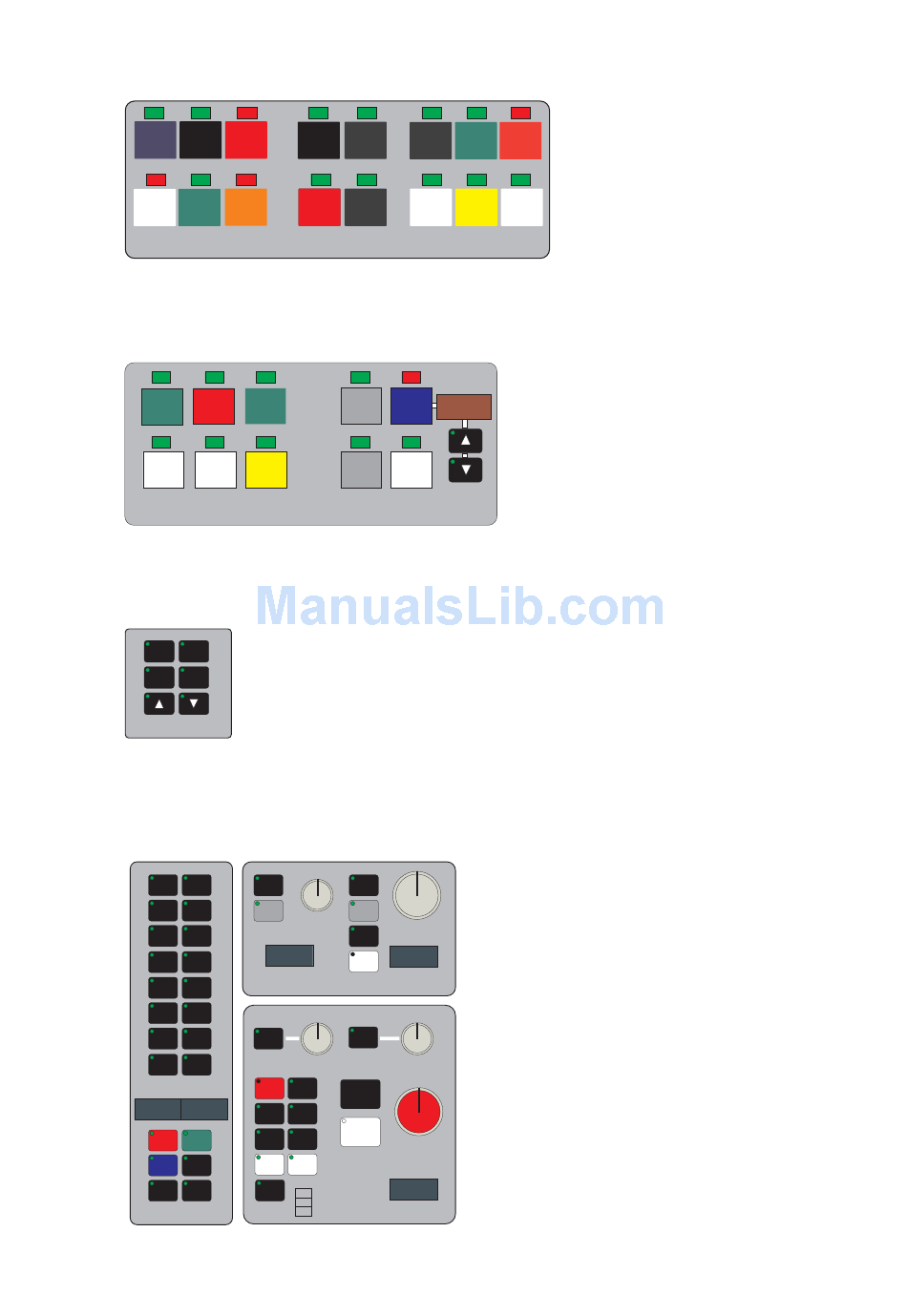

The Master Automation keys are used for global control of dynamic automation modes.
Faders Global Control
B
A
SUB SUB
A B
FADERS GLOBAL CONTROL
Provides users with simultaneous global control of all channel strips.
Tone
ON/
SELECT
OFF
TO TO
MTRK MAIN
TONE
The Tone panel is used to activate the tone generator. Output can be routed to Main, Tracks or via the monitor
Select panel.
Monitoring
15 16
13 14
11 12
9 10
7 8
5 6
3 4
1 2
SELECT*
MAIN GRP
AUX CUE
PFL EXT
Monitoring is controlled by three panels for Control Room, Headphones and Studio LS and Speaker Select.
