Tools Menu

AES Config

On bootup, the desk will reload the last used Setup file, and display it's name in the title bar.
When the AES960 racks are placed under Console control AES I/O pairs 28 are used to pass control data to
and from the console and as such are not available audio channels.

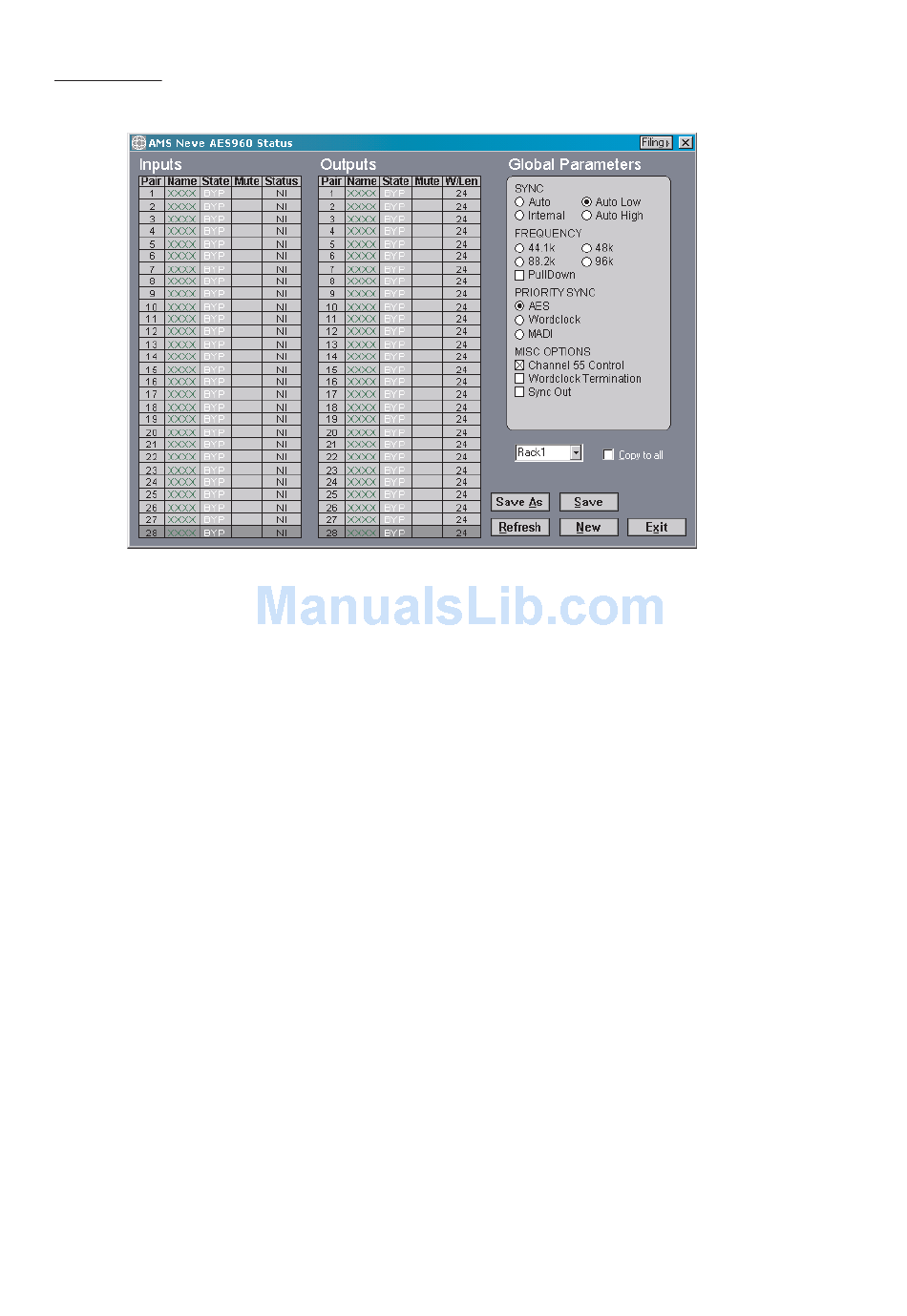

The individual W/Len Mute & State windows are active with the mouse cursor over that window. Its parameter
can be changed by use of the left or right mouse buttons.
In the case of W/Len the options are 24, 20dt or 16dt the latter 2 having triangular dither applied. For Mute it's a
simple Mute On/Off, for State Input the options are BYPass, SRC or AUTO, for State Output the options are
BYPass, INT44, INT48, INT88, INT96 or Blok (A..G).
In addition for the INTxx options pressing and holding down the mouse button toggles the pull down p flag
on/off.
There is a Global Parameter selection area, which selects MASTER Sync and Misc Options.
A selector box to select each rack in turn and a "Copy to all" tick box are placed immediately underneath. The
"Copy to all" option, if enabled, will change all the parameters in similar boxes. This is useful for initial setup, but
can equally lose a carefully arranged configuration, if this option is ticked a BIG warning message appears
before any change is made.
The Refresh button is a useful diagnostic tool as it collects and displays the status of the currently selected rack,
this is carried out on opening the page, selecting a different rack and on pressing the REFRESH key. This task
takes a few seconds to load.
The Exit button is self-explanatory.
The Save and Load keys on the front panel allow the saving and loading of up to 4 presets and in addition the
current settings are associated with the console's Mix Setup.
The AES960 page is accessed via the I/O Config page from the Tools option in Encore.
