Optional Joystick Module

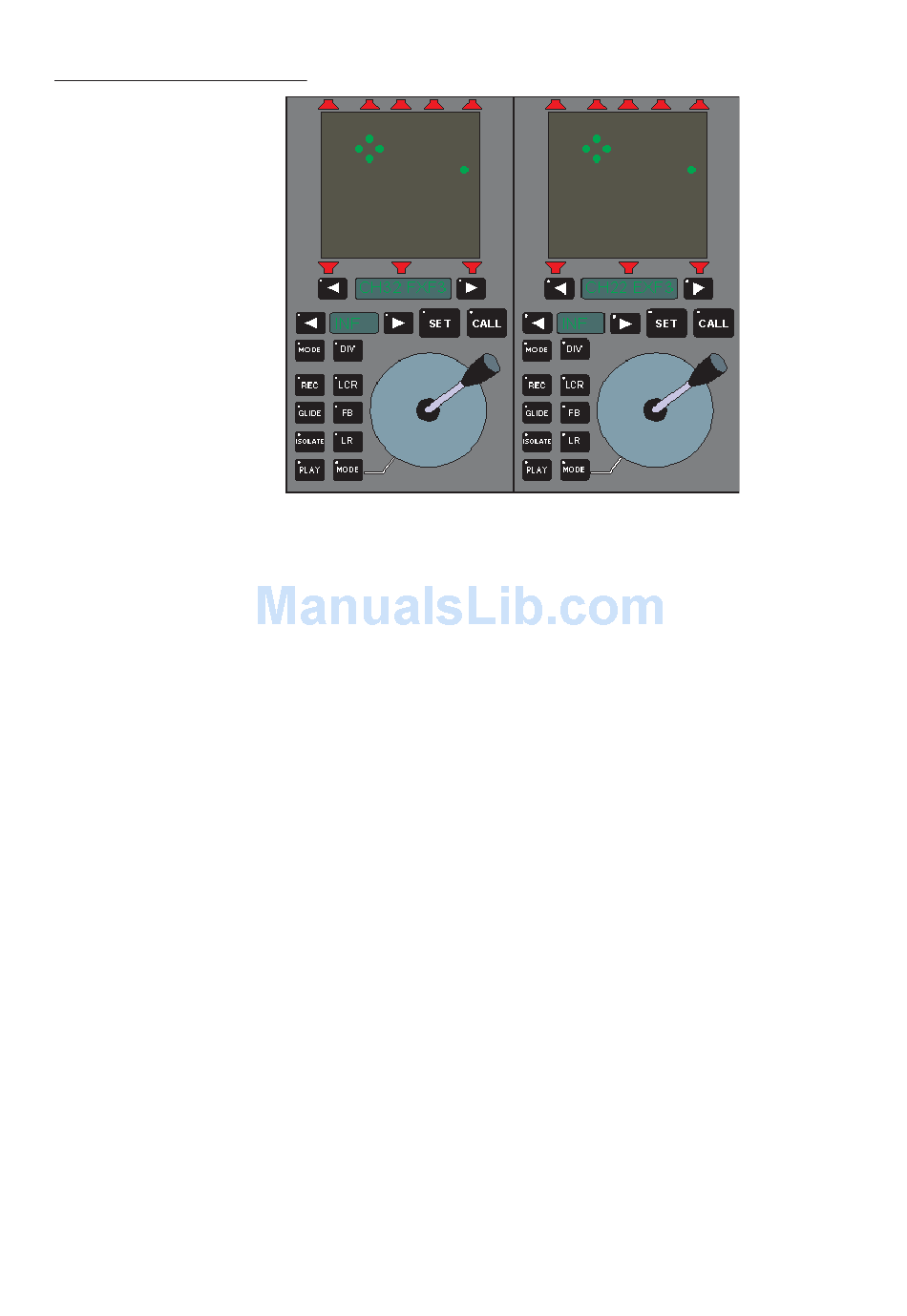

The optional twin Joystick module is used to pan up to two signals across surround destinations.
The module uses 'PanPos' displays to show the position of the joystick as a dot and the panned position of the
signal as a diamond.
When a Channel is 'called' to the module, other panning controls on that Channel are locked out.
The module also has automation mode controls for the panners.
