Fader Assignment

Fader Assignment
Logic MMC makes economical use of the fader strips by having up to four paths each across 6 banks assigned
to each fader strip. The paths assigned to each layer are initially determined with Desk Designer in Desk Edit.
The paths that are currently active on the faders are said to be "on the surface".

Layer Selection on The Fader Strips

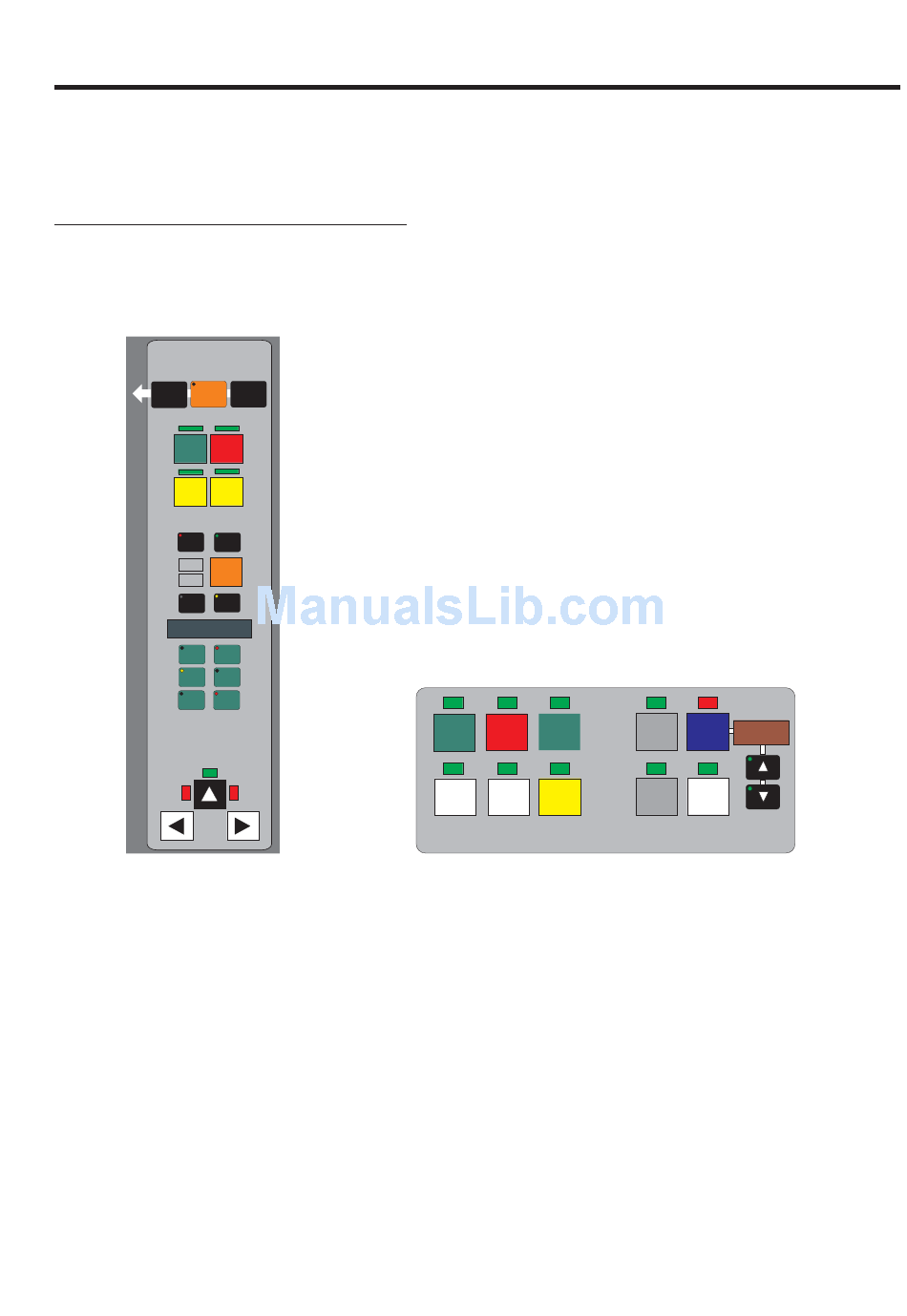

The required bank is selected using the bank keys on the Master Panel and the required layer within that bank is
selected using the A, B, SUB A or SUB B global layer selection keys. By default, selecting a bank will bring up
layer A to the surface. It is also possible to scroll through the banks, using the left and right arrow keys under the
Bank Select keys.
UPPER KNOB
ASSIGN
2ND
ASSIGN
CHAN
A B
SUB
SUB
B
A
A
FLIP
B
5 6
3 4
1 2
BANKS
To assign a particular layer to the assignable logicators, call the required bank to the surface, then use the
Logicator Layer Selection keys.
Setting up paths on to these layers within the banks can be done using two methods.
The first uses Encore. The required bank should be selected in Desk Designer, then the four layers within that
bank setup in the usual way. Another bank can be selected and the layers set up in the same the first bank was.
When the setup is complete, clicking on Save+Load will apply these changes.
The second method is to turbo the paths from the routing panel. First press the PATH EDITOR key on the Master
Panel. All the alphas will flash SETUP, and the console is then in setup mode. Select an access key above a fader
and while holding it, select a path from the routing panel. When this is finished, press the PATH EDIT key again.
The KEEP DESK key must be pressed for these changes to be stored with the desk setup.
