Routing
The red hashing will toggle between the rows of the selected path type each time a particular key is pressed
again. The LED in the key will illuminate green when the extra paths (25+) are selected.
To switch display styles press the TOGGLE DISPLAY key in the PATH TYPE SELECT area. Each time the key is
pressed, the display will toggle between all sources to show which Tracks, Mains and Groups the currently
selected sources are routed to.

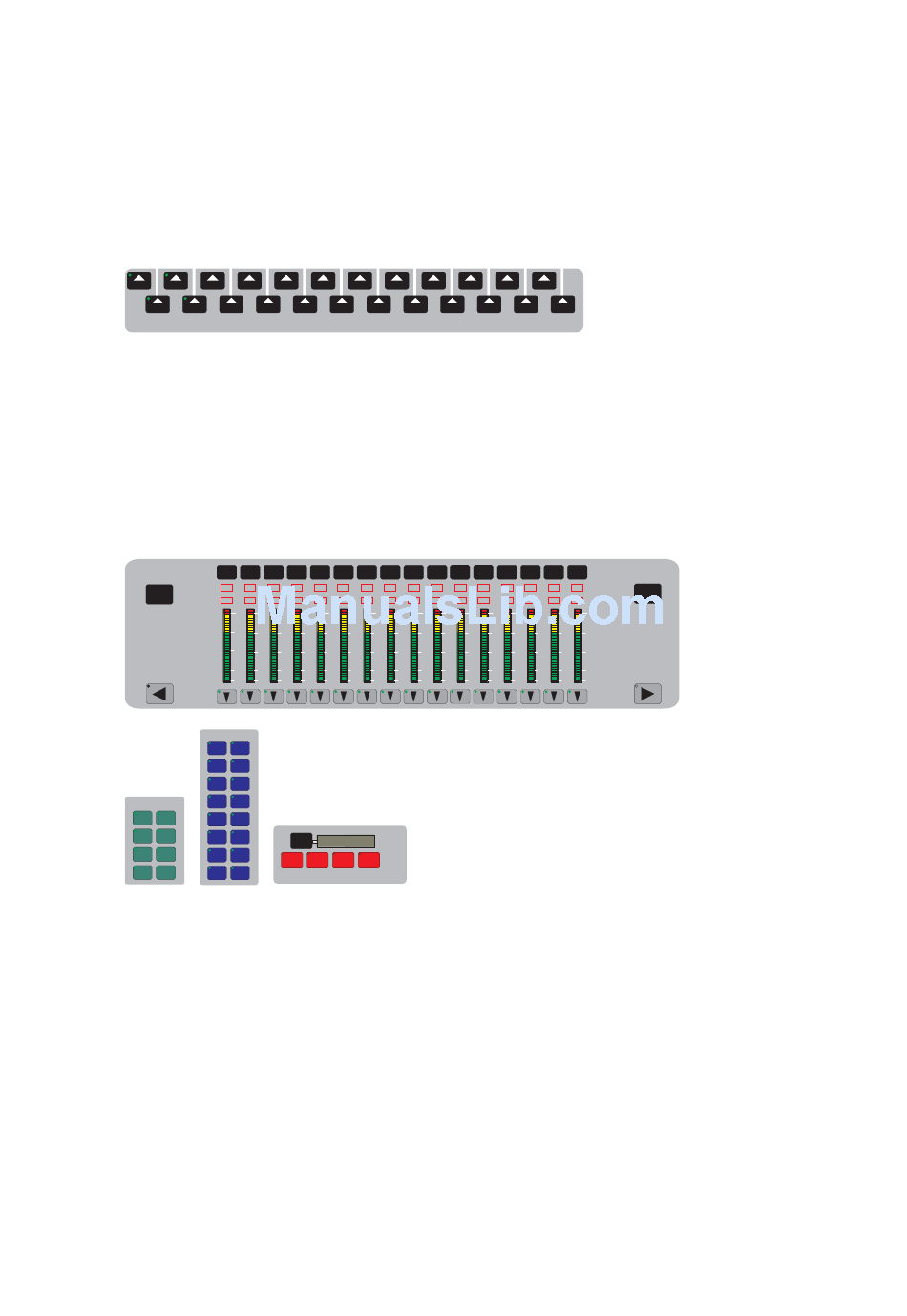

To route a selected source type to multiple destinations press and hold the required number key at the bottom of
the screen.
1 3 5
2 4
The corresponding fader symbol or path name/number box on the screen will appear depressed (i.e. pressed
in).
The LEDs in the keys for destinations that the path is already routed to will illuminated. This will also be shown on
the Routing Screen. The LEDs above ACCESS keys for destinations that the path is already routed to will
illuminate. The LEDs in valid destination keys will illuminate green.
Press the keys for the required Track destinations at the top of the screen, the numbered GROUP keys, the
numbered AUX keys or the numbered MAIN OUTPUTS keys.
REC
1
ALL
REC
17
AUX ROUTE
1
3
5
7
GROUP ROUTE
1 2
9
3 4
11
5 6
13
7 8 15
Multiple Tracks can be selected by "sweeping" across the keys at the top of the screen.
The integral LEDs will illuminate red and the display in the Routing Screen will be changed accordingly.
Each press of a destination key toggles routing to the destination on and off. Release the key for the source path.
To route a Group to multiple Tracks and/or Auxiliaries press and hold the number key for the required Group.
Press the keys at the top of the screen or the numbered AUX keys as required, then release the Group number
key.
To route multiple sources to Tracks press and hold the required Track destination key at the top of the screen.
Paths that are already routed to the Track will be shown on the screen, by red LEDs in source keys and by
illuminated LEDs above the ACCESS keys. Press the keys for the required sources at the bottom of the screen or
the numbered GROUP keys then release the destination key.
The Auxiliaries can only be selected as destinations, not as sources.
Issue 4
7 9 11 13 15
8
6 10 12 14
PATH ROUTE
REC REC REC REC REC REC REC
2 3 4 5 6 7 8
18 19 20 21 22 23 24
0 0 0 0 0 0 0
-10
-10 -10 -10 -10 -10 -10 -10
-20
-20 -20 -20 -20 -20 -20 -20
-40 -40 -40 -40 -40 -40 -40 -40
-60 -60 -60 -60 -60 -60 -60 -60
2
4
6
8
10
12
ASSIGN
14
1 2 3 4
16
MAIN OUTPUT ROUTE
17 19 21 23
16 18 20 22 24
REC REC REC REC REC REC REC REC
9 10 11 12 13 14 15 16
25 26 27 28 29 30 31
0 0 0 0 0 0 0 0
-10 -10 -10 -10 -10 -10 -10
-20 -20 -20 -20 -20 -20 -20
-40 -40 -40 -40 -40 -40 -40
-60 -60 -60 -60 -60 -60 -60
Path Routing with the Routing Screen
ALL
SAFE
32
0
-10
-20
-40
-60
