Optional Surround Sound Panel

Surround Monitoring

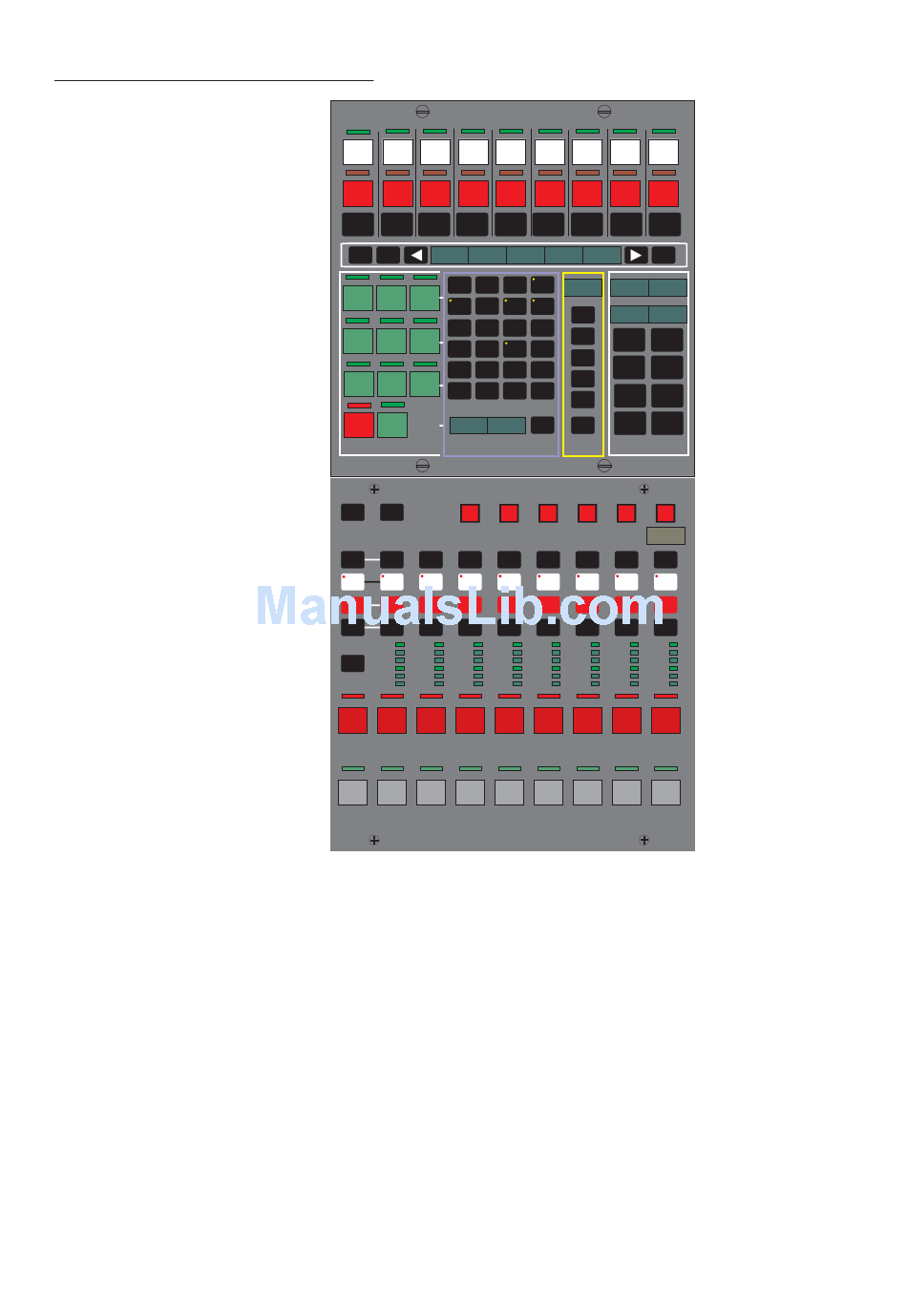

The top half of the Surround Sound Panel is used to select the monitoring sources, which can be any
combination of the six Film Stems and up to three machines with pre-mixed material.
There are various monitoring options, including encoder/decoder inserts, Academy filter and Solo and Cut of
individual speaker outputs.
Stem and Recorder Control
The bottom half of the Surround Sound Panel is used to configure the Film Stems and for controlling the Tracks
(busses) that are used by the Film Stems.
Recorder control is provided, for track arming and punch-in, and Bus/Tape switching is provided (i.e. as used
for PEC/Direct comparison). Tracks can also be made safe.
Controls can also be linked in groups so that, for instance, the master REC control can be used to arm multiple
Tracks with one key press.
