Routing

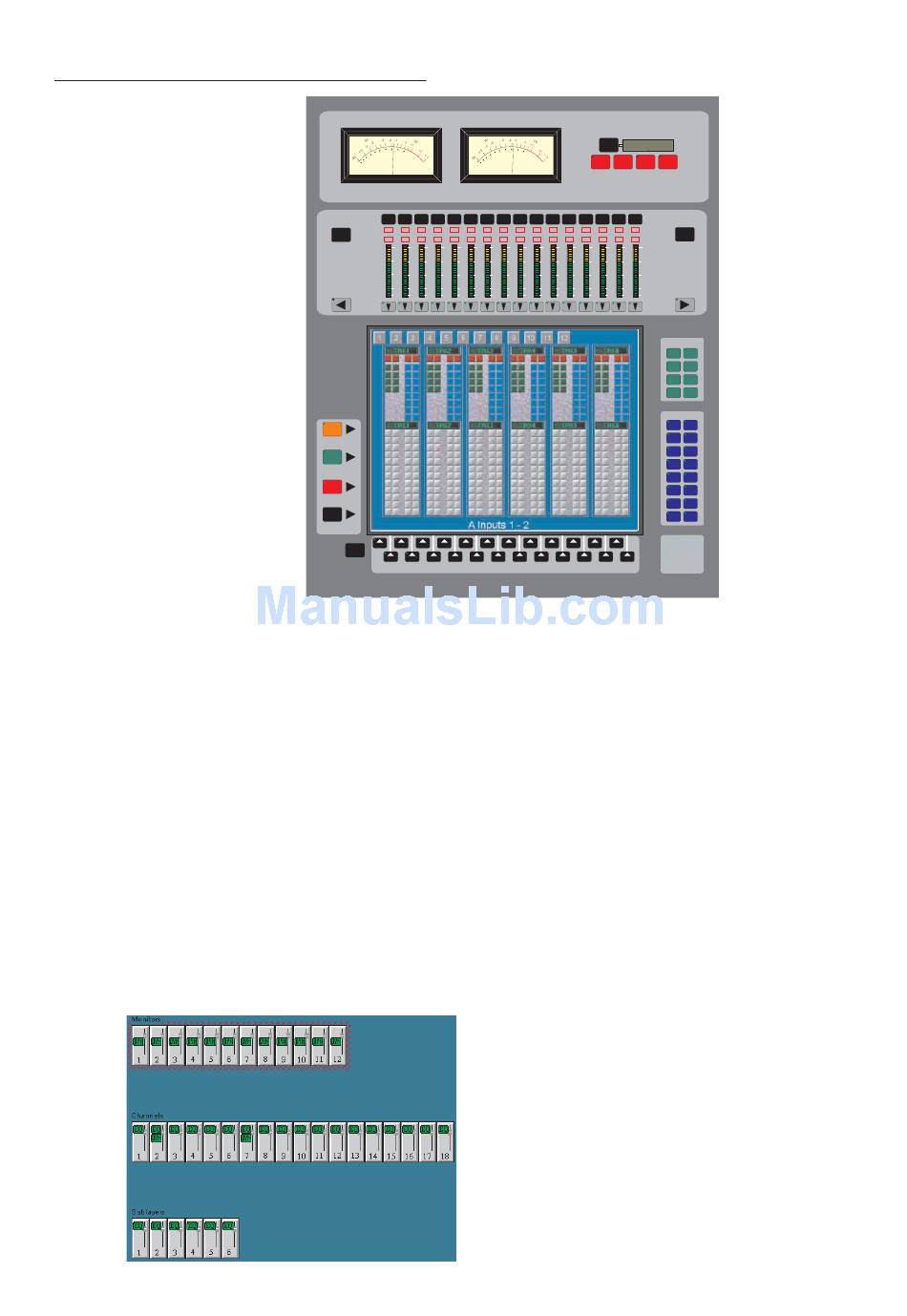

Path Routing with the Routing Screen

The Routing Screen is used for internal signal path routing and interrogating the current routing.
The keys on the left of the screen are for selecting the source path type. The numbered keys along the bottom of
the screen show how many of the sources are available when their integral LEDs are illuminated green. Valid
sources are Tracks and Channels.
The numbered keys at the top of the screen correspond to Tracks as destinations (routing to the Bus inputs). The
screen indicates which key is used for which Track. When the integral LED is green this indicates an available
destination. When a routing source key is held down then the LEDs will illuminate red for the destinations that
the source is routed to.
The GROUP and AUX keys to the right of the screen operate in a similar manner. The integral LEDs will always
be illuminated green to show how many Groups and Auxes are currently available. The Auxes can only be used
as destinations (i.e. to switch on the auxiliary contribution from the selected source to the selected aux).
The Routing Screen has three display styles:
The source display style shows all the Tracks and Channels that are sources, with red hatching around the
sources currently assigned to the keys at the bottom of the screen. The faders that represent individual paths will
also show which paths have EQ or Dynamics assigned to them.
Issue 4
ASSIGNABLE METERS
R22AF R22AF
LEFT
REC REC REC REC REC REC REC
1 2 3 4 5 6 7
ALL
REC
17 18 19 20 21 22 23
0 0 0 0 0 0
-10
-10 -10 -10 -10 -10 -10
-20
-20 -20 -20 -20 -20 -20
-40 -40 -40 -40 -40 -40 -40
-60 -60 -60 -60 -60 -60 -60
MON
CHAN A
CHAN B
PATH TYPE
SELECT
1 3 5 7 9 11
TOGGLE
DISPLAY
2 4 6 8 10
PATH ROUTE
Path Routing with the Routing Screen
ASSIGN
1 2 3
MAIN OUTPUT ROUTE
RIGHT
REC REC REC REC REC REC REC REC REC
8 9 10 11 12 13 14 15 16
24 25 26 27 28 29 30 31 32
0 0 0 0 0 0 0 0 0 0
-10 -10 -10 -10 -10 -10 -10 -10 -10
-20 -20 -20 -20 -20 -20 -20 -20 -20
-40 -40 -40 -40 -40 -40 -40 -40 -40
-60 -60 -60 -60 -60 -60 -60 -60 -60
GROUP ROUTE
AUX ROUTE
13 15 17 19 21 23
12 14 16 18 20 22 24
4
ALL
SAFE
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
ROUTING
PANEL
Page 7:3
