Routing
Route Mode
The ROUTE MODE key on the upper channel strip sets the automation mode of the selected stem. Press and
hold the key, then press the appropriate automation key on the lower panel above the appropriate fader to
change the mode.
Route Stem
The ROUTE STEM key on the upper channel strip routes the path to stems.
If the path is routed to all tracks in the stem, then first press will deroute everything.
If the path is routed to some of the tracks in the stem, first press will route to all tracks; second press will deroute
to all tracks.
If the path is routed to none of the tracks in a stem, first press will route to all tracks.

Interrogating I/O Routing

The input and output port routing (or patching) can be shown on the electronic scribbles on the Fader and
Master Fader Strips.
To show I/O routing (patching) press the SHOW PATCH key in the Faders Global Control Panel.
A B
SUB SUB
A B

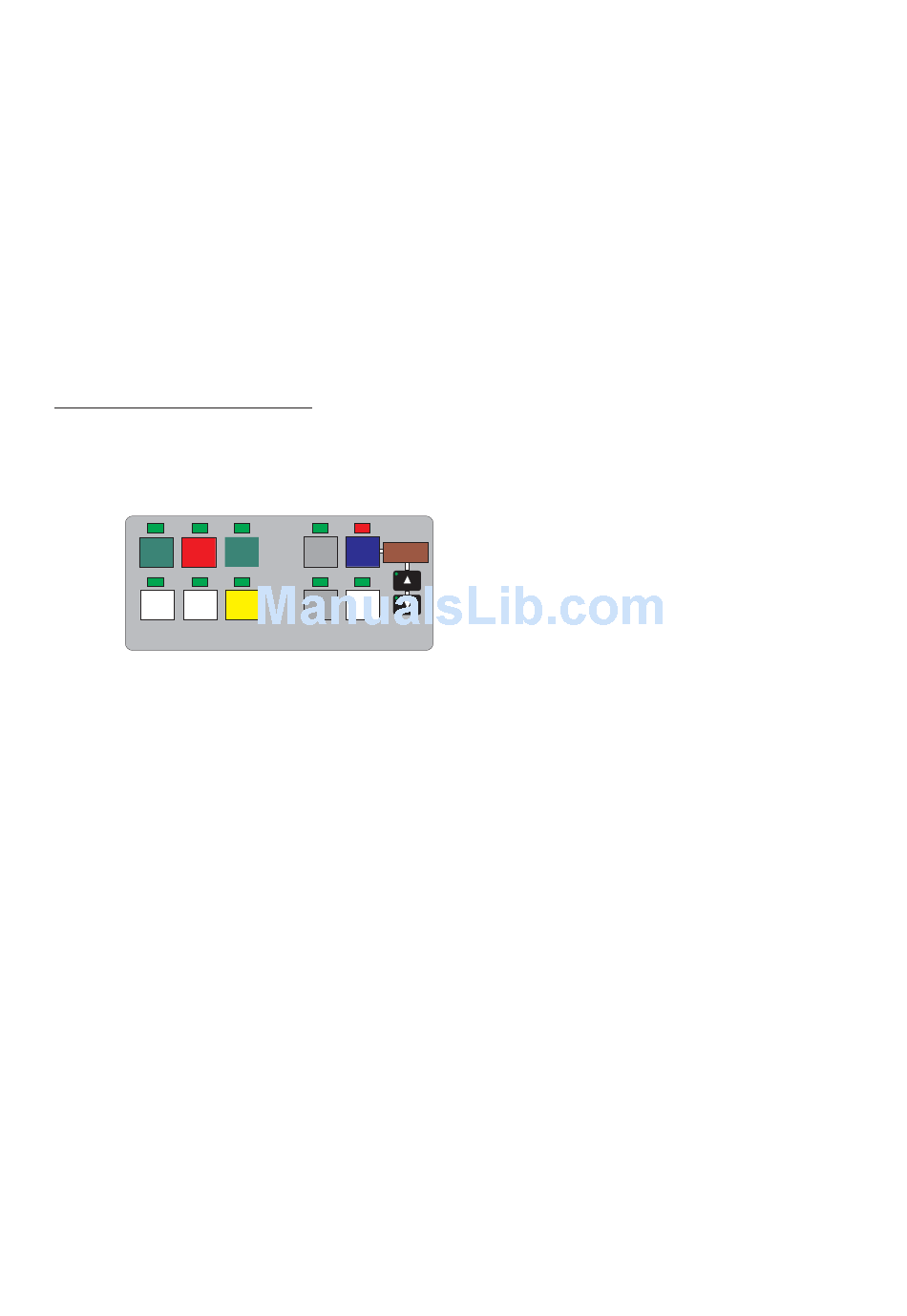

FADERS GLOBAL CONTROL
The LED above the key will flash. The electronic scribbles will show the system name of the inputs to the paths
assigned to the faders. Blank scribbles indicate no input port is routed (patched).
Press the SHOW PATCH key again. The electronic scribbles will show the system name of the outputs from the
paths assigned to the faders. Blank scribbles indicate no output port is routed (patched).
If a Main Output has more than one output, only the first will be shown.
Press the SHOW PATCH key again. The console will return to its normal state.
Note that the FLIP key on the fader strips, the Bank keys and the Layer Selection keys can be used while SHOW
PATCH is active to view the porting for the paths that they assign to the faders.
