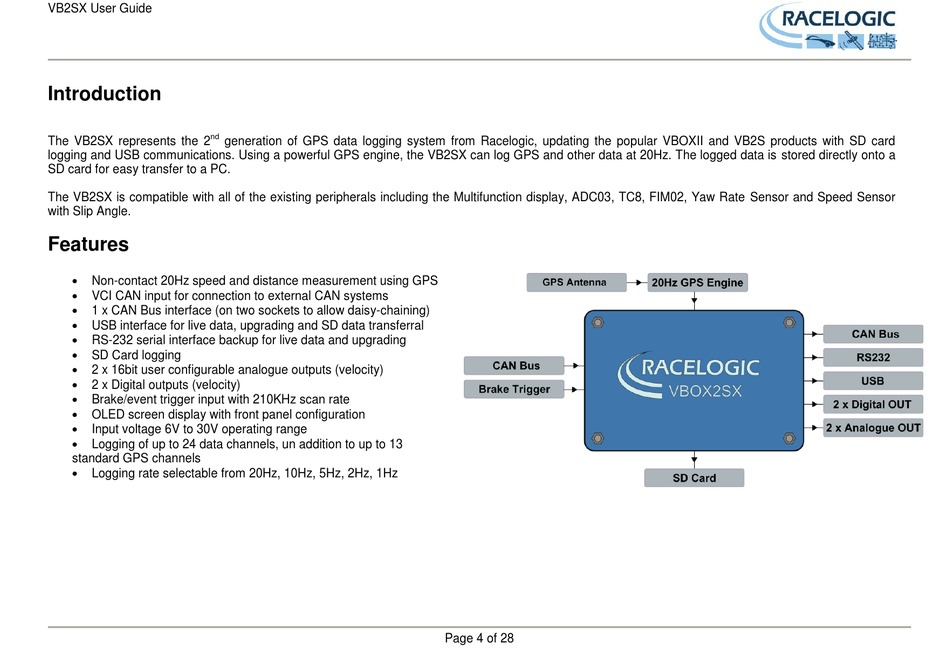

Introduction

nd
The VB2SX represents the 2 generation of GPS data logging system from Racelogic, updating the popular VBOXII and VB2S products with SD card
logging and USB communications. Using a powerful GPS engine, the VB2SX can log GPS and other data at 20Hz. The logged data is stored directly onto a
SD card for easy transfer to a PC.
The VB2SX is compatible with all of the existing peripherals including the Multifunction display, ADC03, TC8, FIM02, Yaw Rate Sensor and Speed Sensor
with Slip Angle.

Features


Non-contact 20Hz speed and distance measurement using GPS

VCI CAN input for connection to external CAN systems

1 x CAN Bus interface (on two sockets to allow daisy-chaining)

USB interface for live data, upgrading and SD data transferral

RS-232 serial interface backup for live data and upgrading

SD Card logging

2 x 16bit user configurable analogue outputs (velocity)

2 x Digital outputs (velocity)

Brake/event trigger input with 210KHz scan rate

OLED screen display with front panel configuration

Input voltage 6V to 30V operating range

Logging of up to 24 data channels, un addition to up to 13
standard GPS channels

Logging rate selectable from 20Hz, 10Hz, 5Hz, 2Hz, 1Hz
