VB2SX User Guide

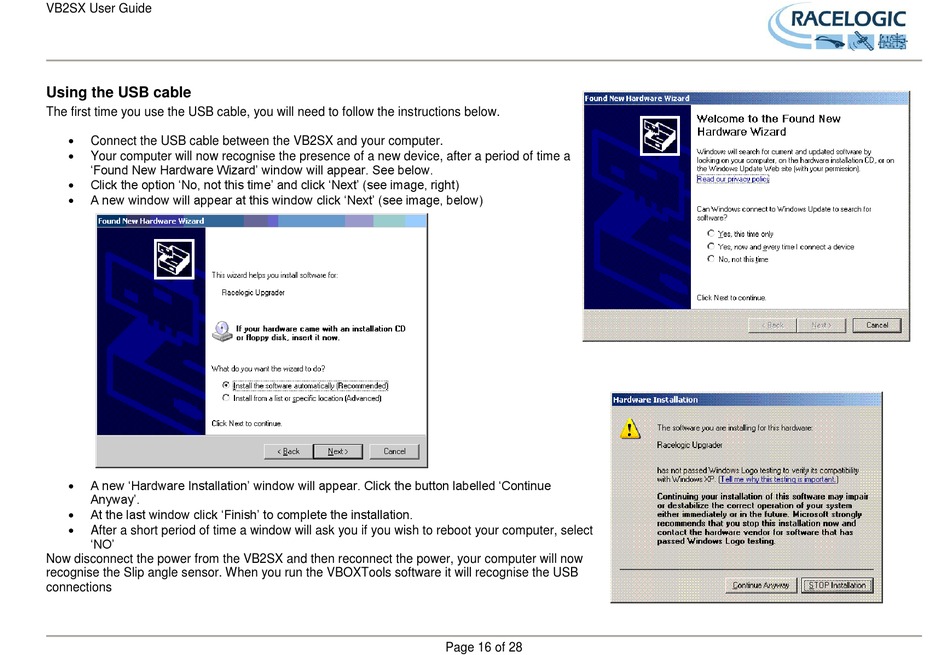

Using the USB cable
The first time you use the USB cable, you will need to follow the instructions below.

Connect the USB cable between the VB2SX and your computer.

Your computer will now recognise the presence of a new device, after a period of time a
'Found New Hardware Wizard' window will appear. See below.

Click the option 'No, not this time' and click 'Next' (see image, right)

A new window will appear at this window click 'Next' (see image, below)

A new 'Hardware Installation' window will appear. Click the button labelled 'Continue
Anyway'.

At the last window click 'Finish' to complete the installation.

After a short period of time a window will ask you if you wish to reboot your computer, select
'NO'
Now disconnect the power from the VB2SX and then reconnect the power, your computer will now
recognise the Slip angle sensor. When you run the VBOXTools software it will recognise the USB
connections
Page 16 of 28
