VB2SX User Guide

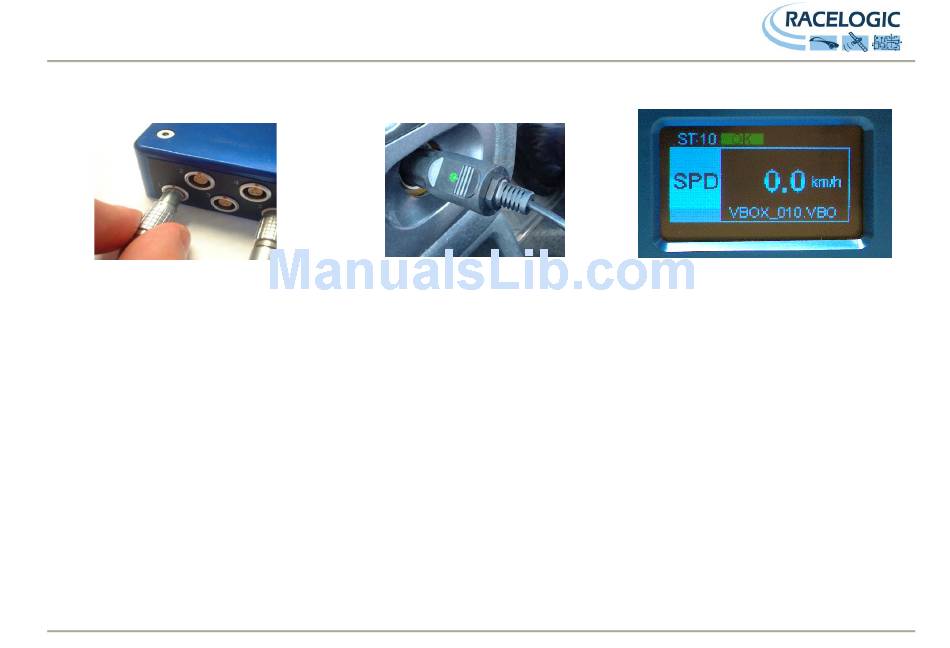

7. Connect the power cable/ battery pack to the
8. If using 12v power cable, connect to vehicle
9. See below
VBOX
9. With the power applied, the Display screen will illuminate. The VB2SX will start searching for satellites. The ST led will indicate the number of satellites
currently in lock. For best results ensure the VBOX has acquired a lock on 5 or more satellites, essential for quality signal reception. When using the VBOX
for the first time or when using the VBOX after a long period of time, allow the VBOX to sit for between 5 and 10 minutes to re-collect data needed to track
satellites.
As the vehicle begins moving, the display will show a file-writing screen then show the normal display screen with the file name of the current file, with a small
disc icon whenever the VBOX is logging.
Page 18 of 28
