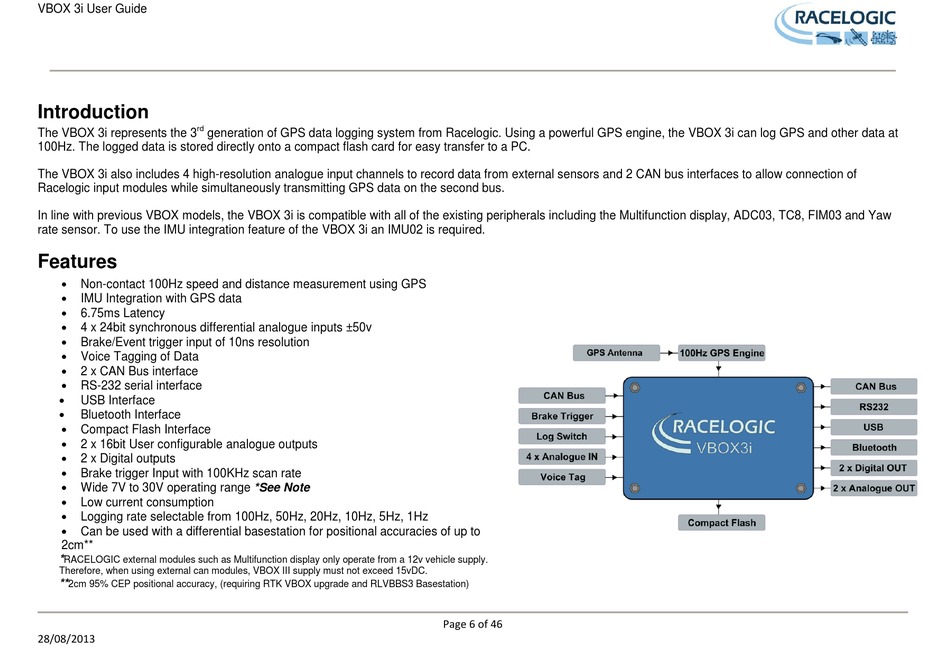

Introduction

rd
The VBOX 3i represents the 3 generation of GPS data logging system from Racelogic. Using a powerful GPS engine, the VBOX 3i can log GPS and other data at
100Hz. The logged data is stored directly onto a compact flash card for easy transfer to a PC.
The VBOX 3i also includes 4 high-resolution analogue input channels to record data from external sensors and 2 CAN bus interfaces to allow connection of
Racelogic input modules while simultaneously transmitting GPS data on the second bus.
In line with previous VBOX models, the VBOX 3i is compatible with all of the existing peripherals including the Multifunction display, ADC03, TC8, FIM03 and Yaw
rate sensor. To use the IMU integration feature of the VBOX 3i an IMU02 is required.

Features


Non-contact 100Hz speed and distance measurement using GPS

IMU Integration with GPS data

6.75ms Latency

4 x 24bit synchronous differential analogue inputs ±50v

Brake/Event trigger input of 10ns resolution

Voice Tagging of Data

2 x CAN Bus interface

RS-232 serial interface

USB Interface

Bluetooth Interface

Compact Flash Interface

2 x 16bit User configurable analogue outputs

2 x Digital outputs

Brake trigger Input with 100KHz scan rate

Wide 7V to 30V operating range *See Note

Low current consumption

Logging rate selectable from 100Hz, 50Hz, 20Hz, 10Hz, 5Hz, 1Hz

Can be used with a differential basestation for positional accuracies of up to
2cm**
*
RACELOGIC external modules such as Multifunction display only operate from a 12v vehicle supply.
Therefore, when using external can modules, VBOX III supply must not exceed 15vDC.
**
2cm 95% CEP positional accuracy, (requiring RTK VBOX upgrade and RLVBBS3 Basestation)
