VBOX II User Guide
Introduction
nd
The VBOX II represents the 2
generation of GPS data logging system from Racelogic. Using a powerful GPS engine, the VBOX II can log GPS and other
data at 20Hz. The logged data is stored directly onto a compact flash card for easy transfer to a PC.

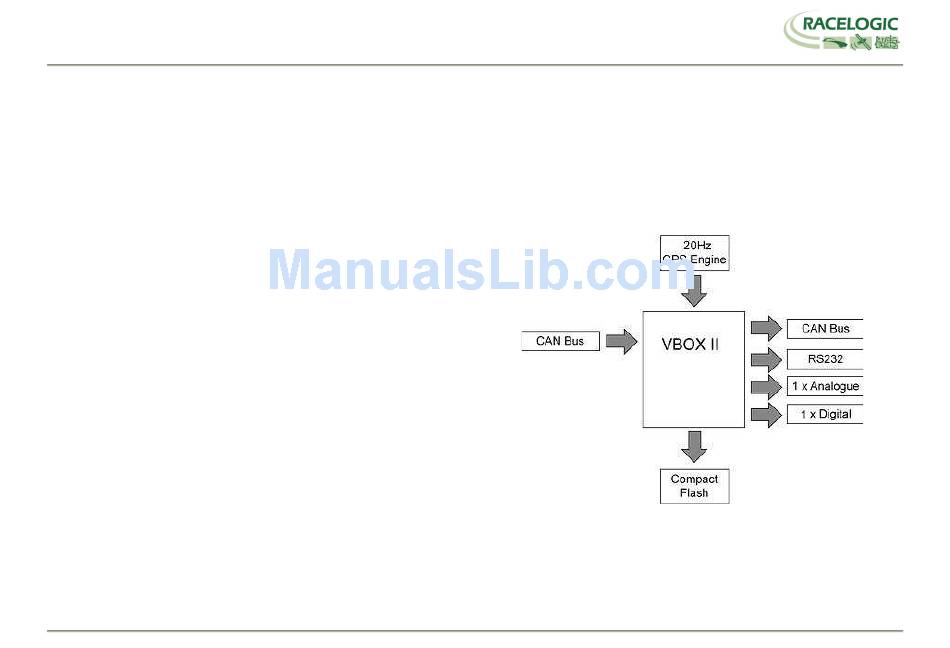

The VBOX II is compatible with all of the existing peripherals including the Multifunction display, ADC03, TC8, FIM02 and Yaw rate sensor.
Features
•
Non-contact 20Hz speed and distance measurement using GPS
•
1 x CAN Bus interface
•
RS-232 serial interface
•
Compact Flash Interface
1 x 16bit User configurable analogue outputs
•
1 x Digital outputs
•
Brake trigger Input with 210KHz scan rate
•
Input Voltage 6V to 18V operating range
•
Logging rate selectable from 20Hz, 10Hz, 5Hz, 2Hz, 1Hz, 0.5Hz
•
Page 4 of 23
