VB2SX User Guide

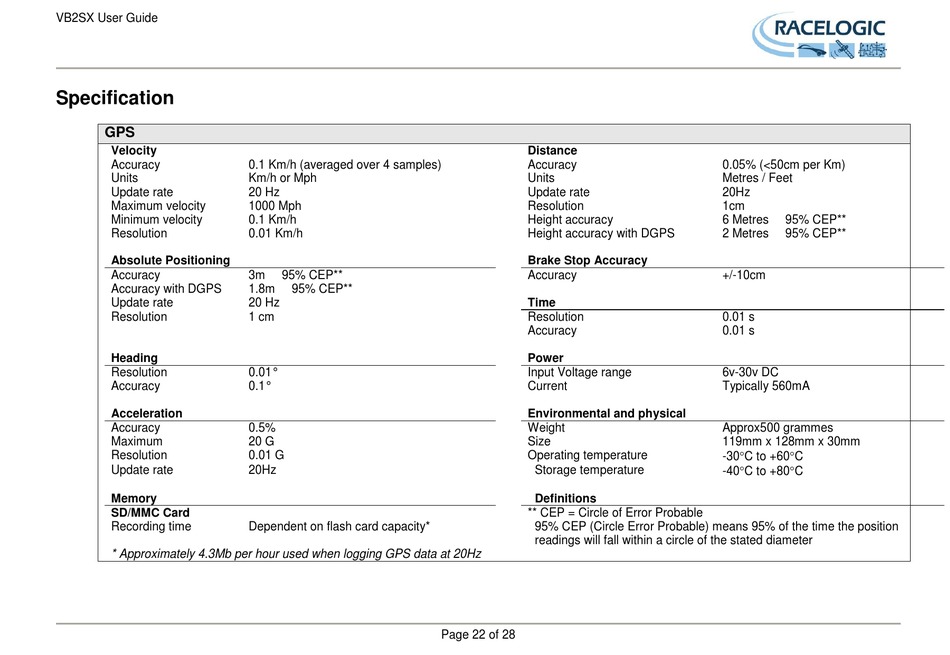

Specification

GPS
Velocity
Accuracy
Units
Update rate
Maximum velocity
Minimum velocity
Resolution
Absolute Positioning
Accuracy
Accuracy with DGPS
Update rate
Resolution
Heading
Resolution
Accuracy
Acceleration
Accuracy
Maximum
Resolution
Update rate
Memory
SD/MMC Card
Recording time
* Approximately 4.3Mb per hour used when logging GPS data at 20Hz
0.1 Km/h (averaged over 4 samples)
Km/h or Mph
20 Hz
1000 Mph
0.1 Km/h
0.01 Km/h
3m 95% CEP**
1.8m 95% CEP**
20 Hz
1 cm
0.01°
0.1°
0.5%
20 G
0.01 G
20Hz
Dependent on flash card capacity*
Distance
Accuracy
Units
Update rate
Resolution
Height accuracy
Height accuracy with DGPS
Brake Stop Accuracy
Accuracy
Time
Resolution
Accuracy
Power
Input Voltage range
Current
Environmental and physical
Weight
Size
Operating temperature
Storage temperature
Definitions
** CEP = Circle of Error Probable
95% CEP (Circle Error Probable) means 95% of the time the position
readings will fall within a circle of the stated diameter
Page 22 of 28
0.05% (<50cm per Km)
Metres / Feet
20Hz
1cm
6 Metres 95% CEP**
2 Metres 95% CEP**
+/-10cm
0.01 s
0.01 s
6v-30v DC
Typically 560mA
Approx500 grammes
119mm x 128mm x 30mm
-30C to +60C
-40C to +80C
