VB2SX User Guide

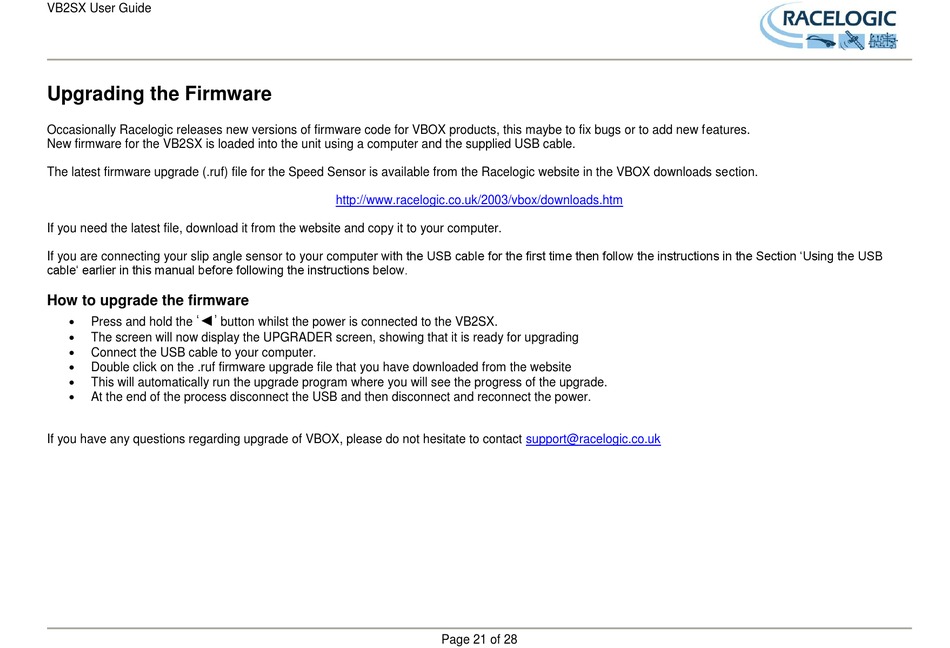

Upgrading the Firmware

Occasionally Racelogic releases new versions of firmware code for VBOX products, this maybe to fix bugs or to add new features.
New firmware for the VB2SX is loaded into the unit using a computer and the supplied USB cable.
The latest firmware upgrade (.ruf) file for the Speed Sensor is available from the Racelogic website in the VBOX downloads section.
If you need the latest file, download it from the website and copy it to your computer.
If you are connecting your slip angle sensor to your computer with the USB cable for the first time then follow the instructions in the Section 'Using the USB
cable' earlier in this manual before following the instructions below.
How to upgrade the firmware
'◄'

Press and hold the button whilst the power is connected to the VB2SX.

The screen will now display the UPGRADER screen, showing that it is ready for upgrading

Connect the USB cable to your computer.

Double click on the .ruf firmware upgrade file that you have downloaded from the website

This will automatically run the upgrade program where you will see the progress of the upgrade.

At the end of the process disconnect the USB and then disconnect and reconnect the power.
If you have any questions regarding upgrade of VBOX, please do not hesitate to contact
http://www.racelogic.co.uk/2003/vbox/downloads.htm
Page 21 of 28
