DIGITAL and ANALOGUE OUTPUTS

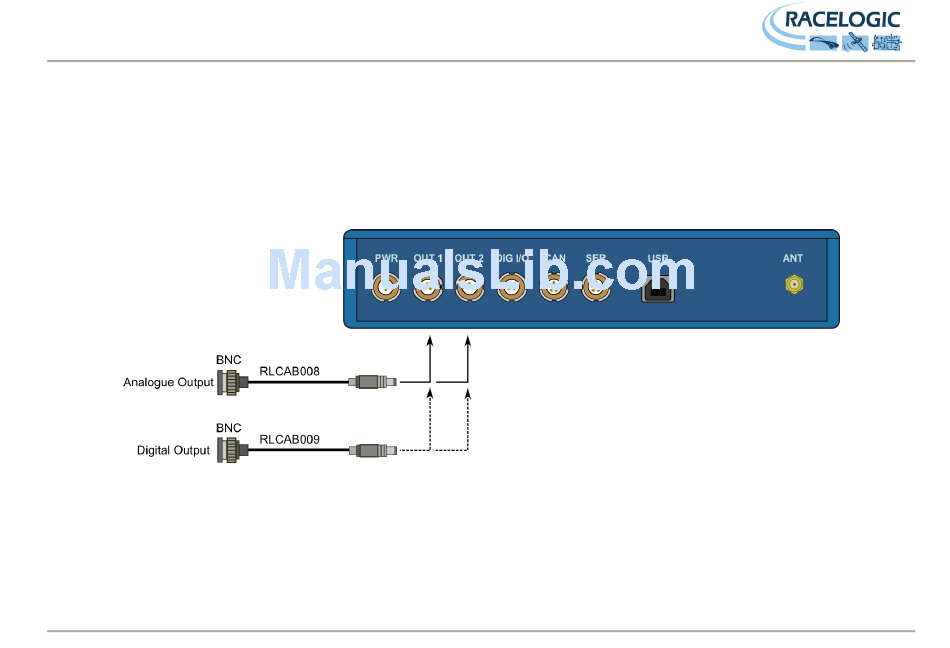

The digital outputs on connectors OUT1 and OUT2 are a frequency/pulse output corresponding to velocity, long ACC and Lat ACC. The frequency range is
adjustable in software or via the front panel controls.
The analogue outputs on connectors OUT1 and OUT2 output a 0V to +5V DC signal corresponding to velocity and a -5V to +5V signal corresponding to Long
ACC and Lat ACC. The volts range is adjustable in software or via the front panel controls.
