3 Installation and Operation
3-2 Installation

3-2-1 Paper Roll Installation

1. Open the cover printer.
2. Push the Blue Cap Lever towards the rear of the printer and lift up to open the paper cover.
3. Ensure that the paper is being fed from the bottom of the roll. Place the roll into the concave bottom of the printer. And
put the leading edge of the paper over the printer.
4. Close the printer cover slowly until it locks firmly.
5. Tear off the excessive paper.

3-2-2 Take-Up Spool Installation

1. Before using the PRINTER(JOURNAL). Install the TAKE-UP SPOOL to it in order described like below.
2. Push the BLUE CAP LEVER towards the rear of the PRINTER and lift up to open the PRINTER COVER.
3. Unroll the paper about 400mm.
4. Ensure that the paper is being fed from the bottom of the roll.
5. Place the roll into the concave bottom of the PRINTER shown in Figure3-3 ①.
6. Put the leading edge of the paper over the PRINTER shown in Figure3-3 ①.
7. Close the PRINTER COVER.
8. Fold the end of the thermal paper about 20mm in length. Slide the leading end of the paper into the groove on the
spindle of the TAKE-UP SPOOL and wind it onto the SPOOL two or three turns as illustrated Figure3-3 ②.
9. Put the removed GUIDE WINDING into the end of the TAKE-UP SPOOL WINDING and fixed the removed
GUIDE WINDING in the direction shown in Figure3-3 ③.
10. Place the TAKE-UP SPOOL into the HOLDER SPOOL behind the PRINTER(JOURNAL) above the roll paper
as illustrated Figure3-3 ④.
11. If the paper is loose, rewind the TAKE-UP SPOOL to tighten the paper.

3-2-3 RS-232C and IRC Serial Cable Installation

1. Connect the RS-232C serial cable to the RS-232C serial port on the right side of ECR.
2. Secure the serial cable with screws.
3. Connector the other end of the RS-232C serial Cable to your host computer.
4. Connect the IRC serial cable to the IRC port on the right side of ECR.
5. Connector the other end of the IRC serial Cable to other ECR.
①

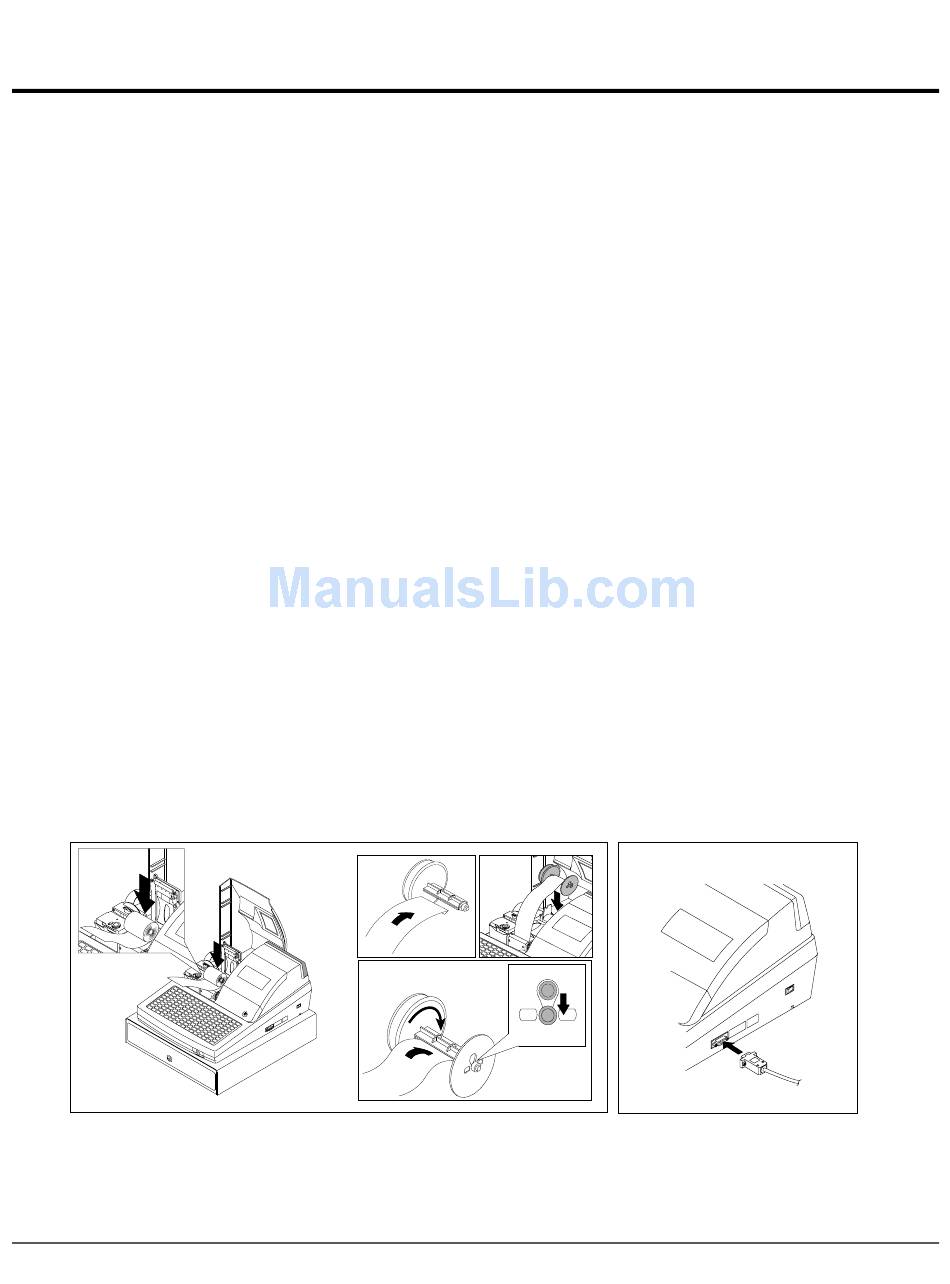

Figure 3-3 Paper & Spool Installation
3-2
②
④
③
Figure 3-4 Cable Installation
