Sam4s ER-5200 Service Manual page 83

9-4 Key Board
9-4-3 Key Board (160Key)

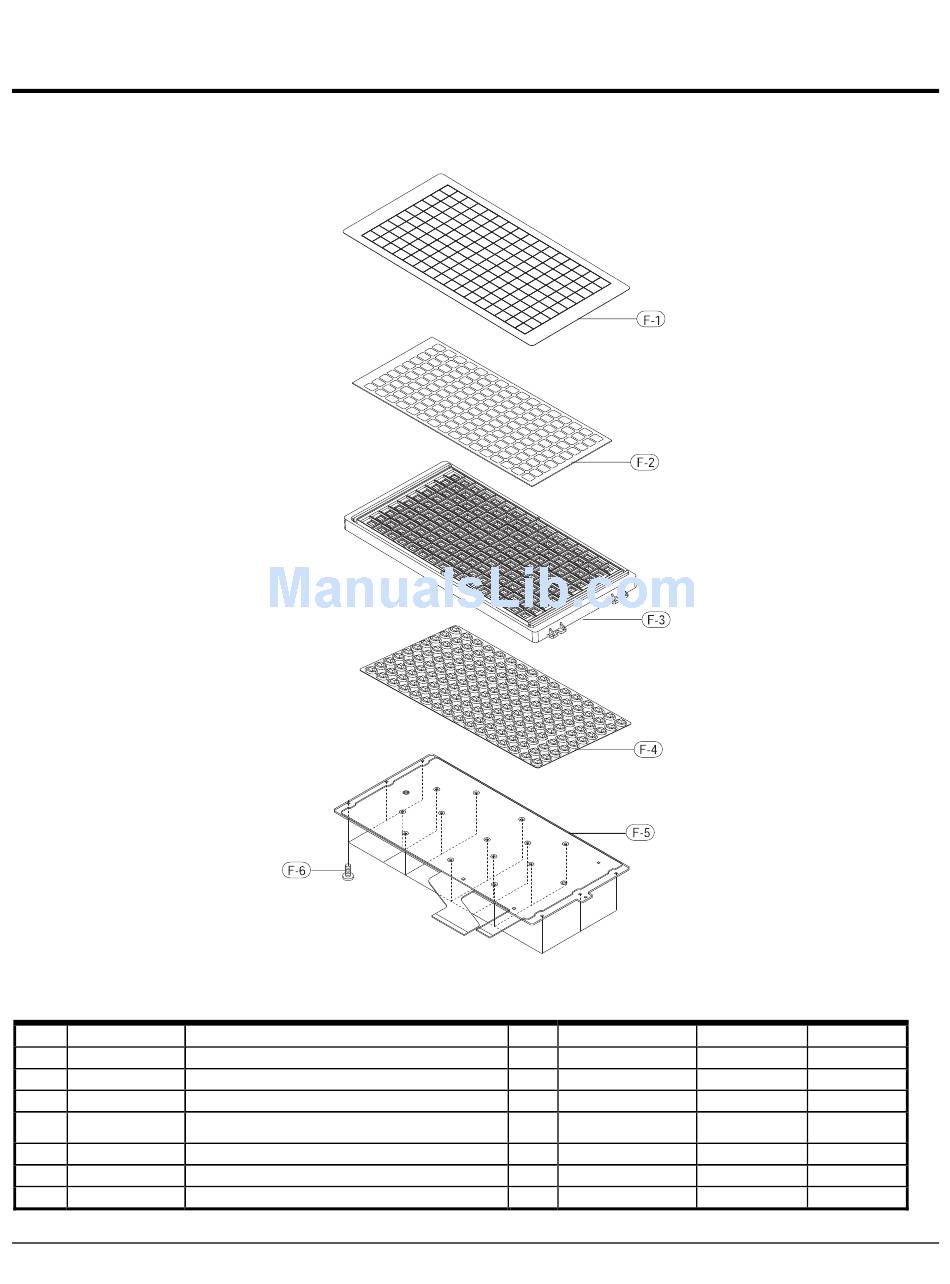

9-4-3-(a) Exploded View
9-4-3-(b) Parts List
No. Parts No.
F JK59-30016A
F-1 JK73-20216A
F-2 JK68-40012N
F-3 JK81-20018A
F-4 JK81-20019A
F-5 JK81-20020A
F-6 JK81-20005A
SAM4S ER-5200 Series
Figure9-13 Key Board (160 Key)
Description / Specification
UNIT-KEYBOARD,RUBBER-FLAT,160KEY
REX-WATER-PROOF:SILICON,160KEY
LABEL-SHEET:ER-5200(CRS),PC T0.125,R-FLAT
PMO-HOUSING:HIPS(V0) IV,RUBBER,160KEY
RUBBER-KEY,SILICON,160KEY
ASSY-FPC,RUBBER,160KEY
SCREW-TAP,M2.6*6,
9 Exploded Views and Parts List
Q`ty Design-Location
1
1
1
1
1
1
19
Serviceable Remark
Y
Y
Y
Y
Y
Y
Y
9-19
