PCI-DAS6052 User's Guide
Gate Positive Hysteresis
Data acquisition is enabled whenever ATRIG goes below the THRESH_LO level.
Acquisition is suspended whenever the ATRIG signal goes above the THRESH_HI
level. The hysteresis level is set by THRESH_HI. This is a level-sensitive gating mode.
+2
+1
0
-1
-2
Trigger
Acquired Data
+2
+1
0
-1
-2

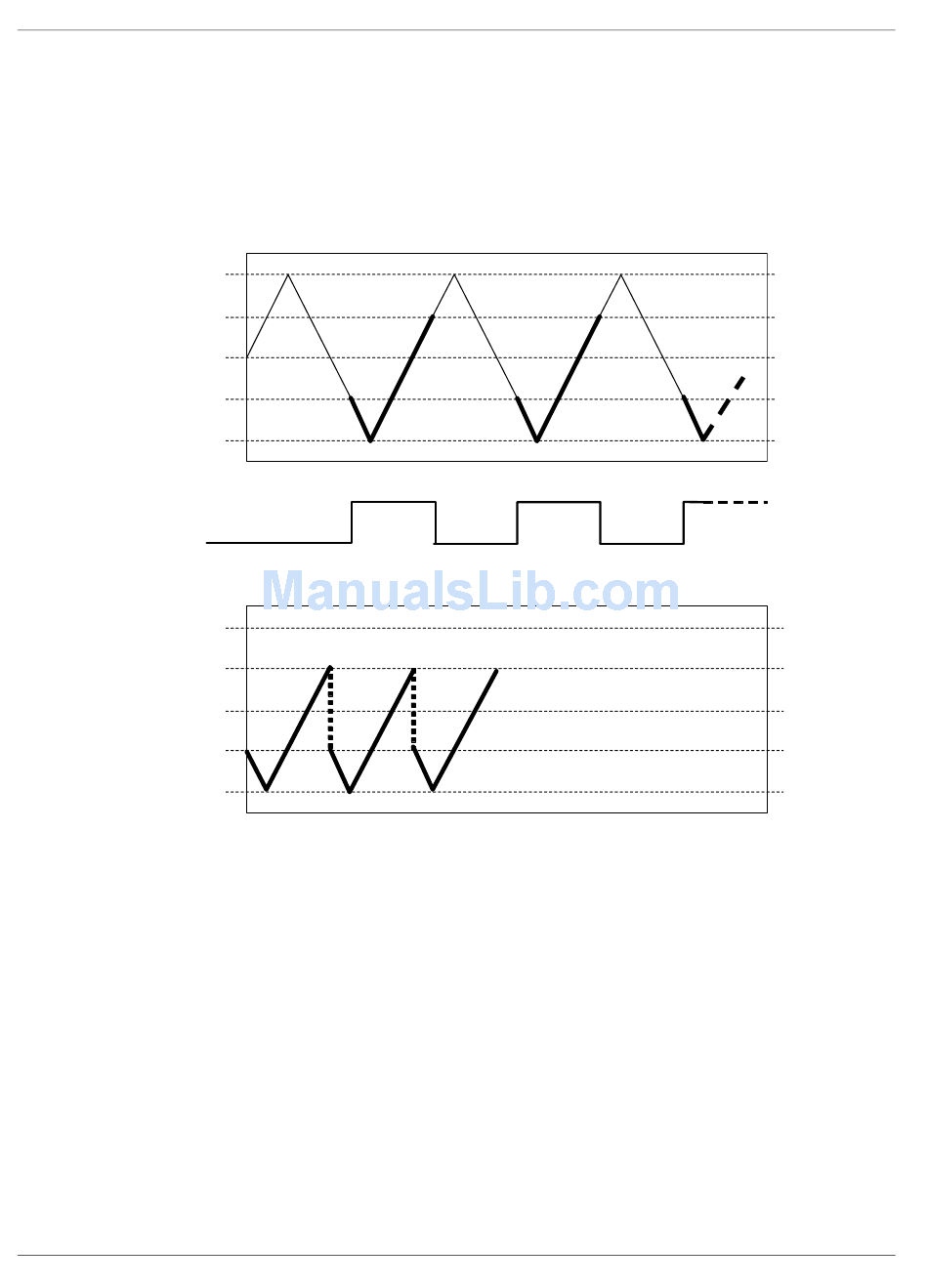

Figure 4-20. Gate Positive Hysteresis
4-18
Functional Details
Thresh_HI
Thresh_LO
