- Page 2 PCI-DAS1002 Multifunction Analog & Digital I/O User's Guide Document Revision 4, July, 2007 © Copyright , Measurement Computing Corporation 2007...
- Page 3 Measurement Computing Corporation, nor its employees shall be liable for any direct or indirect, special, incidental or consequential damage arising from the use of its products, even if Measurement Computing Corporation has been notified in advance of the possibility of such damages. HM PCI-DAS1002.doc...
- Page 4 Trademark and Copyright Information TracerDAQ, Universal Library, Harsh Environment Warranty, Measurement Computing Corporation, and the Measurement Computing logo are either trademarks or registered trademarks of Measurement Computing Corporation. Windows, Microsoft, and Visual Studio are either trademarks or registered trademarks of Microsoft Corporation LabVIEW is a trademark of National Instruments.
-
Page 5: Table Of Contents
Introducing the PCI-DAS1002 ...8 Overview: PCI-DAS1002 features ...8 Software features ...8 PCI-DAS1002 block diagram...9 Chapter 2 Installing the PCI-DAS1002 ...10 What is included with your PCI-DAS1002 ...10 Hardware ...10 Additional documentation...10 Optional components ...10 Unpacking the PCI-DAS1002 ...11 Installing the software ...11 Installing the hardware ...11... - Page 6 Miscellaneous ...22 Power consumption ...22 Environmental ...22 Mechanical ...22 Connector and pin out...23 8-channel differential mode pin out ...23 16-channel single-ended mode pin out...24 Declaration of Conformity ...25...
-
Page 7: Preface
About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the PCI-DAS1002 so that you get the most out of its analog, digital, and timing I/O features. This user's guide also refers you to related documents available on our web site, and to technical support resources. -
Page 8: Introducing The Pci-Das1002

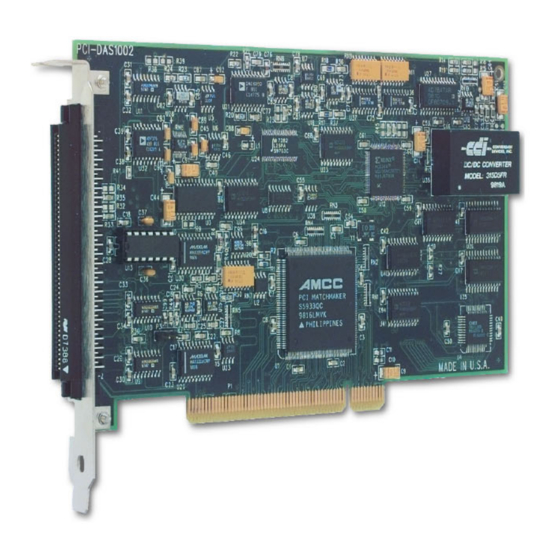

Introducing the PCI-DAS1002 Overview: PCI-DAS1002 features This manual explains how to install and use the PCI-DAS1002. This board is a multifunction analog and digital I/O board designed for the PCI bus. The PCI-DAS1002 provides either 16 single-ended or eight differential analog inputs. Input ranges are software-selectable as either bipolar or unipolar. -
Page 9: Pci-Das1002 Block Diagram
PCI-DAS1002 User's Manual Introducing the PCI-DAS1002 PCI-DAS1002 block diagram PCI-DAS1002 functions are illustrated in the block diagram shown here. Figure 1. PCI-DAS1002 functional block diagram... -
Page 10: Installing The Pci-Das1002
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description of the software you received with your PCI-DAS1002 and information regarding installation of that software. Please read this booklet completely before installing any software or hardware. -
Page 11: Unpacking The Pci-Das1002
Quick-Start.pdf. Installing the hardware The PCI-DAS1002 board is completely plug-and-play. There are no switches or jumpers to set on the board. Configuration is controlled by your system's BIOS. To install your board, follow the steps below. Install the MCC DAQ software before you install your board The driver needed to run your board is installed with the MCC DAQ software. -
Page 12: Configuring The Hardware
Configuring the hardware All hardware configuration options on the PCI-DAS1002 are software controlled. You can select some of the configuration options using InstaCal, such as the analog input configuration (16 single-ended or eight differential channels), and the source for the two independent counters. Once selected, any program that uses the Universal Library will initialize the hardware according to these selections. -
Page 13: Pinout - Main I/O Connector
Pinout – main I/O connector Signal Name A/D Int. Pacer Output PC GND PC +12V PC GND CTR5 OUT CTR5 GATE CTR5 CLK CTR6 OUT CTR6 GATE CTR6 CLK FIRSTPORTC Bit 7 FIRSTPORTC Bit 6 FIRSTPORTC Bit 5 FIRSTPORTC Bit 4 FIRSTPORTC Bit 3 FIRSTPORTC Bit 2 FIRSTPORTC Bit 1... - Page 14 16-channel single-ended mode Signal Name • • • • • • • • • • A/D Int. Pacer Output • • • • • • PC -12V • • PC GND • • PC +12V • • PC GND • • •...
-
Page 15: Cables
Cables Field wiring and signal termination The following MCC screw terminal and signal conditioning boards are compatible with the PCI-DAS1002: SCB-50 – 50-conductor, shielded signal connection box. Details on this product are available on our web site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1168. CIO-MINI50 – 50-pin universal screw terminal accessory. Details on this product are available on our web site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=258. -
Page 16: Programming And Developing Applications
Programming and Developing Applications After following the installation instructions in Although the board is part of the larger DAS family, in general there may be no correspondence among registers for different boards. Software written at the register level for other DAS models will not function correctly with your board. -
Page 17: Calibrating The Board
Calibration theory The PCI-DAS1002 is shipped fully calibrated from the factory with calibration coefficients stored in nvRAM. When using Universal Library at run time, these calibration factors are loaded into system memory and are automatically retrieved each time a different DAC/ADC range is specified. -
Page 18: Specifications
Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Analog input Parameter Specification A/D converter type ADS7800 or equivalent Resolution 12 bits Number of channels 16 single-ended / 8 differential, software selectable Input ranges ±10 V, ±5 V, ±2.5 V, ±1.25 V, 0 to 10 V, 0 to 5V, 0 to 2.5 V, 0 to 1.25 V software programmable A/D pacing... -
Page 19: Accuracy
0 to 5.000 V 0 to 2.500 V 0 to 1.250 V Each PCI-DAS1002 is tested at the factory to assure the board’s overall error does not exceed accuracy limits described in Table 2 above. Table 3. Calibrated accuracy components (in LSB) -
Page 20: Analog Output
±1.0 LSB max Differential linearity error Each PCI-DAS1002 is tested at the factory to assure absolute accuracy. Total analog output error is a combination of gain, offset, integral linearity and differential linearity error. The theoretical worst-case error of the board may be calculated by summing these component errors. Worst case error is realized only in the unlikely event that each of the component errors are at their maximum level, and causing error in the same direction. -
Page 21: Counters
Counters Parameter Counter type Configuration 82C54A: Counter 0 - ADC residual sample counter Counter 1 - ADC pacer lower divider Counter 2 - ADC pacer upper divider 82C54B: Counter 0 - pretrigger mode Counter 0 - user counter 4 (when in non-pretrigger mode) Counter 1 - user counter 5 Counter 2 - user counter 6 Clock input frequency... -
Page 22: Digital Input/Output
Digital input/output Digital type Number of I/O Configuration Input high voltage Input low voltage Output high voltage (IOH = -2.5 mA) Output low voltage (IOL = 2.5 mA) Power-up / reset state Interrupts Interrupts Interrupt enable Interrupt sources Miscellaneous +5 Volts +12 Volts -12 Volts Power consumption... -
Page 23: Connector And Pin Out
Connector and pin out Connector type Compatible cable Compatible accessory products (with C100FF-x cable) 8-channel differential mode pin out Signal Name LLGND CH0 HI CH0 LO CH1 HI CH1 LO CH2 HI CH2 LO CH3 HI CH3 LO CH4 HI CH4 LO CH5 HI CH5 LO... -
Page 24: 16-Channel Single-Ended Mode Pin Out
16-channel single-ended mode pin out Signal Name LLGND CH0 HI CH8 HI CH1 HI CH9 HI CH2 HI CH10 HI CH3 HI CH11 HI CH4 HI CH12 HI CH5 HI CH13 HI CH6 HI CH14 HI CH7 HI CH15 HI LLGND D/A GND 0 D/A OUT 0... -
Page 25: Declaration Of Conformity
Category: Electrical equipment for measurement, control and laboratory use. Measurement Computing Corporation declares under sole responsibility that the product PCI-DAS1002 to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents: EU EMC Directive 89/336/EEC: Electromagnetic Compatibility, EN55022 (1995), EN55024 (1998) Emissions: Group 1, Class B EN55022 (1995): Radiated and Conducted emissions. - Page 26 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
