PCI-DAS6052 User's Guide
Gate Negative Hysteresis
Data acquisition is enabled whenever ATRIG goes above the THRESH_HI level.
Acquisition is suspended whenever the ATRIG signal goes below the THRESH_LO
level. The hysteresis level is set by THRESH_LO. This is a level-sensitive gating mode.
Trigger
Acquired Data
+2
+1
0
-1
-2
+2
+1
0
-1

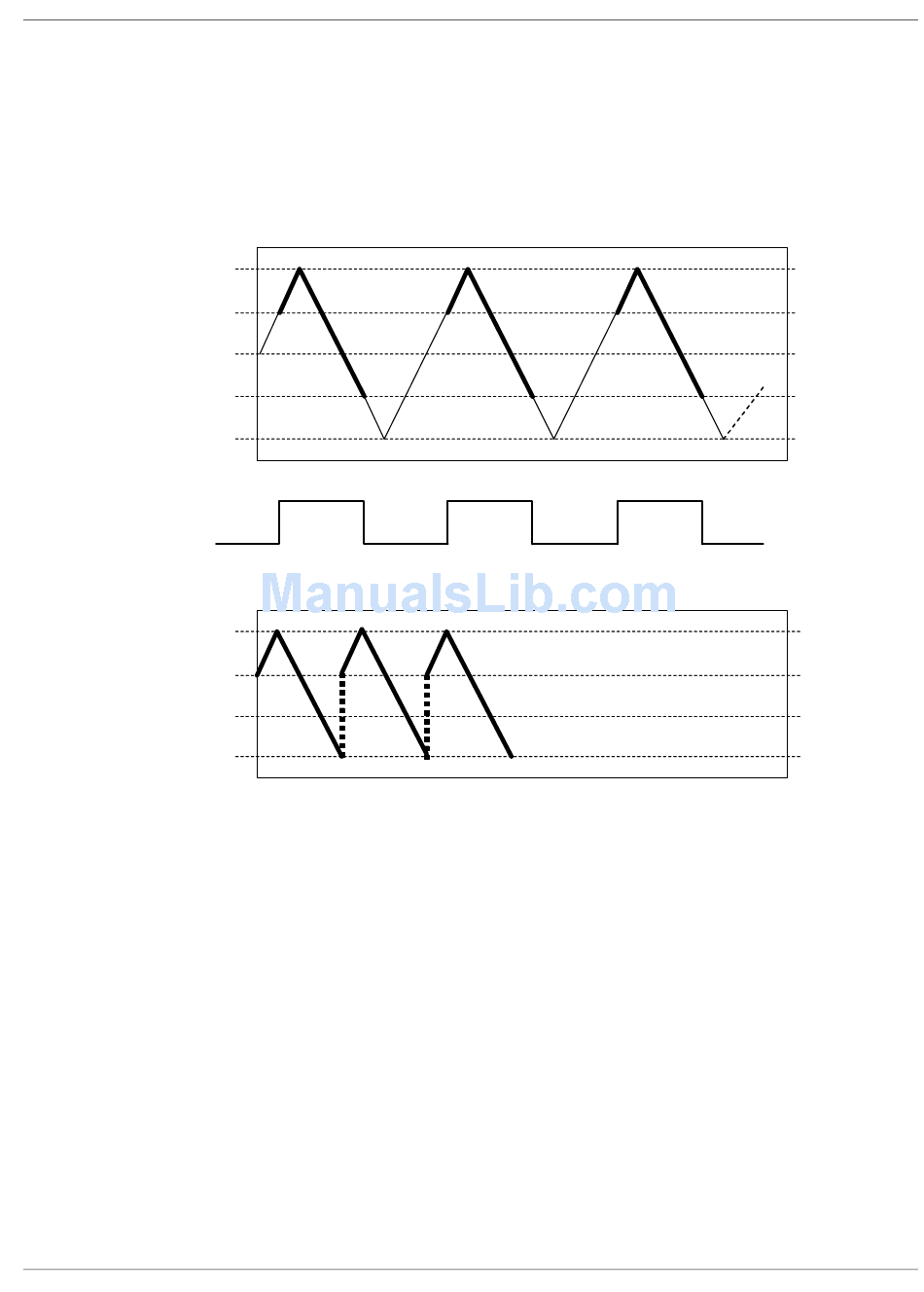

Figure 4-19. Gate Negative Hysteresis
4-17
Functional Details
Thresh_HI
Thresh_LO
