PCI-DAS6052 User's Guide
Gate Above
Data acquisition is enabled whenever ATRIG goes above the THRESH_HI level.
Acquisition is suspended whenever the ATRIG signal goes below the THRESH_HI
level. This is a level-sensitive gating mode.
+2
+2
+1
+1
0
0
-1
-1
-2
-2
Trigger
Result
+2
+1
0
-1

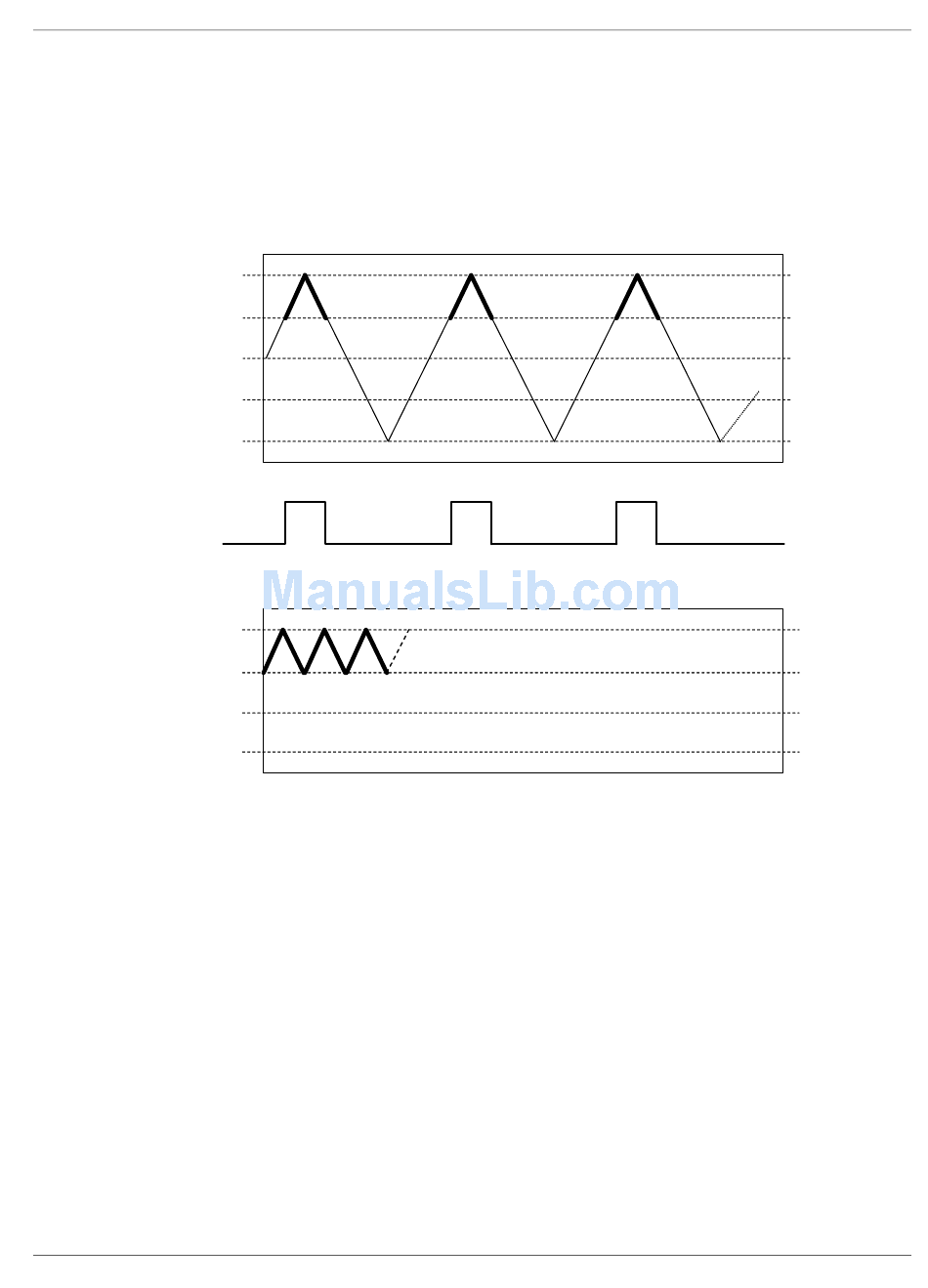

Figure 4-17. Gate Above
4-15
Functional Details
Thresh_HI
