About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the PCI-DAS-TC so that you get the most out of the thermocouple/voltage input features. This user's guide also refers you to related documents available on our web site, and to technical support resources.

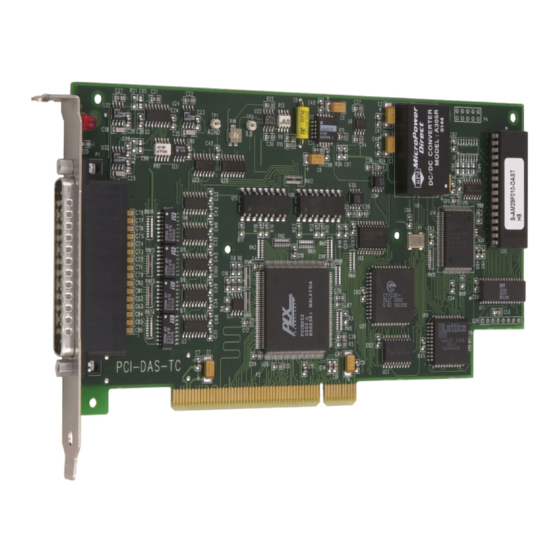

The PCI-DAS-TC is available by itself (MCC part number PCI-DAS-TC/BRD), or as part of a kit that includes the CIO-STA-TC screw terminal adapter board, five foot shielded cable, and DAS Wizard software. The MCC part number for the kit is PCI-DAS-TC.
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description of the software you received with your PCI-DAS-TC and information regarding installation of that software. Please read this booklet completely before installing any software or hardware.
Quick-Start.pdf. Installing the PCI-DAS-TC The PCI-DAS-TC board is completely plug-and-play. There are no switches or jumpers to set on the board. Configuration is controlled by your system's BIOS. To install your board, follow the steps below. Install the MCC DAQ software before you install your board The driver needed to run your board is installed with the MCC DAQ software.
InstaCal. Configuring the PCI-DAS-TC All hardware configuration options on the PCI-DAS-TC are software controlled. You can select some of the configuration options using InstaCal, such as the thermocouple type, CJC on/off, voltage or thermocouple gain, and temperature units. Once selected, any program that uses the Universal Library will initialize the hardware according to these selections.
You can use the following screw terminal adapter board (with CJC sensor and isothermal block) to terminate field signals and route them into the PCI-DAS-TC using the C37FFS-x cable. CIO-STA-TC – Isothermal block with CJC sensor. Details on this product are available on our web site at...
You should use the Universal Library or one of the packaged application programs mentioned above to control your board. Only experienced programmers should try register-level programming. If you need to program at the register level in your application, refer to the Register Map for the PCI-DAS-TC. This document is available at www.mccdaq.com/registermaps/RegMapPCI-DAS-TC.pdf.
The CIO-STA-TC is a specially configured screw terminal adapter board designed specifically for use with the PCI-DAS-TC. The board has screw terminals for each thermocouple channel, a cold junction sensor integrated into an isothermal bar, and the option of installing an "open thermocouple detection" circuit.
Dual Port RAM. Refer to the "Dual Port RAM Memory Map" section in the Register Map for the PCI-DAS-TC for more details on this process. This document is available on our web site at www.mccdaq.com/registermaps/RegMapPCI-DAS-TC.pdf.
Chapter 5 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Analog input Table 1. Analog input specifications A/D converter type AD652 V/F converter Number of channels 16 differential thermocouple inputs, 1 CJC input Programmable ranges −2.5 V to +10 V, −20 mV to +80 mV, −15 mV to +60 mV, −6.25 mV to 25 mV Voltage gains...
PCI-DAS-TC User's Guide Specifications Table 3. Thermocouple measurements (not including CJC errors) Range Accuracy (Worst Case) Resolution Type @ 50 Hz @ 60 Hz @ 400 Hz 0 to 750 °C ±0.5 °C 0.05 °C 0.05 °C 0.40 °C −200 to 1250 °C ±1.4 °C...
PCI-DAS-TC User's Guide Specifications Linearity error Table 8. Linearity error specifications −25 °C to +105 °C 0.1 °C typical, 0.35 °C maximum Temperature coefficient 1 µA/°C typical Long term stability 0.1 °C / month Open thermocouple detect On/off switch selectable for each channel, full scale reading Power consumption Table 9.
