PCI-DAS6052 User's Guide
Cabling – main I/O connector
Pins 1-50 are on the long side
of the "D" connector.
50
100
1
51
Details on the C100HD50-x cable are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=104&pf_id=1203.
50
100
1
51
Details on the C100MMS-x cable are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=104&pf_id=1514.
Pins 51-100 are on
the short side of
the "D" connector.

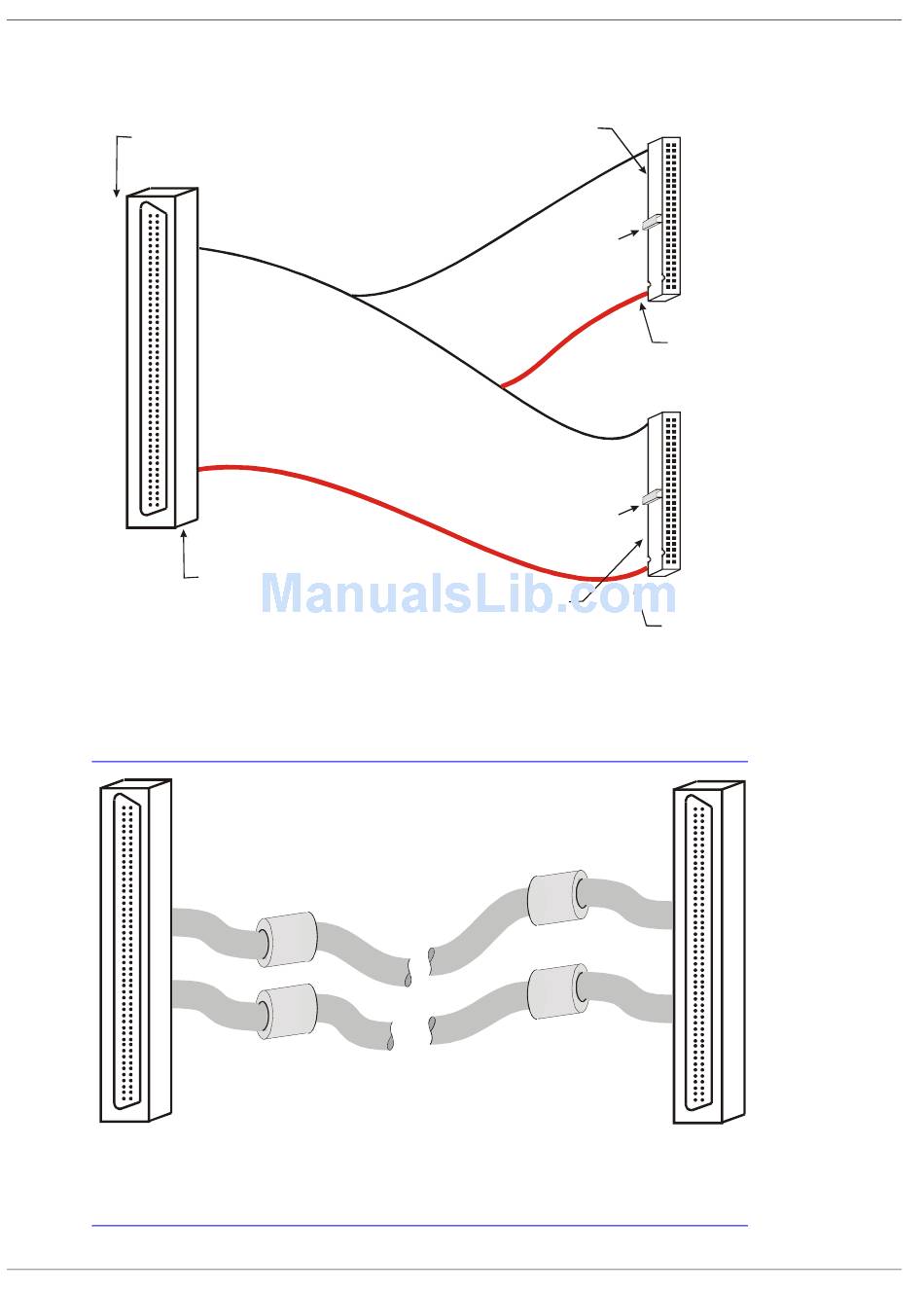

Figure 2-1. C100HD50-x Cable Connections
Figure 2-2. C100MMS-x Cable
Strain relief is
stamped "Pins 1-50".
Strain relief is
Stamped "Pins 51-100".
2-10
Installing the Board
49
50
Key
2
1
The red stripe
identifies pin # 1
99
100
Key
51
52
The red stripe
identifies pin # 51
50
100
1
51
