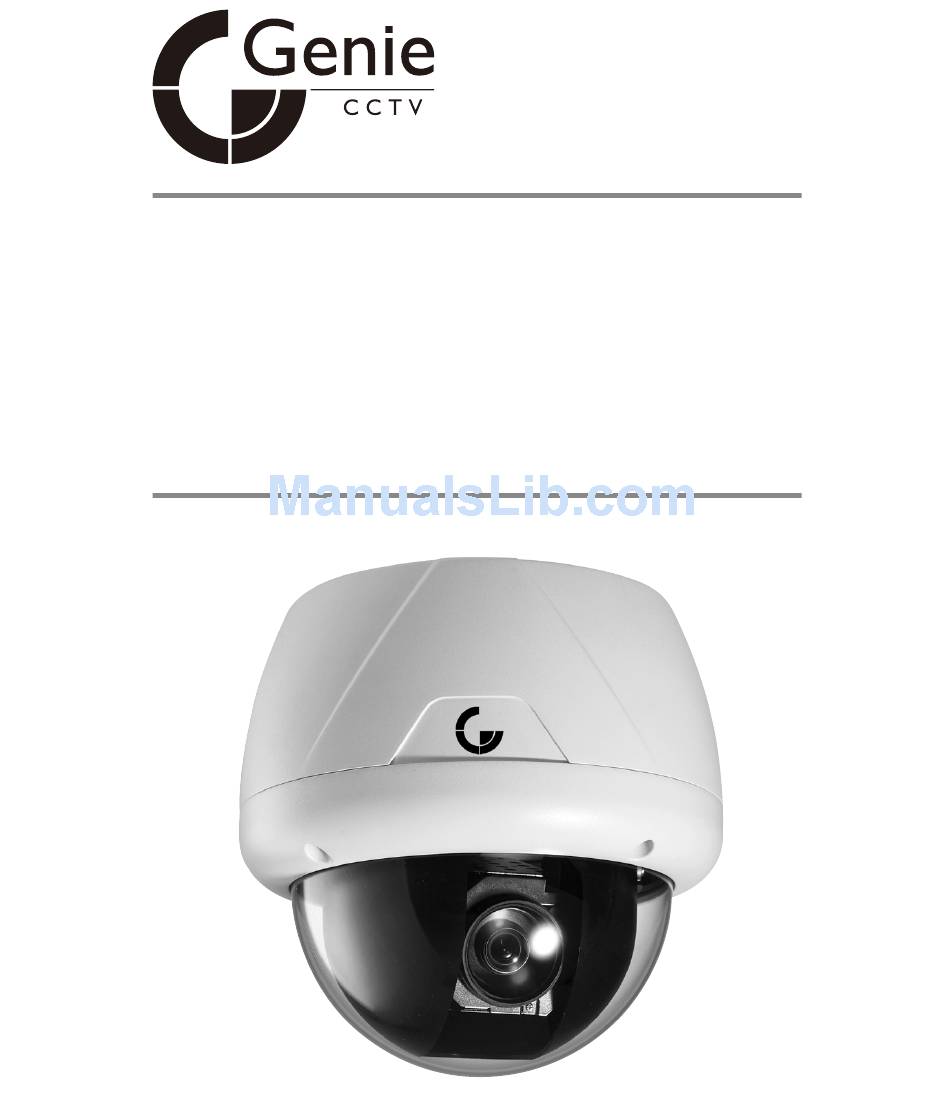

  • Page 1 Model : ASD276 ASD376 Vandal Resistant PTZ Day/Night Camera Instruction Guide...
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN THE COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONAL This lightning flash with arrowhead symbol is intended to alert the user to the presence of un-insulated "dangerous voltage"...
  • Page 3 NOTICE Important Safety Guide 1. Read, heed and follow all the Instructions Read all the safety and operating instructions before using the product. 2. Keep this manual Keep this manual for future reference. 3. Attachments / Accessories Use only the attachments or accessories specified by the manufacturer. 4.
  • Page 4 NOTICE Caution Operating Before using, make sure the power supply and mains are properly installed. While operating, if any abnormal condition or malfunction is observed, stop using the product immediately and contact your distributor. Handling Do not disassemble or tamper with the parts inside the product. Do not drop or subject the product to shock and vibration, as this can damage the product.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS ① Introduction Features Package Components Main Part Description ② Installation DIP Switch Setup Installation with Ceiling Mount Bracket Installation with Wall Mount Bracket Wiring and Cabling ③ Operation Check Point before Operation Check Points for Preset and Pattern Function before Operation OSD Menu Reserved Preset (Hot Keys) Preset...

  • Page 6: Features

    Powerful Zoom Camera & Setup Options Image Sensor : 1/4" Interline Transfer CCD (ASD276, ASD376) Zoom : x27 Optical Zoom, x16 Digital Zoom (ASD276) x37 Optical Zoom, x16 Digital Zoom (ASD376) Day & Night, Privacy Mask and HLC SNR (Super Noise Reduction) Function Various Focus Modes : Auto-Focus, Manual Focus, Semi-Auto Focus Various Setup Options via OSD Menu.
  • Page 7 INTRODUCTION MAX. 8 sets of Swing are programmable. This function means the camera moves repetitively between two preset positions at programmed speeds. MAX. 4 Patterns are programmable. With this function the camera memorises the path (mostly curve path) created by the joystick of a controller and then mimics the joystick movements as closely as possible.
  • Page 8 INTRODUCTION Network Function (only for IP addressable models) Network functions including remote monitoring, bi-directional audio and others are available through IP based networks such as LAN, ADSL/VDSL, and Wireless. For more information, refer to the separate manual for IP Addressable models. Outdoor Environmental Compatibility and Easy Installation Fans and heaters are built-in to the camera for cold and hot temperature environments.

  • Page 9: Package Components

    INTRODUCTION Package Components Product & Accessories Main Body & Surface Mount Bracket Default Accessories [Main Cable, Wrench] Accessories for models with Alarm In/Out Accessories for IP Addressable models Function [I/O Cable] [Crossover LAN Cable, Audio Cable, CD] Brackets (Optional) Wall Mount Bracket Ceiling Mount Bracket [Screws : Machine M5×15, Hex Lag #14×50] [Screws : Machine M5×15, Anchor Bolt 3/8"×70]...

  • Page 10: Main Part Description

    INTRODUCTION Main Part Description Mounting Hook Mounting Screw Holes Reset Switch (IP Model) LAN Port (IP Model) Audio Port (IP Model) Main Connector Sensor I/O Port (I/O Model) DIP Switch Dome Cover Dome Cover Do not detach the protective vinyl from the dome cover before completing the installation process.

  • Page 11: Dip Switch Setup

    INSTALLATION DIP Switch Setup Before installing the camera, set up the DIP switch to configure the camera ID and the communication protocol. Camera ID Setup ID numbers of cameras are set up with binary numbers. See the examples shown below. Binary Value example ID=5 example ID=10...
  • Page 12 INSTALLATION Communication Protocol Setup Select an appropriate Protocol with the DIP switch combination. Switch Mode Protocol (Pin 1) (Pin 2) (Pin 3) PELCO-D, 2400 bps PELCO-D, 9600 bps PELCO-P, 4800 bps PELCO-P, 9600 bps Match the camera protocol with the camera protocol setting of your DVR or keyboard controller to control the camera.
  • Page 13 INSTALLATION Terminal Resistor Set-up The terminal resistor is used in the following cases. Case 1 : In cases where the control cable between a camera and a controller is very long (1:1 connection) If the communication cable length is very long, the electrical signal can bounce at the termination point.

  • Page 14: Installation With Ceiling Mount Bracket

    INSTALLATION Installation with Ceiling Mount Bracket ① Remove the ceiling tile from the ceiling ② Pull the wire(s) and cable(s) for the and cut a hole whose diameter is system as below. Wire the cable(s) to the 30~40mm in the ceiling tile to pass the ports.

  • Page 15: Installation With Wall Mount Bracket

    INSTALLATION Installation with Wall Mount Bracket ① Make a hole whose diameter is 30~40mm ② Pull the wire(s) and cable(s) for the on the mounting surface to pass the system as below. Wire the cable(s) to the wire(s) and cable(s) through the mounting ports.

  • Page 16: Wiring And Cabling

    INSTALLATION Wiring and Cabling POWER INTERNET LAN CABLE BROWSER MAIN CABLE MONITOR AUDIO CABLE MIC SPEAKER RS-485 CONTROLLER / DVR I/O CABLE SENSOR I/O DOOR SENSOR SWITCH Port Description Main Cable Port Pin Number (RJ45) Connector / Wire Colour Signal BNC Connector Video −...
  • Page 17 INSTALLATION Power Description Carefully check the voltage and current capacity of the rated power. The rated power is indicated on the back of the main unit. Model Input Voltage Range Current Consumption DC12V Model DC 11V ~ 18V AC24V Model AC 17V ~ 29V 1.5A For the DC input models, be careful with the polarity of DC power.
  • Page 18 INSTALLATION Video Use BNC coaxial cable, or Category 5e/6 with a balun (e.g. GTP002S). Alarm Input Internal +5V~12V IN COM+ Sensor 1 IN 1- IN 3- Sensor 3 Before connecting any sensors, check the drive voltages and the output signal types. Output signal types for sensors are generally divided into Open Collector and Voltage Output type.The wiring must be correct, according to the type of sensor being connected.

  • Page 19: Check Points Before Operation

    OPERATION Check Points before Operation Before turning on the system, check that the wire(s) and cable(s) are properly connected. Check if the camera ID on the controller is properly selected. The camera ID must be identical to that of the target camera. The camera ID can be checked by reading the DIP switch of the camera or on the OSD.

  • Page 20: Osd Menu

    OPERATION OSD Menu Function With OSD menu, the system can be properly configured for each application. Entering into OSD Go Preset [95] Reserved Presets (Hot Keys) Description Some Preset numbers are reserved to change some parameters without entering into OSD menu. Hot Keys Go Preset [95] : Entering into OSD menu...

  • Page 21: Preset

    OPERATION Preset Function MAX. 127 positions are programmable. The Preset number can be assigned from 1 to 128 except 95. Preset 95 is reserved for entering into OSD menu. Camera parameters such as White Balance, Auto Exposure and others can be set up independently and each preset can have its own parameter values independently from the other presets.

  • Page 22: Pattern

    OPERATION Pattern Function With this function the camera memorises the path (mostly curve paths) created by the joystick controller and then mimics the joystick movements as closely as possible. MAX. Patterns programmable and a Maximum 1200 communication commands can be programmed in a pattern. Setting Patterns A Pattern can be created using the following method.

  • Page 23: Group

    OPERATION Group Function This camera function memorises a combination of Presets, Pattern and/or Swings sequentially and runs Presets, Pattern and/or Swings repetitively. MAX. 8 sets of Group are programmable. Each group can have MAX. 20 actions which are the combination of Preset, Pattern and Swing.
  • Page 24 OPERATION Alarm Input 3 Alarm Inputs are available. When external sensors activate, the camera runs pre-defined actions such as Preset, Pattern, Swing and Group. After the pre-defined time period elapses, “Post Alarm” activates, which is pre-defined. Note that only the latest alarm input is effective when multiple sensors are activated at the same time.

  • Page 25: Osd Display

    OPERATION OSD Display Action Title Preset Label LABEL12345 PRESET1 Alarm Information I:-2- O:1 Camera ID CAM 1 15/4/x1/N P/T/Z Information P/T/Z Information Displays the amount of pan from zero degrees vertically, the amount of tilt from zero degrees horizontally and current compass direction. It also shows the amount of the zoom magnification.

  • Page 26: ④ Osd Menu

    OSD MENU Quick Programming Guide Menu items with < > always have sub-menus. To go to submenus or make the cursor move to the right, press NEAR key. To go to the previous-upper level menus, press FAR key. To make a selection, press NEAR key To cancel a selection, press FAR key To move the cursor in the menu, use the joystick in the Up/Down direction or Left/Right direction.

  • Page 27: Display Setup

    OSD MENU Display Setup Display setup allows programming of how labels are DISPLAY SETUP displayed on the monitor. In AUTO, the labels are only ------------------------ displayed on the monitor when there are any changes in CAMERA ID parameters. PTZ INFORMATION AUTO ACTION TITLE AUTO...

  • Page 28: Privacy Zone Mask Setup

    OSD MENU Compass Direction Setup Move the camera to a target position and press NEAR SET NORTH DIRECTION button to save the direction as North. This direction is the ------------------------ reference direction to assign other compass directions. MOVE TO TARGET POSITION [NEAR:SAVE /FAR:CANCEL Privacy Zone Mask Setup...
  • Page 29 OSD MENU Privacy Zone Mask Area Setup Move the camera to an area to mask. A mask and the EDIT MASK 1 menu to adjust the mask size are displayed. ------------------------ MOVE TO TARGET POSITION [NEAR:SELECT/FAR:CANCEL] Privacy Zone Mask Size Setup Adjusts the mask size.

  • Page 30: Camera Setup

    OSD MENU Camera Setup Sets the general functions of the zoom camera module. ZOOM CAMERA SETUP ------------------------ Focus Mode [AUTO/MANUAL/SEMIAUTO] FOCUS MODE SEMIAUTO Sets camera Focus mode. DIGITAL ZOOM IMAGE FLIP SEMIAUTO Mode SHARPNESS This mode automatically exchanges focus STABILIZATION modes between Manual Focus and Auto <WHITE BALANCE SETUP>...
  • Page 31 OSD MENU Stabilisation [ON/OFF] Compensates for movements caused by wind etc. Images with vibrations are compensated with the Digital Zoom function. Image resolution with this function is lower than normal image resolution when this function is turned on. Also, this function may not work correctly in the following cases: Dark or low contrast scene High frequency vibration...
  • Page 32 OSD MENU Auto Exposure Setup Backlight [OFF/BLC/HLC] AE SETUP - GLOBAL Sets Backlight Compensation. If a bright ------------------------ backlight is present, the subjects in the BACKLIGHT DAY/NIGHT AUTO picture may appear dark or as a BRIGHTNESS silhouette. Backlight compensation IRIS AUTO enhances objects in the centre of the SHUTTER...
  • Page 33 OSD MENU Shutter Speed [ESC/A.Flicker/Manual (x512~1/120000 sec)] Sets Shutter Speed. Shutter Speed is the duration of the electronic shutter. If Iris is set to Manual and Shutter Speed is set to ESC, Shutter Speed has higher priority. If Shutter Speed is set to A.Flicker, to remove Flicker, Shutter Speed should be set to 1/120 sec.
  • Page 34 OSD MENU HLC (High Light Compensation) Setup Limit [AUTO/MANUAL] When there are too bright lights, this ------------------------ function blocks light sources on images LIMIT COLOR to have better images. For example, when there is a car coming to a camera at night, this function blocks car headlights to recognize its number plate.

  • Page 35: Motion Setup

    OSD MENU Motion Setup Sets the general functions of Pan/Tilt motions. MOTION SETUP ------------------------ Motion [ON/OFF] MOTION LOCK Lock If Motion Lock is set to ON, it is impossible to PWR UP ACTION set up and delete Preset, Swing, Pattern and AUTO FLIP Group.
  • Page 36 OSD MENU Parking Action Setup This feature allows the camera to begin a specified action PARKING ACTION SETUP after a programmed time of inactivity. ------------------------ PARK ENABLE Park Enable [ON/OFF] WAIT TIME 00:10:00 If Park Enable is set to ON, the camera PARK ACTION HOME runs an assigned function automatically,...
  • Page 37 OSD MENU Alarm Input Setup Defines Alarm Function. When an alarm is received, ALARM INPUT SETUP an input signal to the camera triggers the user-defined ------------------------ action programmed for the alarm. ALARM NO. Alarm No [1~3] TYPE N.OPEN ACTION NOT USED Selects a sensor number to set up.

  • Page 38: Preset Setup

    OSD MENU Preset Setup Preset [1~128] PRESET SETUP Number Selects a preset number to set up. If a ------------------------ selected preset is already defined, the PRESET NO. camera moves to the pre-defined position CLR PRESET CANCEL and preset parameters such as Label and <EDIT SCENE>...
  • Page 39 OSD MENU Preset Scene Setup ○ 1 Use the Joystick to move the camera to a desired EDIT SCENE - PRESET 1 position. ------------------------ ○ 2 Save the preset position by pressing the NEAR key. ○ 3 Pressthe FAR key to cancel the preset position. MOVE TO TARGET POSITION [NEAR:SAVE /FAR:CANCEL]...

  • Page 40: Swing Setup

    OSD MENU Swing Setup Swing [1~8] SWING SETUP Number Selects a Swing number to edit. If the ------------------------ selected Swing is not defined, "NOT USED" SWING NO. is displayed in the 1st Position and the 2nd 1ST POS. NOT USED 2ND POS.

  • Page 41: Pattern Setup

    OSD MENU Pattern Setup Pattern Number [1~4 ] PATTERN SETUP Selects a Pattern number to edit. If the ------------------------ selected pattern number is not PATTERN NO. defined, "UNDEFINED" will UNDEFINED CLR PATTERN CANCEL displayed under the selected pattern RUN PATTERN number.

  • Page 42: Group Setup

    OSD MENU Group Setup Group Number [1~8] GROUP SETUP Selects a Group number to edit. ------------------------ If the selected Group number is not GROUP NO. UNDEFINED defined, "UNDEFINED" will CLEAR GROUP CANCEL displayed under the selected Group RUN GROUP number. <EDIT GROUP>...
  • Page 43 OSD MENU ③ Define Action, Dwell time and Option. Note that the dark EDIT GROUP 1 rectangle is the cursor. Move the cursor Left/Right to ------------------------ select an item and move the cursor Up/Down to NO ACTION ### DWELL OPT change each parameter.
  • Page 44 OSD MENU ⑥ After finishing set up, press the FAR key to exit. The EDIT GROUP 1 cursor will then move to “SAVE”. Press the NEAR key to ------------------------ save the data. NO ACTION ### DWELL OPT ------------------------ 1 PRESET 1 00:03 360 2 NONE 3 NONE...

  • Page 45: System Initialize

    OSD MENU System Initialisation Clear All Data Deletes all configuration data and the system SYSTEM INITIALIZE is set to the factory defaults. ------------------------ Clear Display Set Initialises all the configuration data for Display. CLEAR ALL DATA CLR DISPLAY SET Clear Camera Set Initialises all the configuration data for CLR CAMERA SET the Camera.

  • Page 46: ⑤ Specifications

    SPECIFICATIONS Specifications CAMERA PART (ASD376 Model) ' ' 4 Total Pixels 811(H)x508(V) 410K 795(H)x596(V) 470K Effective Pixels 768(H)x494(V) 380K 752(H)x582(V) 440K Horizontal Resolution 600 TV Lines(Colour), 700 TV Lines(B/W) - l a ) f f Zoom x37 Optical Zoom, x16 Digital Zoom Focal Length Angle ofView H : 55.5˚(Wide)~1.59˚(Tele) / V : 42.5˚(Wide)~1.19˚(Tele)
  • Page 47 SPECIFICATIONS CAMERA PART (ASD276 Model) ' ' 4 Interline Transfer CCD Total Pixels 811(H)×508(V) 410K 795(H)×596(V) 470K Effective Pixels 768(H)×494(V) 380K 752(H)×582(V) 440K Horizontal Resolution 600 TV Lines(Colour), 700 TV Lines(B/W) - l a ) f f ×27 Optical Zoom, ×16 Digital Zoom...
  • Page 48 SPECIFICATIONS MECHANISM °(Endless) Movement Range ° t l i °/sec. Speed 0.05 ~ 360°/sec. (Proportional Zoom) °/sec. Preset 127 Presets (Label, Independent Camera Parameter Setting) 8 Groups (MAX. 20 Actions with The Combination of Preset, Group Pattern and Swing) Other Pan/Tilt Functions Auto Flip, Auto Parking, Power Up Action etc.
  • Page 49 SPECIFICATIONS MECHANICAL n i l l l a Material ∅150mm / ∅ 5.9” Dome Size ∅192×265.3 mm Dimension 296×276.6 mm [Note] 1) Specification and features are subject to change without prior notice. 2) Specification and features are different by model. 3) Check the voltage and current capacity of rated power carefully.

  • Page 50: Dimension

    SPECIFICATIONS Dimension Main Body Ceiling Mount Type 56.4 56.4 1.5" NPT 158.2 Wall Mount Type 118.6 4- 8 [Unit : mm] Speed Dome Camera Instruction Manual 50/50...
  • Page 51 GENIE CCTV LTD. CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT Tel : +44 (0) 1707 330541 Fax : +44 (0) 1707 330543 www.geniecctv.com Edition. GN-SEPTEMBER 2013...
