GENIE CCTV LTD.
CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT
Tel : +44 (0) 1707 330541 Fax : +44 (0) 1707 330543
www.geniecctv.com
■ FEATURES
ㆍ SONY 1/3" Super HAD High-Resolution Colour CCD
ㆍ Vari-Focal DC Auto Iris Lens Built-in
ㆍ SONY SS-11X Chipset with 480TV Lines
ㆍ Excellent Colour Rolling Suppression
ㆍ Min. Illumination : 0.5Lux at F1.2
ㆍ Built-In 3 Axis Bracket
■ DIMENSIONS
φ100.0
φ124.15

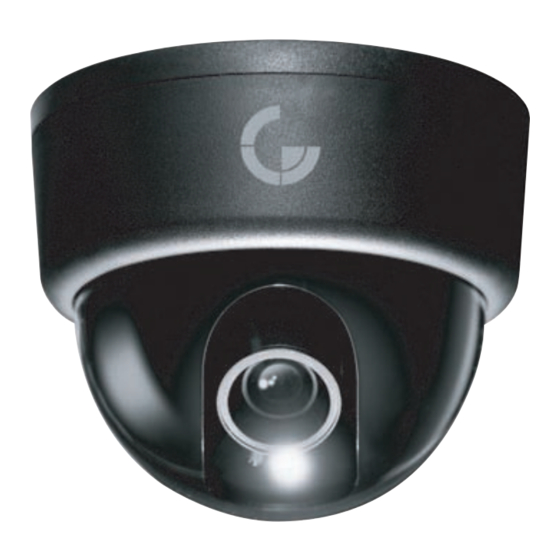

Colour Dome Camera
■ SPECIFICATION
ITEM
Image Sensor
Effective Pixels
Scanning System
Scanning Frequency
Resolution
Shutter Speed
S/N Ratio
Minimum Illumination
Lens
White Balance
Synchronisation System
Back Light Compensation
Flickerless
AGC
Power Source
Operating Temperature
Ambient Humidity
※OPTION - Smoked Dome Bubble : GD103CHVAI /SMO
(unit : mm)
Model : GD103CHVAI
GD103CHVAI/SMO
※ Please read this manual thoroughly before use.
Keep this manual handy for future reference.
NTSC
SONY 1/3" Colour CCD
768(H) × 492(V) (380K Pixels) 752(H) × 582(V)) (440K Pixels)
525 lines 2:1 Interlace
15.734KHz(H) 59.94Hz(V)
480 TV Lines
1/60~1/100,000sec.
more than 48dB (AGC OFF)
0.5 Lux (F1.2)
Vari-Focal DC Auto Iris (4~9mm/F1.2)
ATW/AWB
INT/LL
ON/OFF
ON/OFF
BUILT-IN
DC12V Only (Max.160mA)
-10℃~+50℃
90%RH MAX.
Colour Dome Camera
PAL
625 lines 2:1 Interlace
15.625KHz(H) 50Hz(V)
1/50~1/100,000sec.
