Genie CCTV VRD43/12 Quick Start Manual

GENIE CCTV LTD.
CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT
Tel : +44 (0) 1707 330541 Fax : +44 (0) 1707 330543
www.geniecctv.com
■ FEATURES
ㆍ 1/3" Sony Super HAD CCD
ㆍ Horizontal Resolution of 540 TV Lines
ㆍ Vari-Focal Auto Iris Lens (4mm~9mm / F1.5)
ㆍ Built-in 3 Axis Bracket
ㆍ Weatherproof (IP67)
■ DIMENSION
100.0
Edition. GN-JUNE 2011
83.5
152.0
(unit : mm)
Digital Day/Night
Vandal Resistant

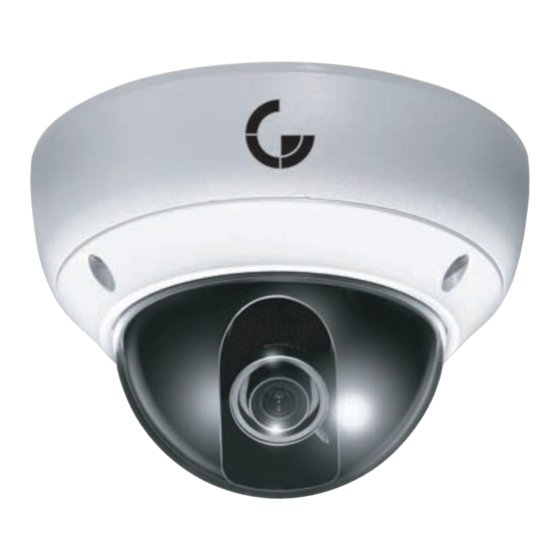

Dome Camera

※ Please read this manual thoroughly before use.
Keep this manual handy for future reference.
■ SPECIFICATION
ITEM NTSC
AC24V / DC12V DC12V AC24V / DC12V DC12V
Power Consumption
110mA(AC24V)/160mA(DC12V) 160mA 110mA(AC24V)/160mA(DC12V) 160mA
811(H) x 508(V)
Total Pixels
768(H) x 494(V)
Effective Pixels
1/3" Sony Super HAD CCD
Size
Scanning System
Synchronisation
Hori z ontal : 15.734 KHz Verti c al :59.94 Hz Hori z ontal : 15.625 KHz Verti c al : 50.00 Hz
Frequency
Resolution
1.0Vp-p/75(Vi d eo 0.714Vp-p Sync 0.286Vp-p) 1.0Vp-p/75 (Vi d eo 0.7 Vp-p Sync 0.3 Vp-p)
Video Output
S/N Ratio
Min. Illumination
White Balance
Gain Control
Iris Control
Shutter Speed
Vari-Focal Auto Iris Lens (4mm~9mm / F1.5)
Lens
-10˚C ~ +50˚C / 30~90% RH
Operating Temperature/Humidity
Weatherproof
152.0(D)mm x 104.7(H)mm
Dimension
Weight
Model : VRD43/12
PAL
795(H) x 596(V)
752(H) x 582(V)
2:1 Interlace
INT
540TV Lines
50dB (AGC Off)
0.15Lux (40IRE)
AWB (1,800˚K~10,500˚K)
ON
DC
Fixed (1/50)
IP67
1,100g
Digital Day/Night
Vandal Resistant
Dome Camera
