Removing The Hard Disk Drive; Hard Disk Upgrade Process - EUROCOM A110SU Service Manual

Disassembly

Removing the Hard Disk Drive

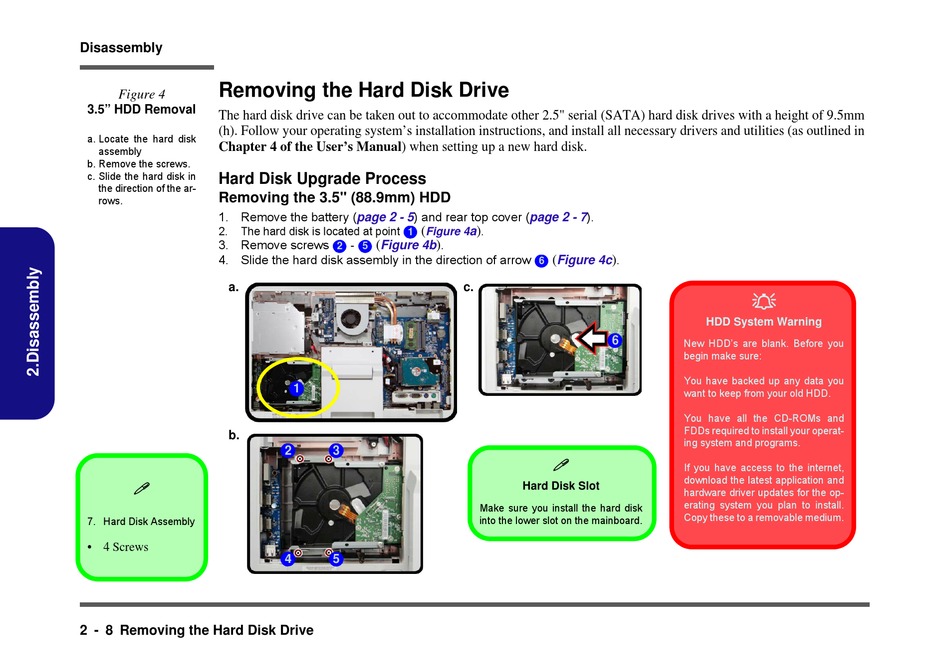

Figure 4
3.5" HDD Removal
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm
(h). Follow your operating system's installation instructions, and install all necessary drivers and utilities (as outlined in
a. Locate the hard disk
Chapter 4 of the User's Manual) when setting up a new hard disk.
assembly
b. Remove the screws.
c. Slide the hard disk in

Hard Disk Upgrade Process

the direction of the ar-
Removing the 3.5" (88.9mm) HDD
rows.
1. Remove the battery
2. The hard disk is located at point
3. Remove screws
4. Slide the hard disk assembly in the direction of arrow
a.
b.

7. Hard Disk Assembly
• 4 Screws
2 - 8 Removing the Hard Disk Drive
(page 2 - 5) and rear top cover
(
Figure 4
1
- .
( Figure 4b )
2 5
c.
1
2 3
4 5
(page 2 -
7).
.
a )
.
( Figure 4c )
6
6

Hard Disk Slot
Make sure you install the hard disk
into the lower slot on the mainboard.

HDD System Warning
New HDD's are blank. Before you
begin make sure:
You have backed up any data you
want to keep from your old HDD.
You have all the CD-ROMs and
FDDs required to install your operat-
ing system and programs.
If you have access to the internet,
download the latest application and
hardware driver updates for the op-
erating system you plan to install.
Copy these to a removable medium.
