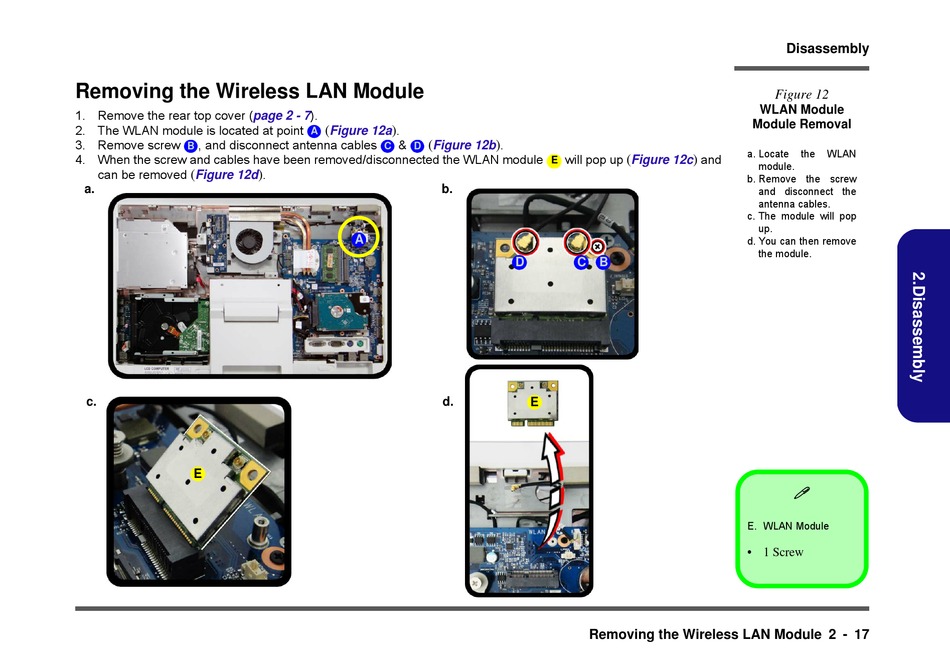

Removing the Wireless LAN Module

1. Remove the rear top cover (page 2 -
2. The WLAN module is located at point
3. Remove screw , and disconnect antenna cables
B
4. When the screw and cables have been removed/disconnected the WLAN module
can be removed
( Figure 12d
a.
c.
E
7).
.
( Figure 12a )
A
&
( Figure 12b
C D
.
)
A
.
)
will pop up
E 6
b.
D C B
d. E
Removing the Wireless LAN Module 2 - 17
Disassembly
Figure 12
WLAN Module
Module Removal
a. Locate the
and
( )
Figure 12c
module.
b. Remove the screw
and disconnect the
antenna cables.
c. The module will pop
up.
d. You can then remove
the module.

E. WLAN Module
• 1 Screw
WLAN
