Removing the Optical (CD/DVD) Device

1. Remove the battery (page 2 -
2. Remove screw from the optical device
A
3. Push the optical device out in the direction of arrow
B 6
a.
5) and rear top cover (page 2 -
7).
.
( Figure 9a )
( Figure 9b
C
b.
A
.
)
B
C
Removing the Optical (CD/DVD) Device 2 - 13
Disassembly

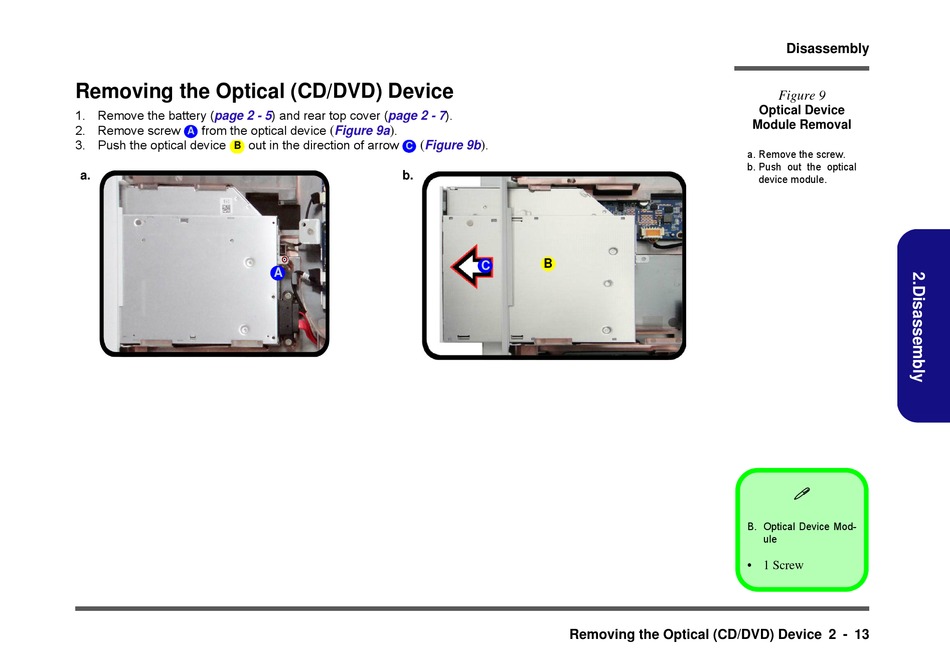

Figure 9
Optical Device
Module Removal
a. Remove the screw.
b. Push out the optical
device module.

B. Optical Device Mod-
ule
• 1 Screw
