Disassembly
5. Turn the release latch

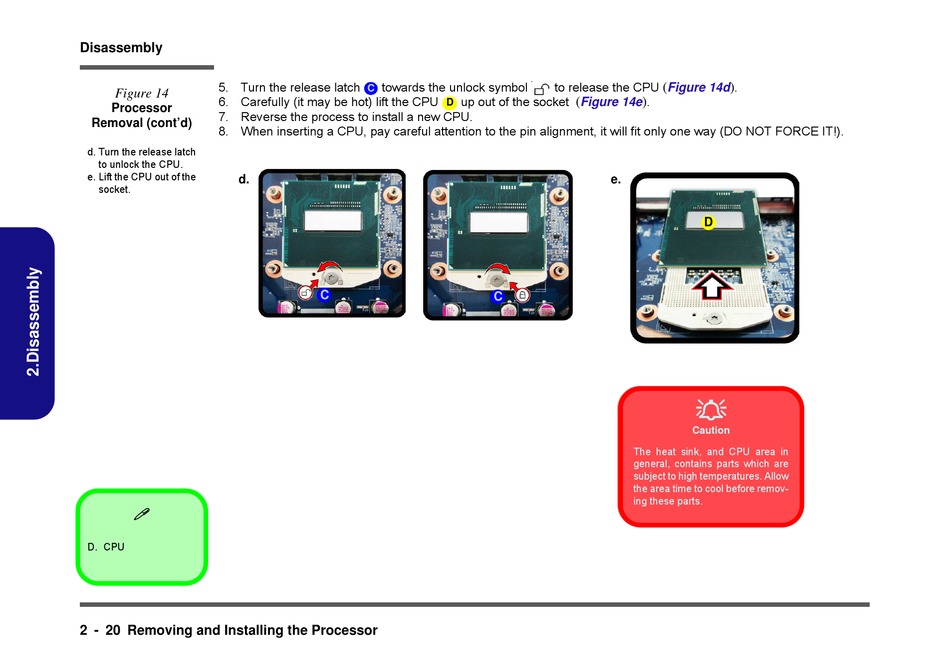

Figure 14
6. Carefully (it may be hot) lift the CPU
Processor
7. Reverse the process to install a new CPU.
Removal (cont'd)
8. When inserting a CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
d. Turn the release latch
to unlock the CPU.
e. Lift the CPU out of the
d.
socket.

D. CPU
2 - 20 Removing and Installing the Processor
towards the unlock symbol
C
up out of the socket
D
6
C
C
to release the CPU
( )
Figure 14d
.
( Figure 14e )
e.
D

Caution
The heat sink, and CPU area in
general, contains parts which are
subject to high temperatures. Allow
the area time to cool before remov-
ing these parts.
.
