Mounted System Example

The following pictures show some examples of how a system can be mounted on to a wall. These pictures are intended
for guideline purposes only, and are not specific instructions. Professional installers will determine the exact installation
procedure for your specific bracket and mounting conditions.
Installation Example
1. After removing the stand, the display bracket (which must to be VESA 100mm * 100mm compliant - weight rating
of 30kg minimum) is attached firmly to the rear of the computer using M4 screws (of a length of 12mm) provided
with the bracket.
2. The (VESA compliant) wall bracket can then be attached to the wall using the screws provided with the system
(holes in the flat, perpendicular wall should be drilled to a minimum depth of 30mm).
Wall Mounting Info

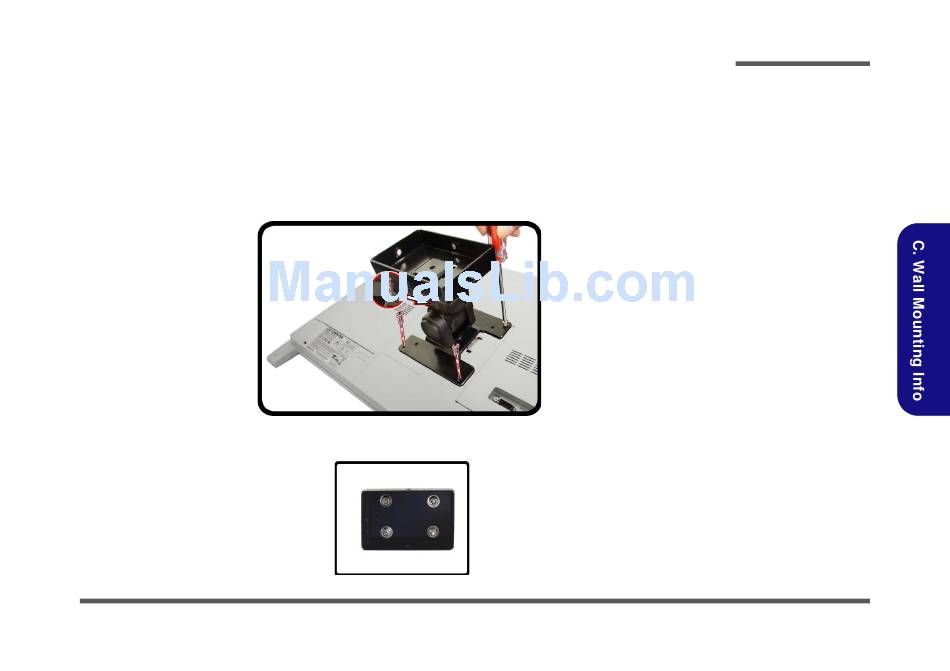

Figure 2
Display Bracket
Attached
Figure 3
Wall Bracket
