Disassembly

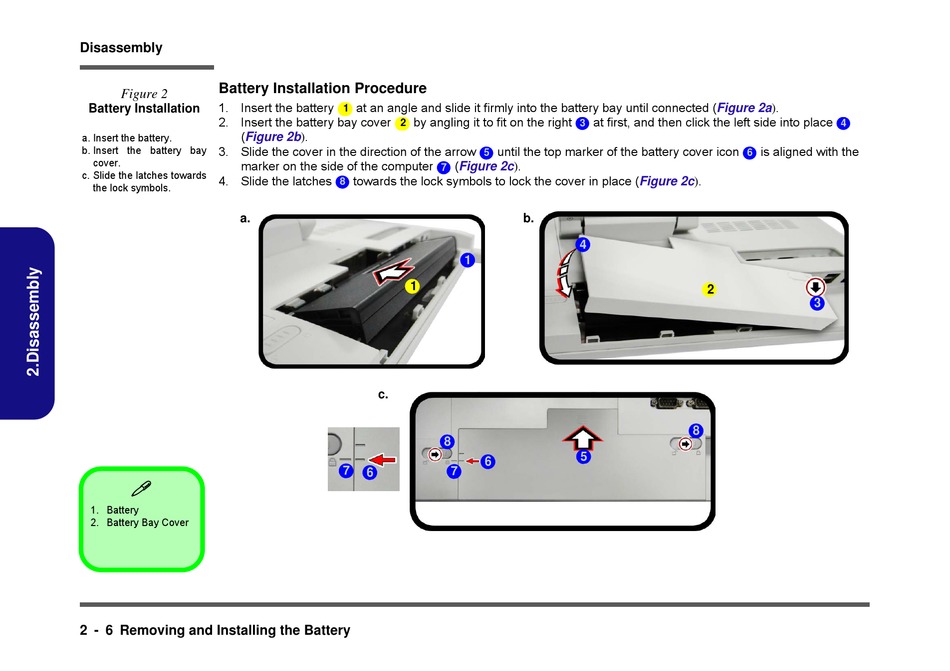

Battery Installation Procedure
Figure 2
1. Insert the battery
Battery Installation
2. Insert the battery bay cover
(Figure
a. Insert the battery.
3. Slide the cover in the direction of the arrow
b. Insert the battery bay
cover.
marker on the side of the computer
c. Slide the latches towards
4. Slide the latches
the lock symbols.
a.

1. Battery
2. Battery Bay Cover
2 - 6 Removing and Installing the Battery
